Emerson LC320EM9

8-3
A8AF1SCP1
NOTE:
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

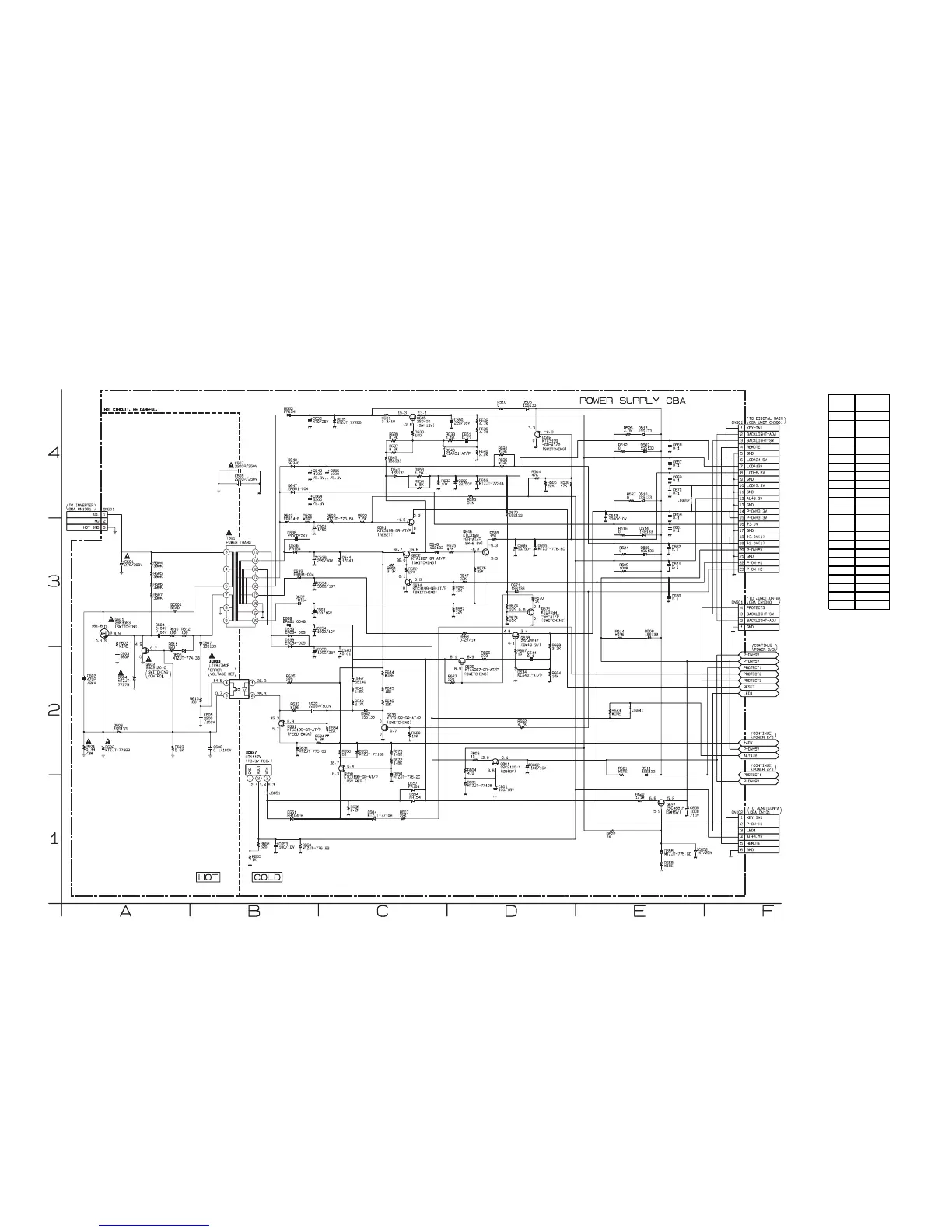

Power Supply 1/3 Schematic Diagram
CN301
13.3
23.2
33.2
43.3
50
6 23.5
7 13.1
8-6.9
90
10 3.4
11 0
12 3.4
13 0
14 3.4
15 3.4
16 3.3
17 0
18 3.4
19 3.4
20 5.2
21 0
22 3.3
23 3.2
VOLTAGE CHART
Pin No. Voltage
