Emerson LC320EM9

8-11

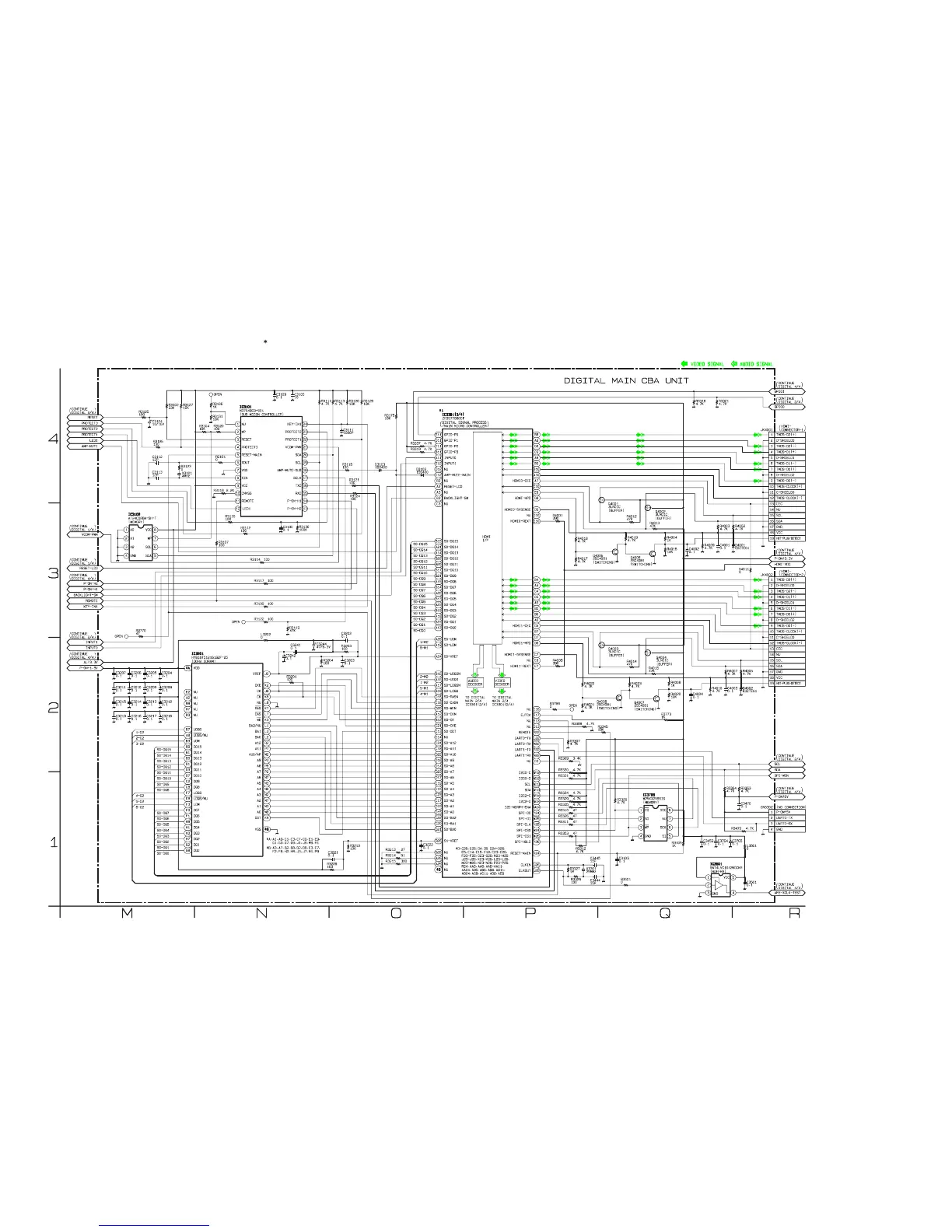

Digital Main 3/4 Schematic Diagram
A8AF1SCD3
1 NOTE:
The order of pins shown in this diagram is different from that of actual IC3301.
IC3301 is divided into four and shown as IC3301 (1/4) ~ IC3301 (4/4) in this Digital Main Schematic Diagram Section.
