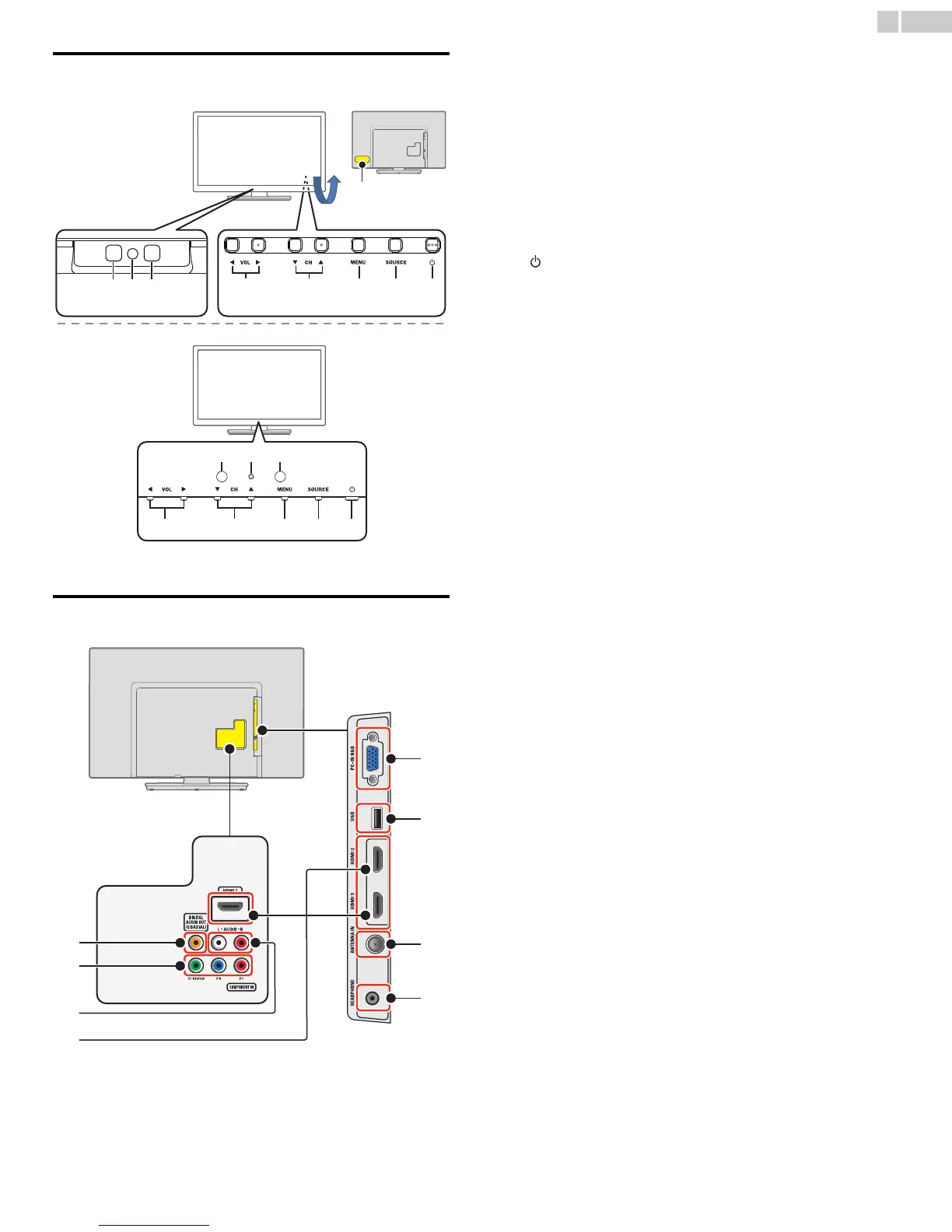

Control panel
a VOL ◄/►
Adjusts the Volume. In the Menu screen, moves the Cursor Left
(◄) / Right (►).
VOL ◄ : Volume Down
VOL ► : Volume Up
b CH ▲/▼
Selects a Channel. In the Menu screen, moves the Cursor Up (▲) /
Down (▼).
c MENU
Opens the Main On-screen Menu.
d SOURCE
Selects Connected devices.
e (POWER)
Turns the TV On and Off.
f Remote Control Sensor
Receives IR signal from Remote control.
g Power On / Standby Indicator
(On : no light, Standby : red)
h Ambient Light Sensor
Alters the brightness of the TV screen automatically by detecting
your room lighting level. Do not block this Light Sensor window to
allow proper operation. (Only - LF501EM4 / LF461EM4 /
LF391EM4 / LE391EM4 )
Te r m i n a l s
i Digital Audio Output jack
Digital Audio (S/PDIF) Output to home theaters and other Digital
Audio systems.
j Component (Y/Pb/Pr) / Composite Video (VIDEO) Input jacks
for VIDEO
Composite Video Input (VIDEO) jack is a shared jack with
Component Video Input (Y) jack.
k Analog Audio (L/R) Input jacks
Connect Analog Audio signals from;
– HDMI-DVI / Analog Audio (L/R) jacks signal
– Component Video / Analog Audio (L/R) jacks signal
– Composite Video / Analog Audio (L/R) jacks signal
– PC Connection / Analog Audio (L/R) jacks signal with Stereo mini
3.5mm plug Audio cable on PC
l HDMI Input jack(s)
Digital audio and video Input from high definition Digital devices
such as DVD / Blu-ray disc players, cable / satellite set-top boxes
PC’s.
m PC Input jack
VGA cable connection for PC.
n USB terminal
Data Input from USB Memory Stick only.
Do not connect any device to this terminal such as; Digital camera,
keyboard, mouse, etc.
o 75 ohm Cable / Antenna connection
Signal Input from an antenna or cable / satellite set-top boxes.
p Headphone Audio Output jack
Headphone 3.5mm stereo jack for personal listening.
edcba
fgh
edcba
f
hg
LF501EM4 / LF461EM4
LF391EM4 / LE391EM4 / LF320EM4 / LE320EM4 / LE290EM4 / LE240EM4
* When seen from the front.
*Keys on Rear.
Control Keys are
located on the Rear
side of the TV.
i
k
l
m
n
o
p
j
