Meter with direct
connection up to 100 A
(with 3-phase cut-o
device)
Main connection
terminals
1, 3, 4, 6, 7, 9, 10, 12
Additional
terminals

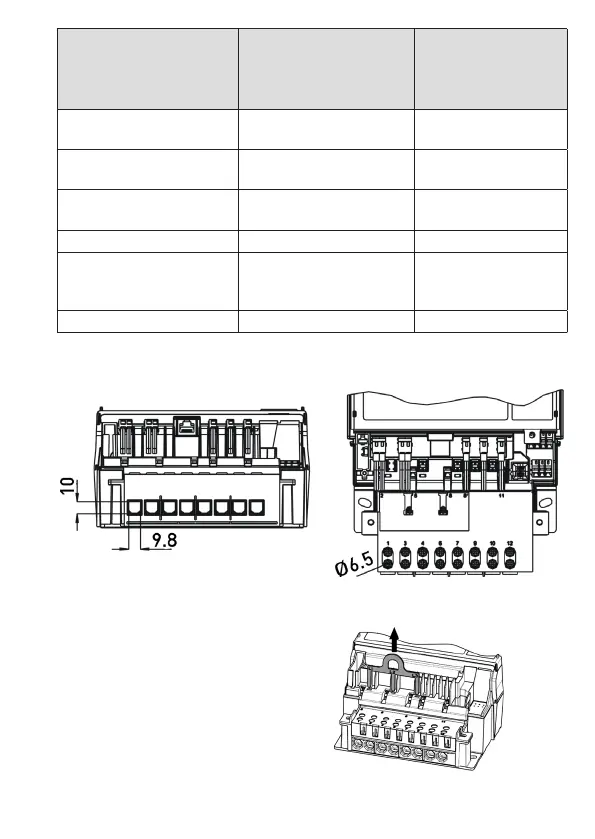

Terminal dimensions
W x H (mm)
9.8 x 10.0 2.6 x 2.2
Minimum connection
cross sections (mm²)
2.5 1.0
Maximum connection
cross sections (mm²)
35.0 2.5
Maximum torques (Nm) 3.5 ---
Screw type Screw with washer
assembly with slot and
Pozidriv PZ2 drive
Spring-loaded
terminals
Thread size M6 ---
* Rated connection capacity based on EN 60999-1
Path separator (accessory)
When testing meters, the voltage
circuits are disconnected by a path
separator
