10
Installation and start-up
The meter can be wall-mounted as per DIN 43857-2.
The following gures show the relevant dimensions for mounting the
meter, depending on the model involved.
Mounting the meter

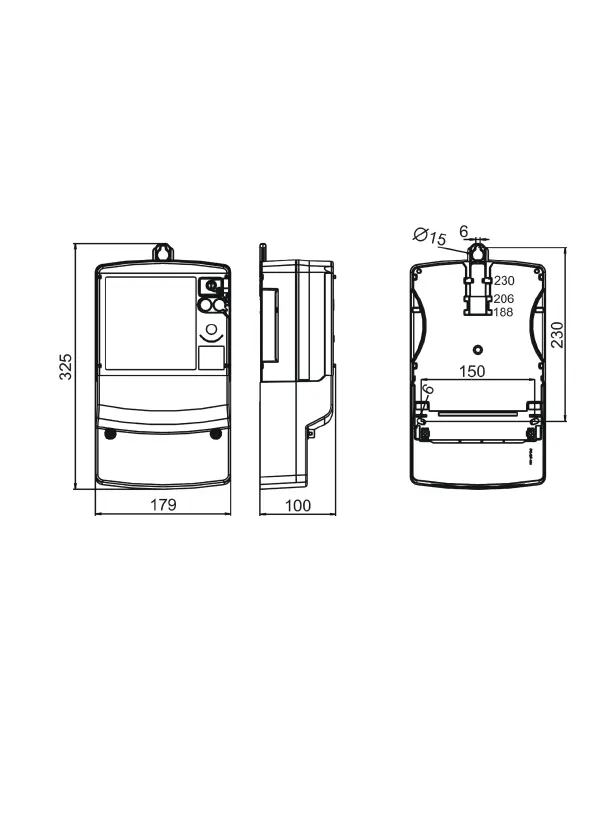

a) Meter with short terminal cover
Dimensions in mm
