EMI VCH Series - ELECTRICAL SPECIFICATIONS AND DIMENSIONS; Unit Specifications and Diagrams

Made in Rome, New York, USAComfort Where It Counts 6
VCH
23.875”18.75”
32”

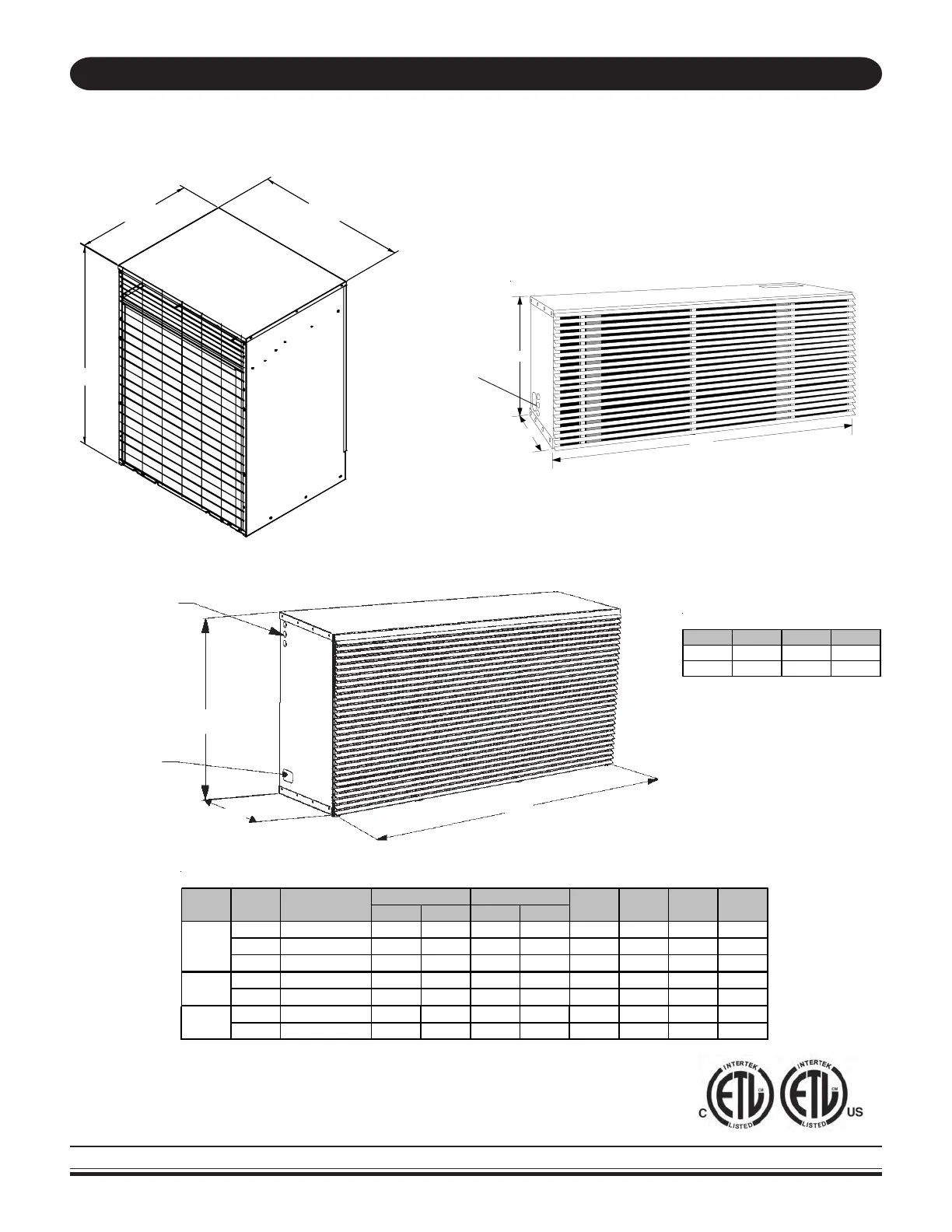

ELECTRICAL SPECIFICATIONS AND DIMENSIONS
NOTE: Due to ongoing development programs, product design, specifications, and performance data may change without notice. Please contact
the factory for more information.
UnitABC
24 40" 16" 24"
30 48" 16" 24"
HCH DIMENSIONS
ELECTRICAL SPECIFICATIONS
Amps HP RLA LRA
18 208/230/60/1 1.9 0.25 7.4 48 9.3 197 11.2 15
24 208/230/60/1 1.9 0.25 9.6 60 11.5 197 13.9 20
30 208/230/60/1 1.9 0.25 11.8 73 13.7 197 16.7 25
18 208/230/60/1 0.72 0.125 7.4 48 8.12 197 10.0 15
24 208/230/60/1 0.72 0.125 9.6 60 10.32 197 12.7 20
24 208/230/60/1 1.8 0.125 11.7 59 13.5 197 16.5 25
30 208/230/60/1 1.8 0.125 15.0 73 16.8 197 20.6 30
HCA
HCH
Comp Total
Amps
Unit
Model Volts/Hz/Phase
Fan HACR
BRKR
VCH
Min.
Volt
MCA
Knockout For Tubing
(This End Only)
Knockouts For Electrical
(This End Only)
HCH
C
B
A
Knockouts For
Electrical
(This End Only)
42"
16"
16"
HCA
VCH
HCH
Only
