Eminent AB7811 - Panel Descriptions

3
|
ENGLISH
2.0 Panel Descriptions

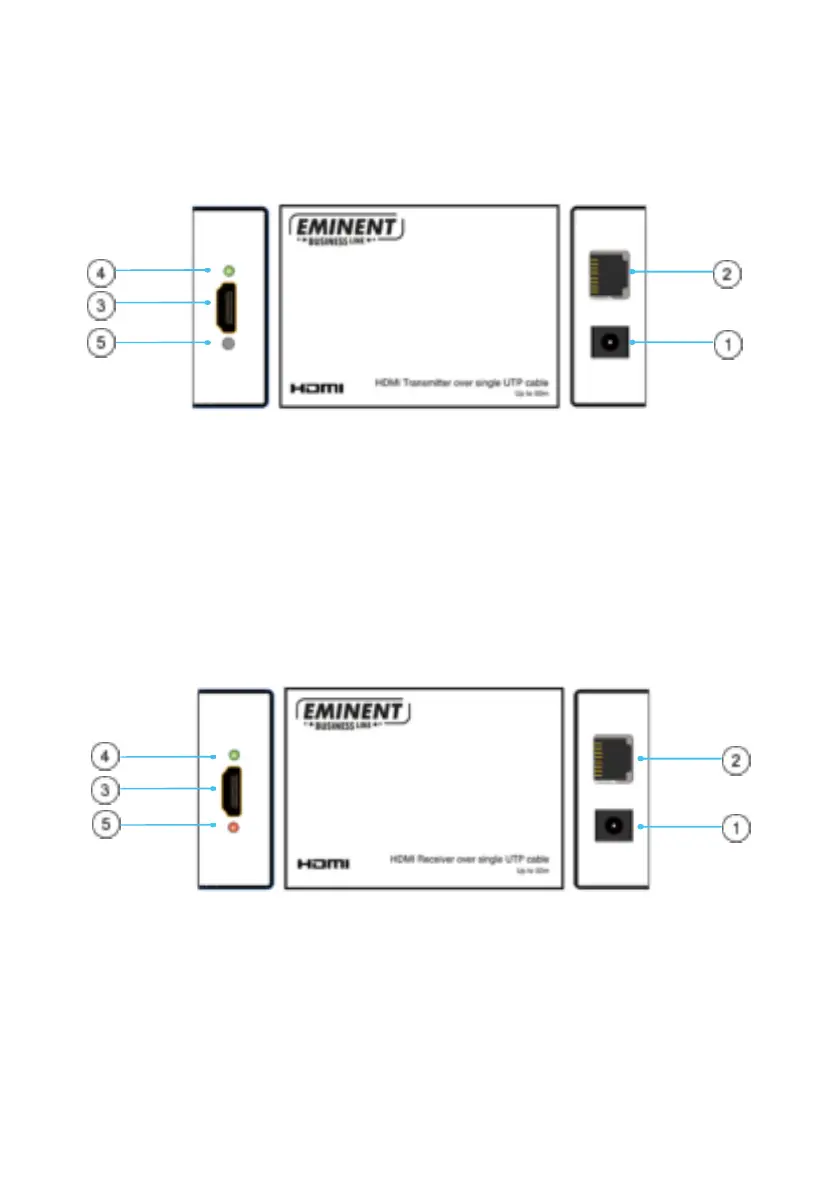

Transmitter Panel
1. DC5V Power
2. Cat RJ45 output port
3. HDMI input ( Source )
4. Connection indicator
5. EDID
Receiver Panel
1. DC5V Power.
2. HDMI output. ( Receiver )
4. Cat5e/6 RJ45 input port.
5. Connection indicator.
6. Power indicator.
