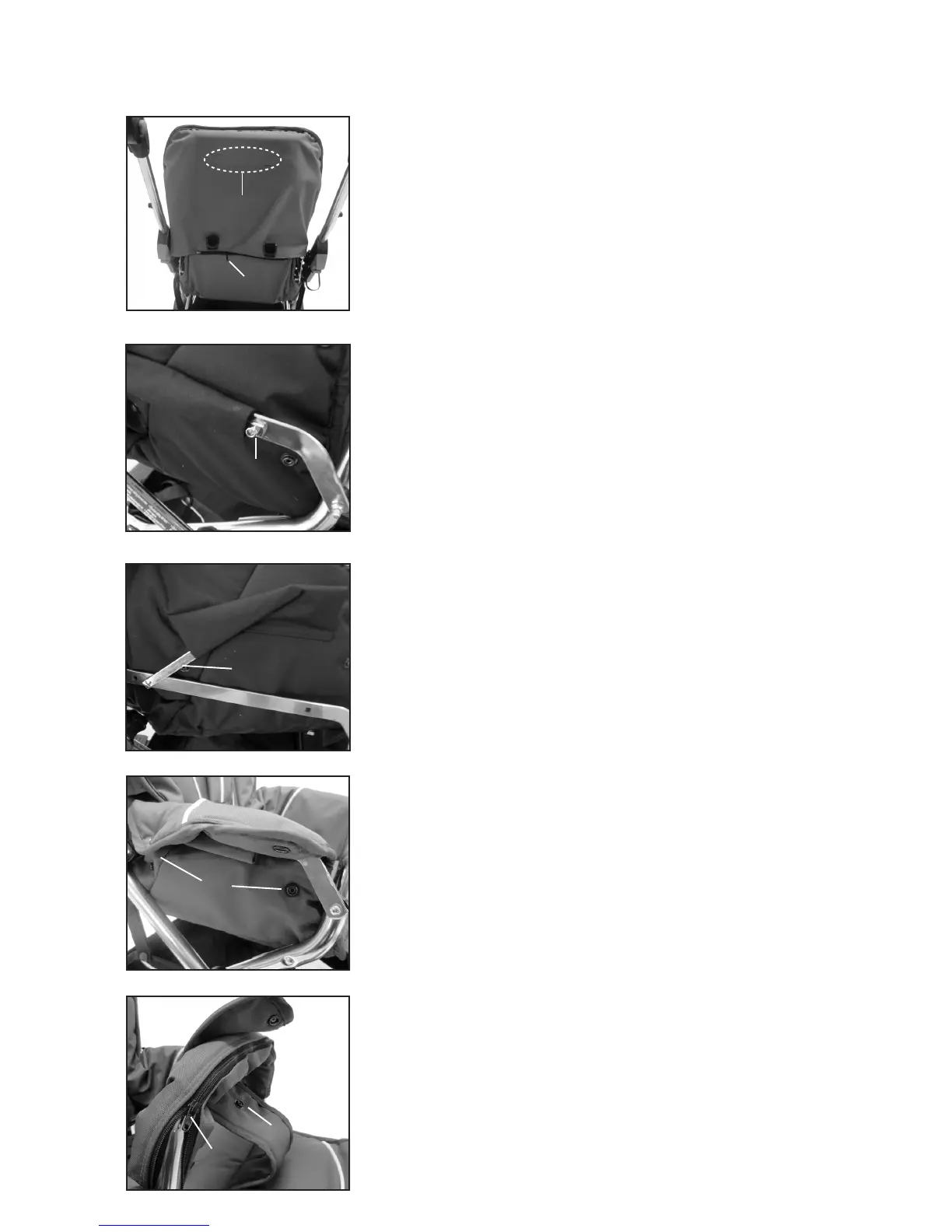

Assembling the vehicle
• Make sure that the seat fabric’s back pocket is attached correctly
onto the backrest frame. Attach the pocket using the Velcro tape on
the inside (11).
• Snap on the zip-fastener (12). This step is very IMPORTANT!
WARNING
• Always make sure that the backrest is in a safe position before it is
used. This step is very IMPORTANT.
Removing the fabric
• Steps 7 to 9 are assembled at the factory and only need to be ex-
ecuted if the entire fabric is to be removed from the vehicle.
In case of dressing proceed through stages 7 to 9 in reverse order.
• Unscrew the nut (13).
• Unthread the metal bar from the pocket (14).
• Press both fabric armrests into position (15) over both sides of the
seat unit. Two press studs on each side.
Assembly of the front bar
• Place the front bar protection cover (16) over the front bar and
close the zip fastener.
• Fasten the crotch strap (17) around the front bar.
