Emmaljunga Scooter 4 - Assembling the Vehicle - Continued; Hood and Footrest Fabric Assembly; Mudguard Assembly

11
21
22
25
23
24
20
18
19
13
14
15
12
41
Manual Scooter 4 / Scooter 4 S v. 4.7
English
Assembling the vehicle

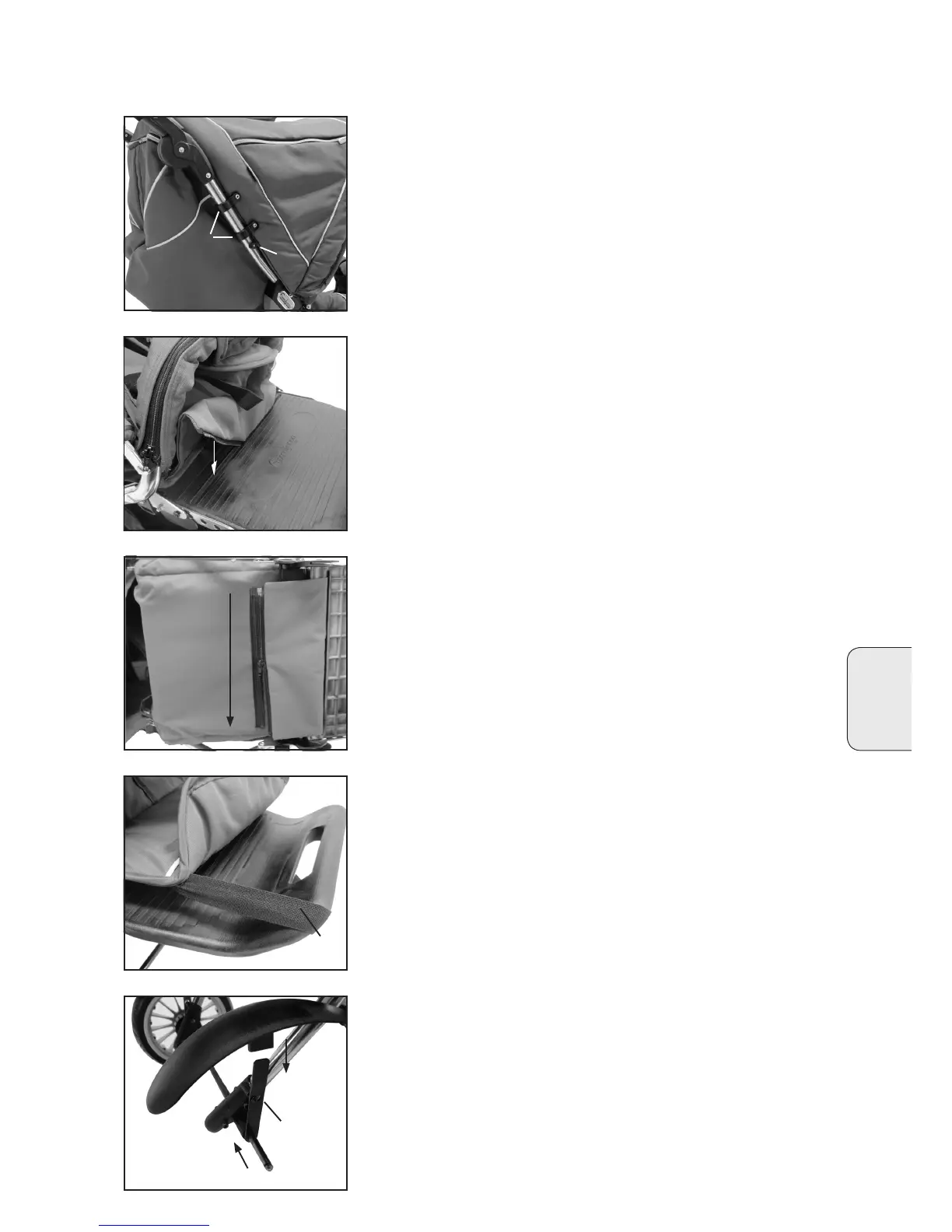

Assembly of the hood
• Afx the hood clips (18) above the plastic stud (19) on the handle.
Note
• If the hood is moved up and down on the handlebar legs scratches
can occur on the paint. Keep the handlebar legs clean from dirt and
dust.
Assembly of the footrest fabric
• Press the part of the fabric with the zip fastener through the ope-
ning in the footrest (20).
• Afx the zip fastener (21) under the seat.
• Afx the elastic band (22) round the footrest.
Assembly of the mudguards (Not on the Scooter S AIR)
• Thread the mudguard holders onto the axles with the inclination
facing away from the vehicle (23).
• Tighten the screw (24).
• Afx the mudguard (25).
