Assembly and usage of the chassis

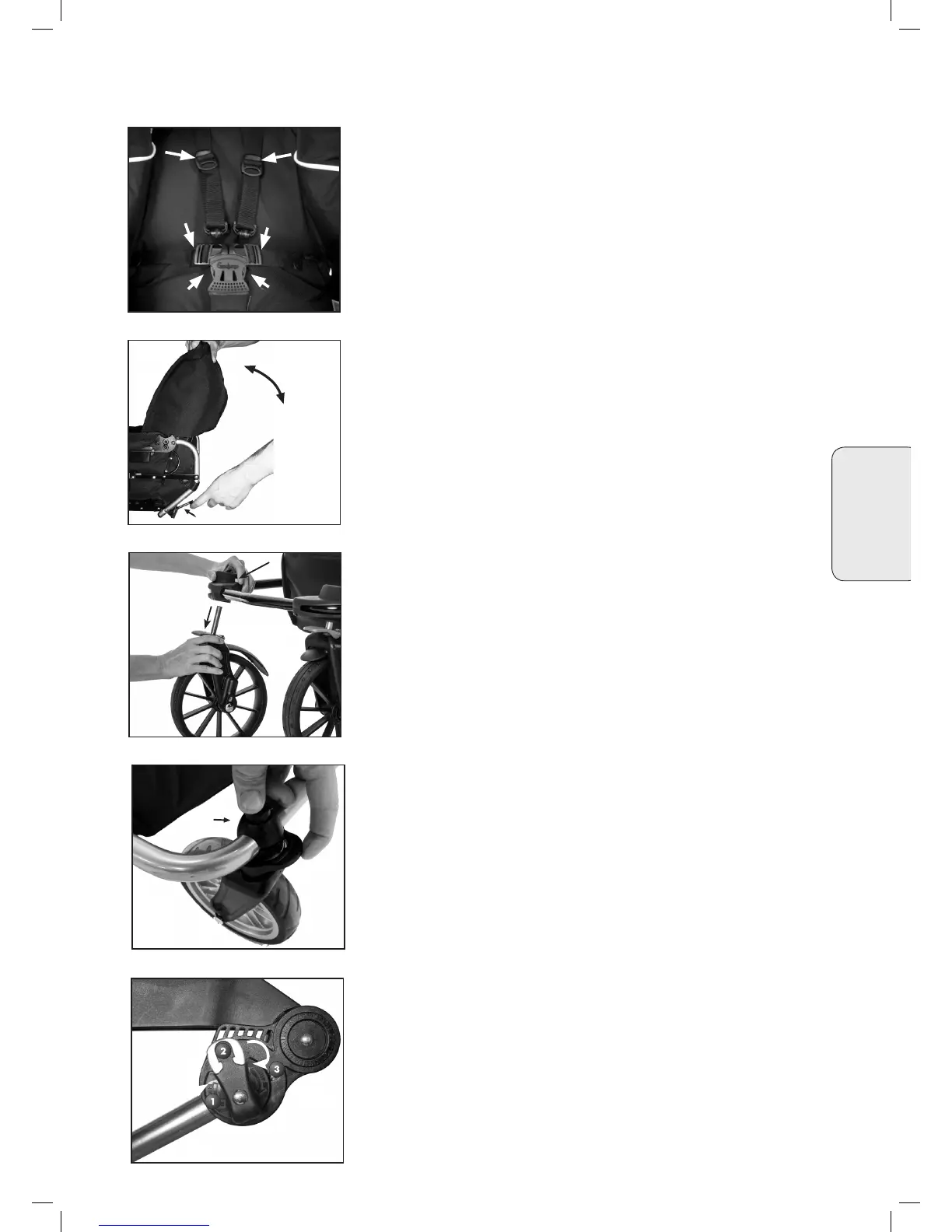

Adjust the 5-point harness
• Bring crutch strap (22) forward between the child’s legs and up
toward front of waist. Insert the waist straps (23) into the harness
buckle until they “click” in place. Make sure waist straps are faste-
ned.
• Adjust all sliders (24) on the waist and shoulder strap so that the
straps ts tight around the child.
• To release shoulder and waist straps, press the buttons (25) in the
centre of the harness buckle.
• Attachment points are provided at the ends of each waist strap for a
separate harness complying with BS 6684
WARNING!
• Always use the harness when the child is placed in the vehicle.
Make sure that all buckles are tted into position and that the har-
ness is attached to the vehicle’s D-rings.
The front wheel can be xed or swivel 360 degrees.
• The wheels are xed by pressing the locking ring (29) down.
• The wheels can rotate freely 360 degrees by pulling the locking ring
up.
Adjusting the backrest
• The seat backrest is adjustable by moving the seat adjustment
lever (26) located at the bottom behind the seat, toward backrest.
WARNING!
• Once in desired position, push on backrest to ensure a locked
position.
Emmaljunga Adjustable Comfort System
• To maximize the comfort for the child you can choose different tilts on
the pram body/seat unit.
How to use the adjustable tilt of the pram
• The adjustable tilt on the chassis enables you to select different tilts on
the pram body/seat unit.
• The tilt may be adjusted into three different positions.
1. Low
2. Medium
3. High
Removing front wheels from cahssis.
(Only for chassis with removable front wheels.)
• Depress the release button (27) and pull out the front wheel (28) .
