Emmaljunge Double Viking - Assembly and Usage of Chassis

60
Manual Double Viking v. 2.7
5
5a
3
5
1
3
2
1
2
4
4
6
7
Assembly and usage of chassis
WARNING
Make sure that children are kept away from moving parts when
assembling the pram, otherwise they might be at risk of injury.

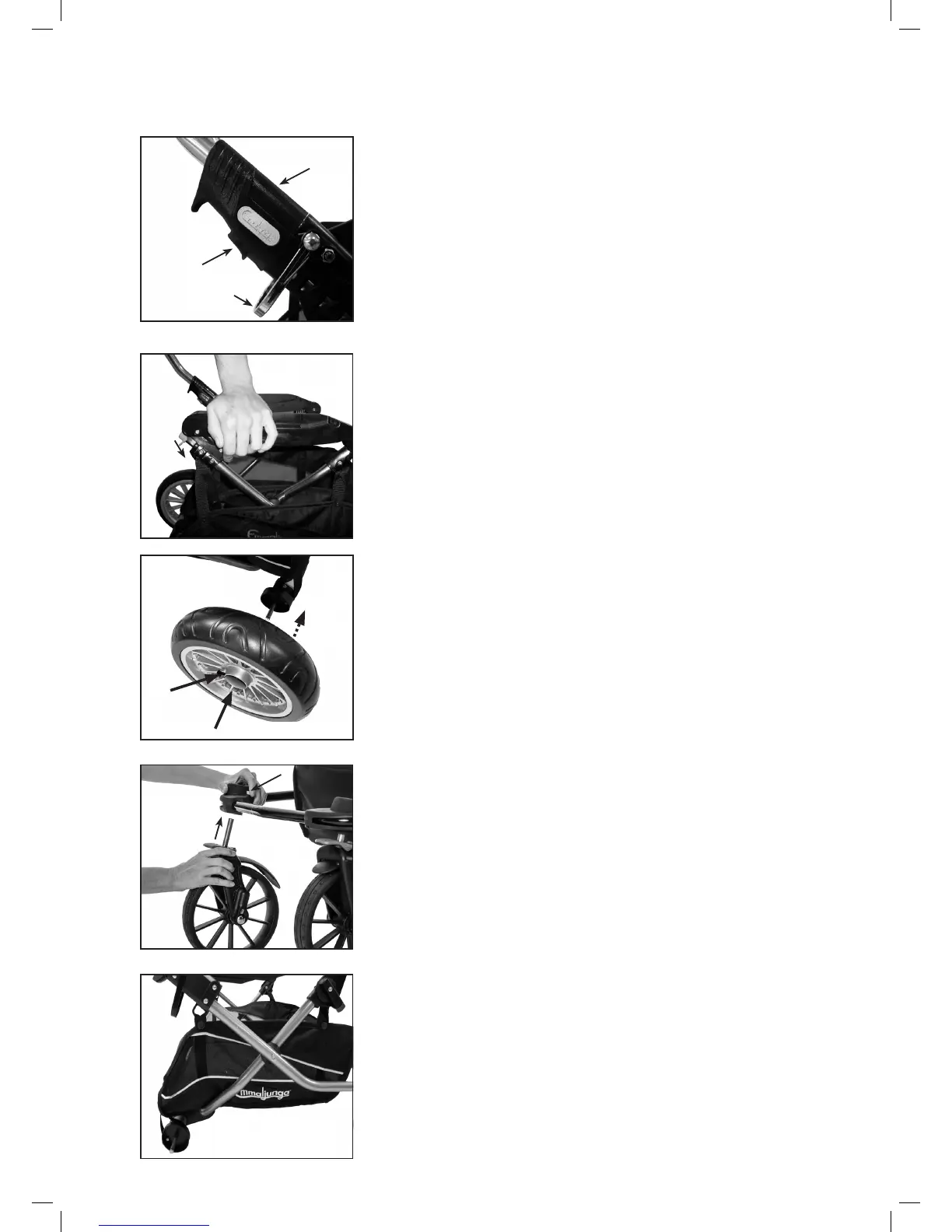

Unfolding the chassis
• Apply the brake on the pram. To unfold the chassis, pull the handle
upwards, whilst holding down the side of the chassis.
WARNING
• Always make sure that the main locking device (2) and the button
(3) on both sides clicks into locked position .
• Before use always make sure that both main locking devices and
the center locking device are in locked position.
• Always make sure that the center locking device are locked into
position by pressing down on the center plastic part.
This step is very important!
Attaching the wheels
• Remove the plastic protection from the axles. Save them for future
use.
• Release the brake by pushing the brake bar upwards using mini-
mum force with your foot.
• Press in the hub cap’s release button (5 or 5a), push the wheel onto
the axle as far as it can go. Release the button and pull the wheel
towards you, until you hear a denite click. Repeat the same proce-
dure for both rear wheels. Make sure that the wheels are attached
properly and cannot be pulled off the axle.
IMPORTANT
• The wheels are greased and can leave marks on textiles. Please
use wheel protection indoors to protect your oors.
• Risk of suffocation. Don’t let your child play with or in some other
way handle the plastic protectors.
• Attach the shopping tray to the chassis according to the included
instruction.
Attaching the front wheels to chassis.
(Onlyforchassiswithremovablefrontwheels.)
• Depress the release button (6) and push the front wheel in place
(7).
Important.
• Before use, always make sure that the front wheels are correct
mounted to the chassis.
