4
Installation Instructions
For more information please call us on 01993 824900 or view our website at www.emmeti.co.uk
CS-17 Zona Touch - Touchscreen Programmable Thermostat

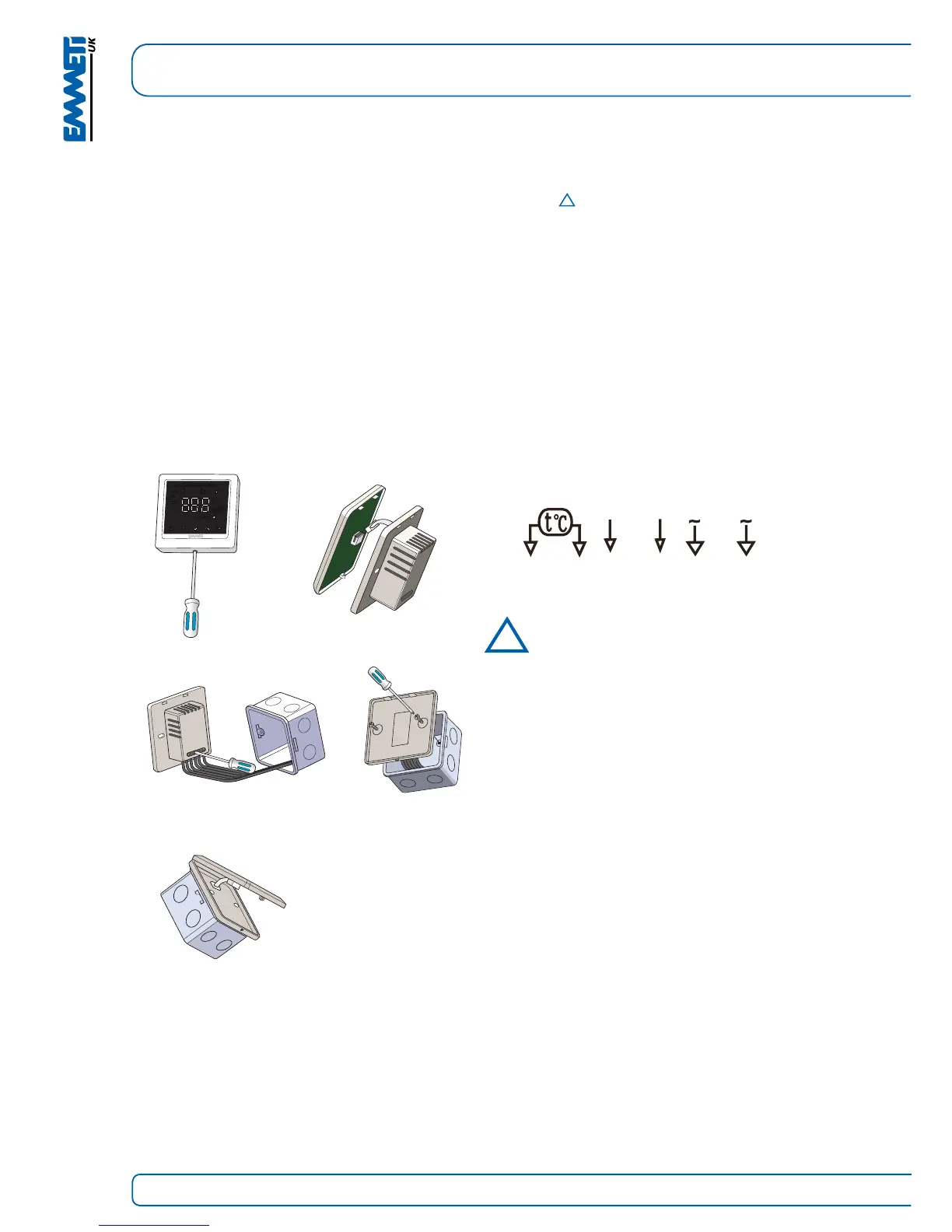

Installation and Wiring
1. Use a small cross head screwdriver to remove the lower
fascia retaining screw.
2. Carefully separate the fascia from the back plate. Unplug
the ribbon connector which is plugged into the fascia of
the thermostat.
3. Connect to electrical supply as shown in figure 6.
4. Screw the thermostat back plate onto a flush mounting
back box (min 35mm)
5. Re-connect the thermostat ribbon cable and tighten the
retaining screw.
Warning
!
1. Please ensure that the electrical wiring of the installation
and connections to and from the thermostat and any
remote sensor connected to it are in accordance with
BS7671, the latest edition of the IET Wiring Regulations.
2. The thermostat must be wired to the electric mains
through a switch capable of disconnecting all poles
compliant with the current safety standards and with a
contact separation of at least 3mm in all poles.
3. Before commencing work on the installation, the
electricity supply must be disconnected.
4. The depth of the back box should be 35mm minimum.
Wiring Diagram
123456
SWL
Sensor
Remote
out
used
L
Not
Neutral
230V AC
N
~
~
Wiring Diagram
!
This product should be installed by a qualified
electrician
Fig. 1. Fig. 2.
Fig. 3. Fig. 4.
Fig. 5.
Fig. 6.
