GB | Entry Code Keypad
Description:
(see Fig. 1)
1 – Relay activation indicator
2 – Status indicator
3 – Keypad
4 – Fastening screw

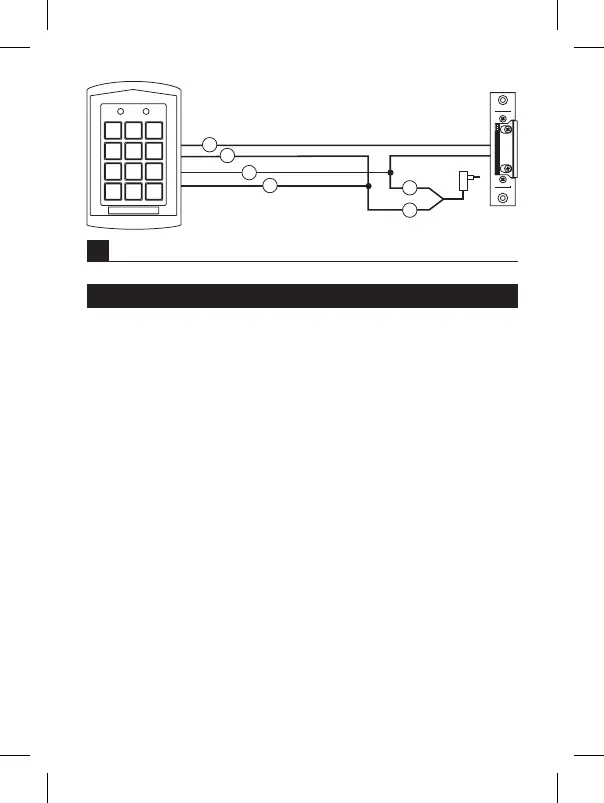

Installation:
(see Fig. 2)
Description of Functions:
Zone 1: (relay 1 – primary)
– Used only for controlling the switching relay.
– Addresses 000–999 (1,000 codes).
Zone 2: (relay 2 – secondary)
– Used for controlling the 2nd switching relay or as a doorbell button (switchable
functions).
– Addresses 00–09 (10 codes).
„Doorbell“ Function:
When the „doorbell“ mode is active, pressing the asterisk key activates a ringing contact.
Alarm:
Keypad contains a sensor which triggers an alarm sound in case someone attempts to
rip the keypad from the wall.
Programming and Settings:
1. Entering Programming Mode
Enter programming mode by entering the code twice. The default code is 1234 (i.e.
you must enter 12341234 to access programming mode). You will hear a long beep
and an orange diode will light up upon entering the code.
4
1
2
3
4
5
6
7
8
9
*
0
#
FAB
ASSA ABLOY
FAB
ASSA ABLOY
9
+
-
10
1
2
