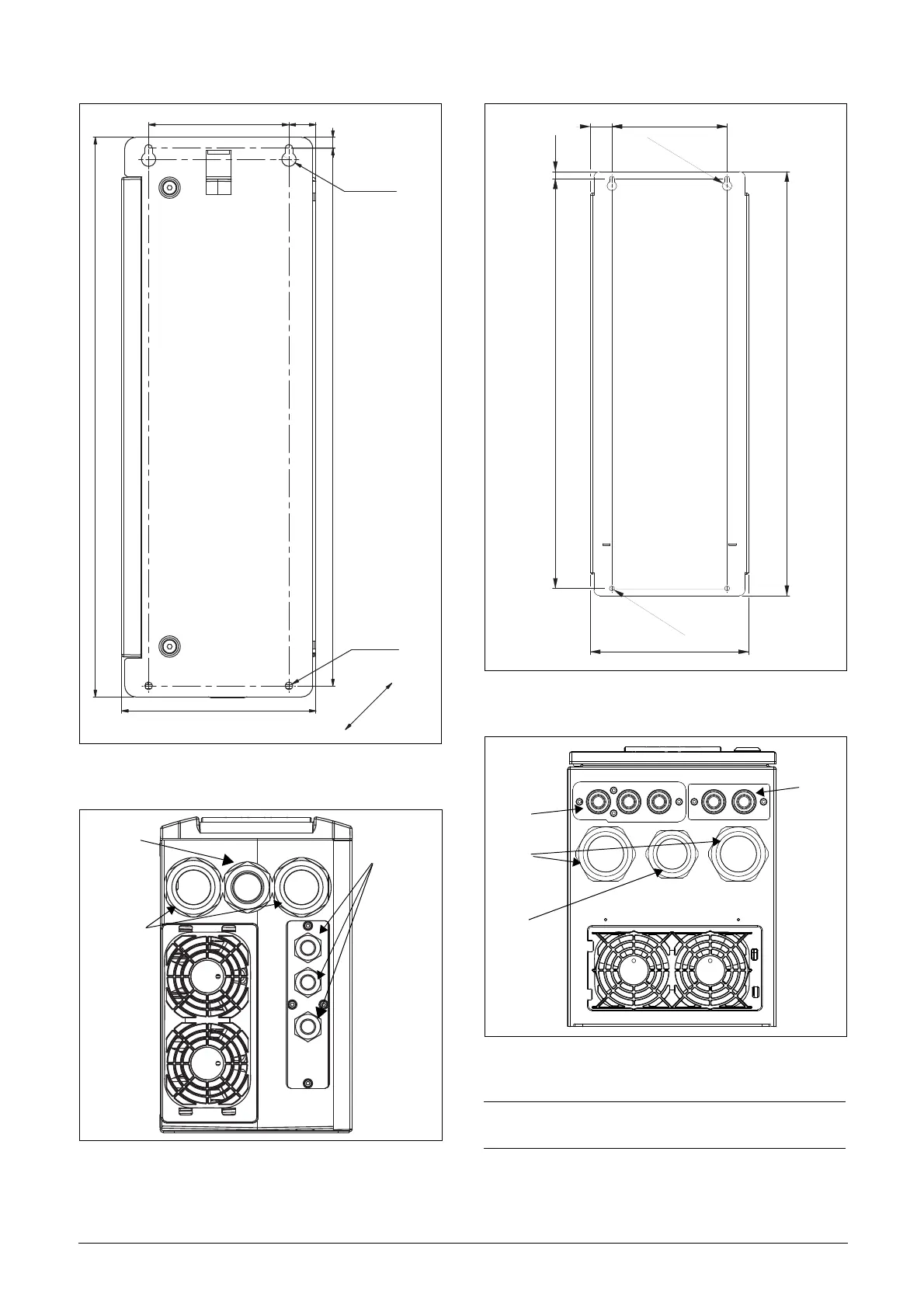

Fig. 8 FDU48/52: Model 026 to 046 (C)
Fig. 9 Cable interface for mains, motor and communication,
FDU48/52: Model 026 to 046 (C)
Fig. 10 FDU48/52: Model 061 to 074 (D)
Fig. 11 Cable interface for mains, motor and communication,
FDU48/52: Model 061 to 074 (D).
292,1
512
128,5
10492
24,8
178
Ø7 (4x)
Ø13 (2x)
Gland
M25 (026-031)
Glands
M20
Glands
M32 (026-031)
M32 (037-046)
M40 (037-046)
NOTE: Glands for size B, C and D are available as
option kit.
10570
220
30 160
Ø 13 (2x)
Ø 7 (4x)
590
Glands
M20
Glands
M20
Glands
M50
Glands
M40
