Emotron FDU 2.0 - Cabinet Mounting Guidelines

14 Mounting CG Drives & Automation, 01-5325-01r1

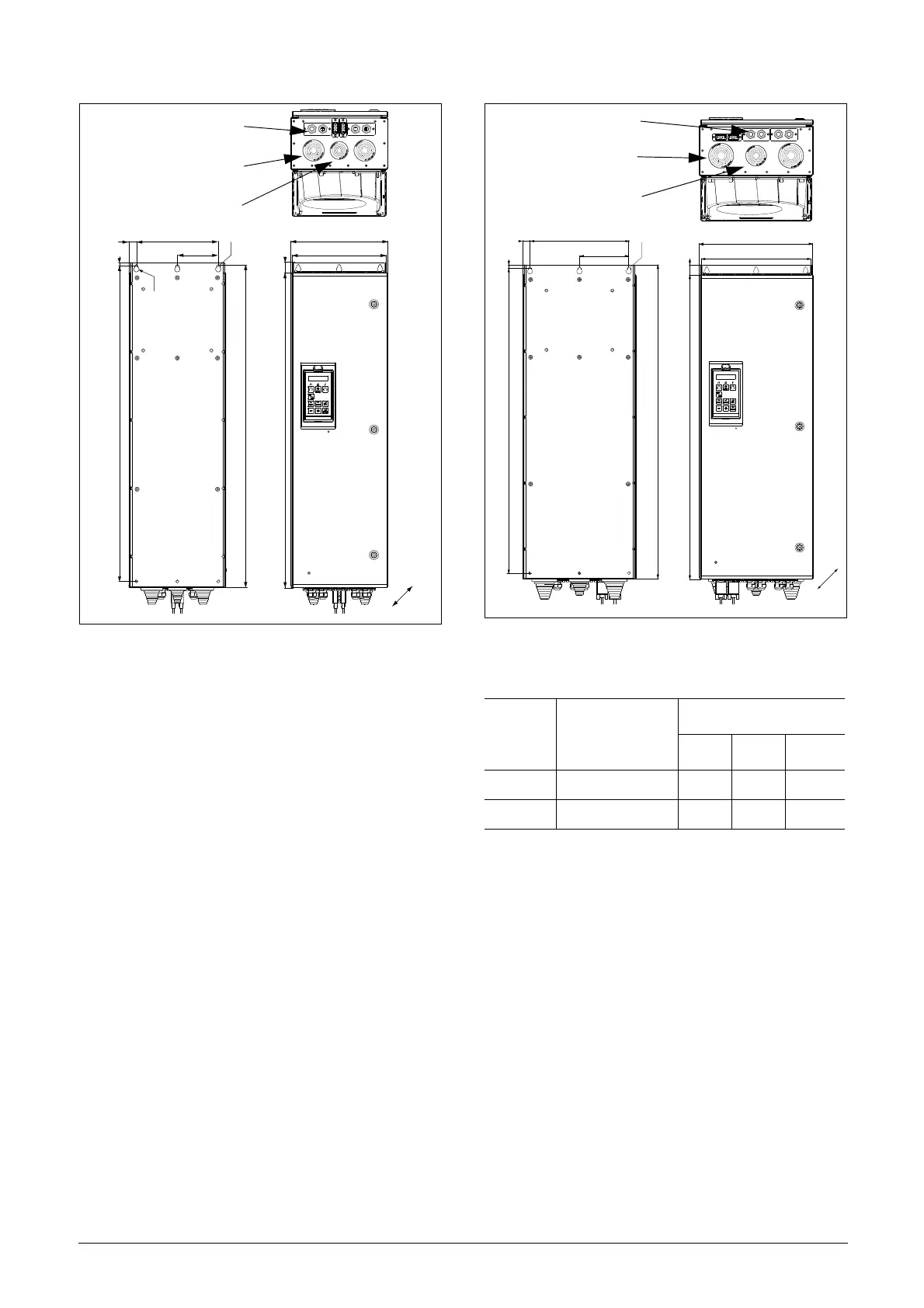

Fig. 12 FDU48: Model 090 to 175 (E) including cable inter-
face for mains, motor and communication
Fig. 13 FDU48: Model 210 to 250 (F)
FDU69: Model 90 to 200 (F69) including cable
interface for mains, motor and communication
Ø9(6x)
Ø16(3)
314
240
120
22.5
275
10
30
284.5
925
952.5
922.5
Cable glands M20
Cable flexible leadthrough
Cable flexible leadthrough
Ø17-42 /M50
Ø11-32 /M40
Frame FDU model
Dimension in mm
AB C
F 210 - 250 925 950 920
F69 90 - 200 1065 1090 1060
314
Ø9(x6)
300
150
22.5
344.5
335
AB
C
10
30
Cable glands M20
Cable flexible leadthrough
Cable flexible leadthrough
Ø23-55 /M63
Ø17-42 /M50
