2.3 Cabinet mounting
2.3.1 Cooling
If the variable speed drive is installed in a cabinet, the rate of
airflow supplied by the cooling fans must be taken into
consideration.
2.3.2 Recommended free space in
front of cabinet
All cabinet mounted AC drives are designed in modules, so
called PEBBs. These PEBBs can be folded out to be
replaced. To be able to remove a PEBB in the future, we
recommend 1.30 meter free space in front of the cabinet, see
Fig. 14.

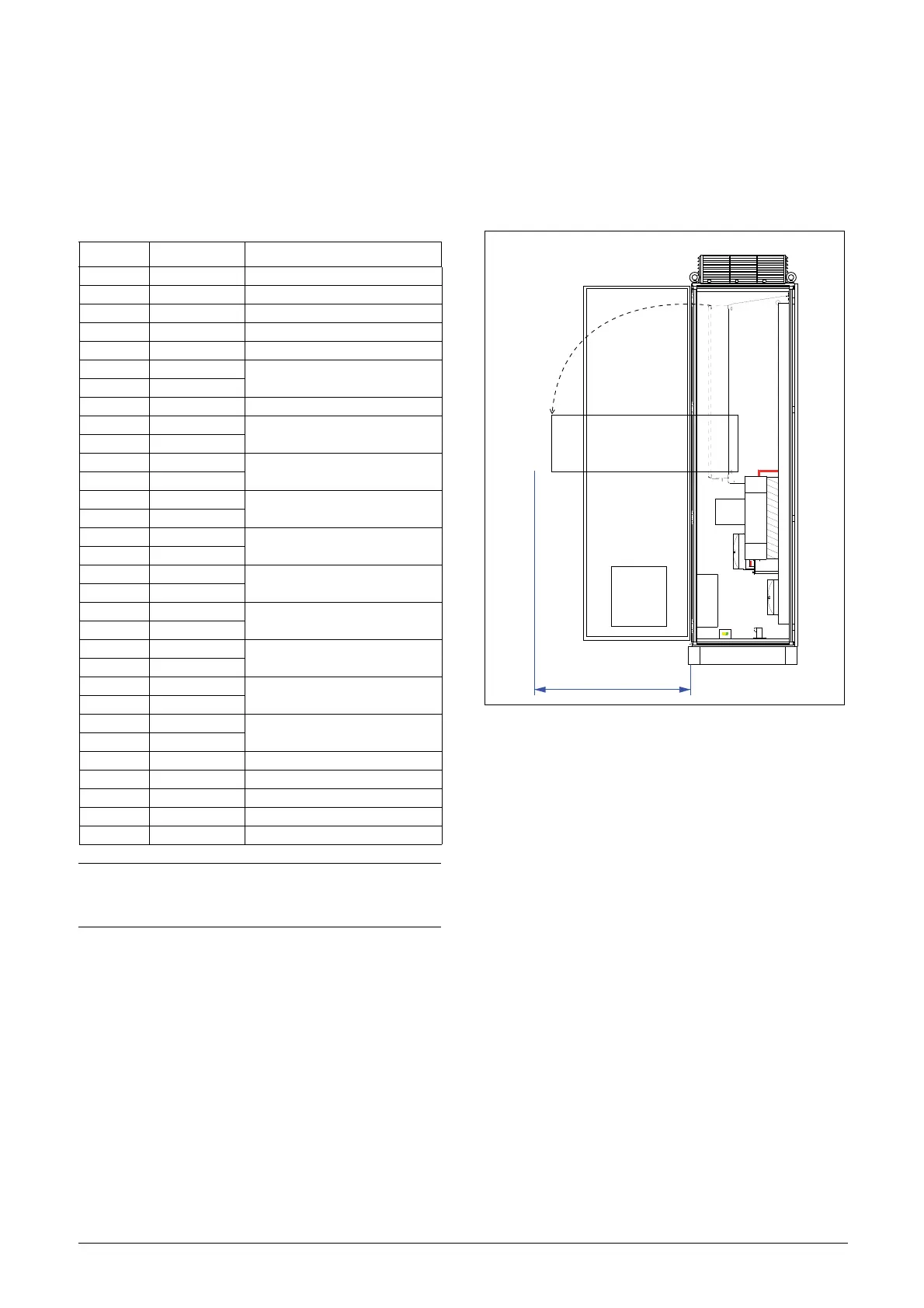

Fig. 14 Recommended free space in front of the cabinet
mounted AC drive
Frame FDU Model Flow rate [m
3
/hour]
B 003-018 75
C 026 – 031 120
C 037 - 046 170
D061-074 170
E090 - 175 510
F 210 - 250
800
F69 090 - 200
G 300 - 375 1020
H 430 - 500
1600
H69 250 - 400
I 600 - 750
2400
I69 430 - 595
J 860 - 1K0
3200
J69 650 - 800
KA 1K15 - 1K25
4000
KA69 905 - 995
K 1K35 - 1K5
4800
K69 1K2
L1K75
5600
L69 1K4
M2K0
6400
M69 1K6
N2K25
7200
N69 1K8
O2K5
8000
O69 2K0
P69 2K2 8800
Q69 2K4 9600
R69 2K6 10400
S69 2K8 11200
T69 3K0 12000
NOTE: For the models 48-860/69-650 to 69-3K0 the
mentioned amount of air flow should be divided equally
over the cabinets.
