Connecting the cooktop to the main power supply
The power supply should be connected in compliance with the relevant standard, or a

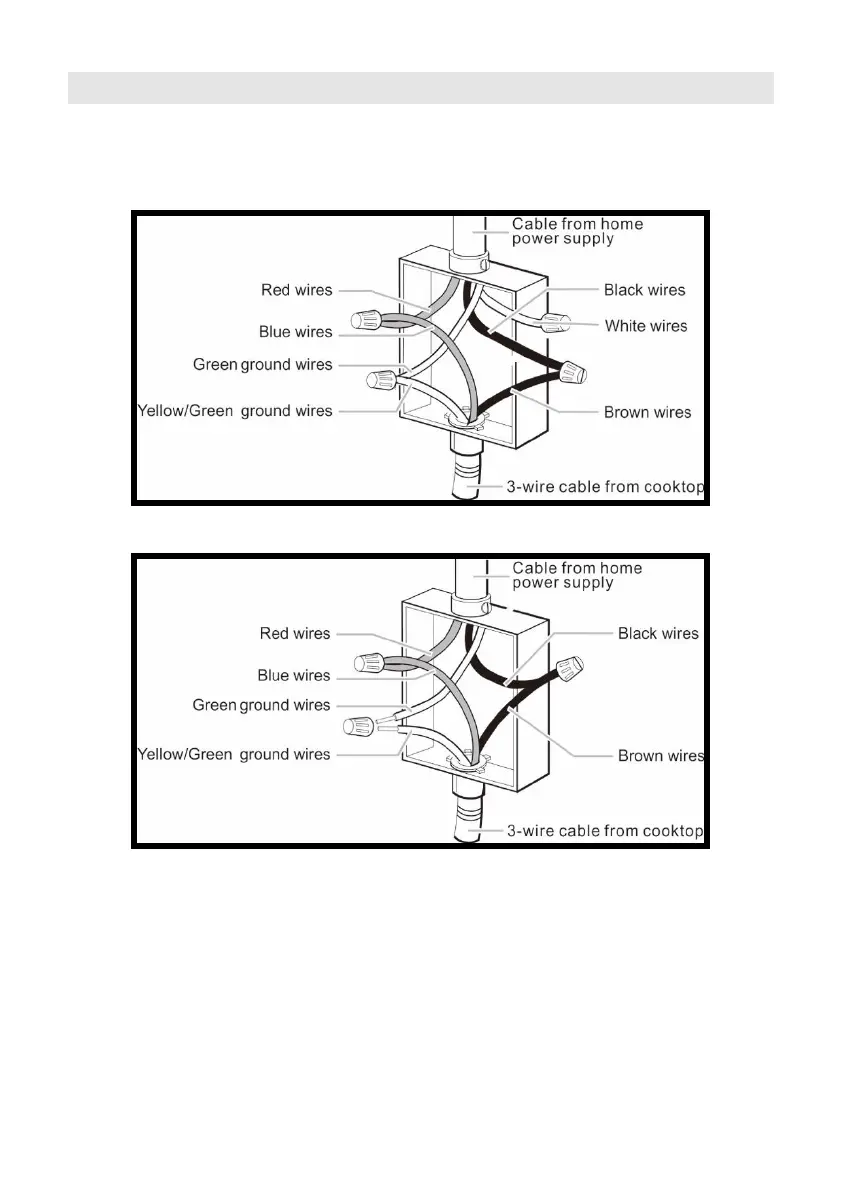

single-pole circuit breaker. The method of connection is shown as below.
For 4-wire cable from home power supply
For 3-wire cable from home power supply
If the cable is damaged or needs replacing, this should be done by an after-sales
technician using the proper tools, so as to avoid any accidents.
• If the appliance is being connected directly to the mains supply, an omnipolar circuit
breaker must be installed with a minimum gap of 0.12in between the contacts.
• The installer must ensure that the correct electrical connection has been made and
that it complies with safety regulations.
• The cable must not be bent or compressed.
• The cable must be checked regularly and only replaced by a proper qualified person.
