Step 5(c): Line-side tap solar

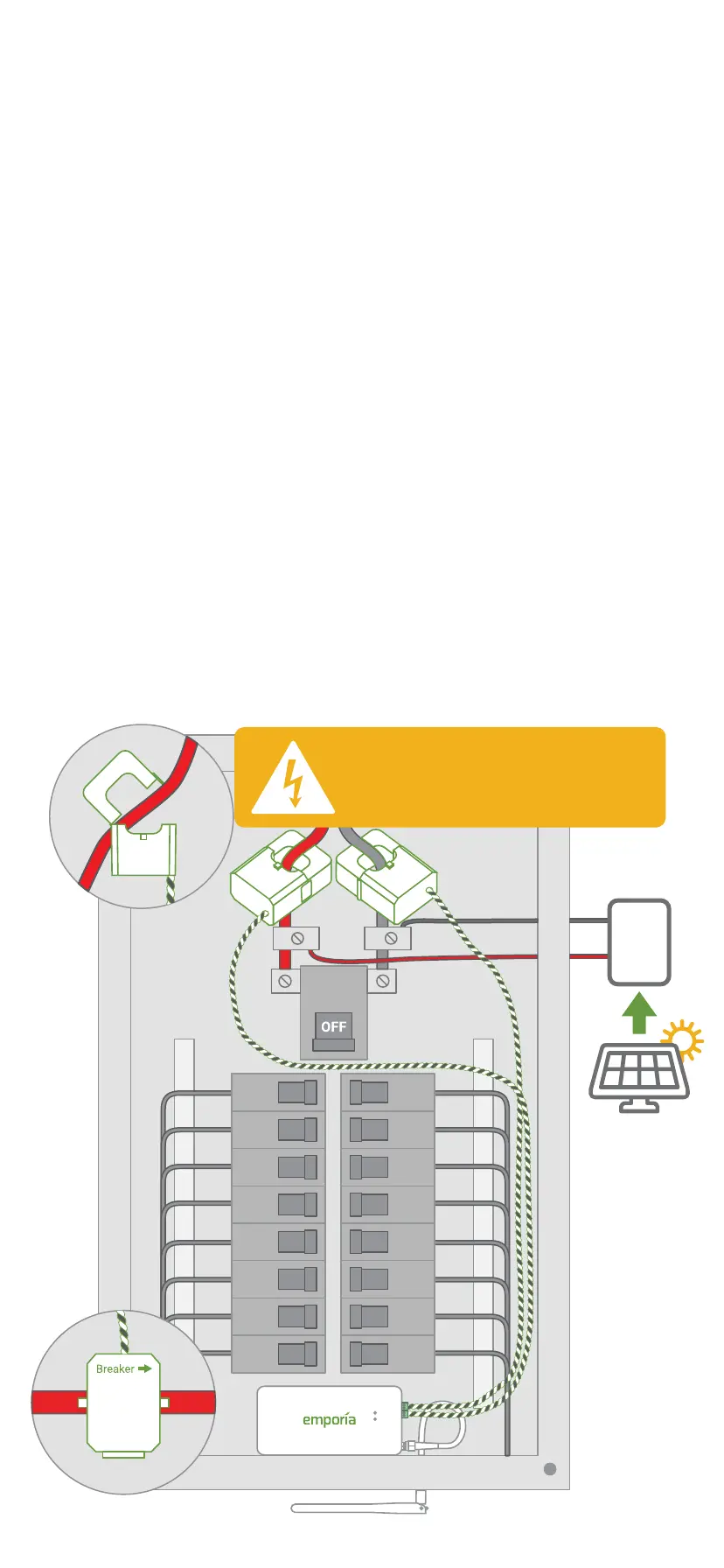

Main CT installation

Open the clasps on the CTs and place each

clamp around one of the main service cables

between the utility meter and incoming

line-side inverter taps. Then, shut the clasps

to secure the CTs. IMPORTANT! The Breaker

→ imprint on the bottom of the CTs should

point toward the breakers. Finally, insert the

screw terminal plugs into the ports on the

right side of the monitor. To avoid clutter,

unscrew the 22 AWG wires from the screw

terminals, cut them to size, and reattach

them ensuring the black and white wires

match the icons on the front of the Vue.

DANGER: The service

mains are energized!

Inverter

Solar Panels

Breakers

Meter
