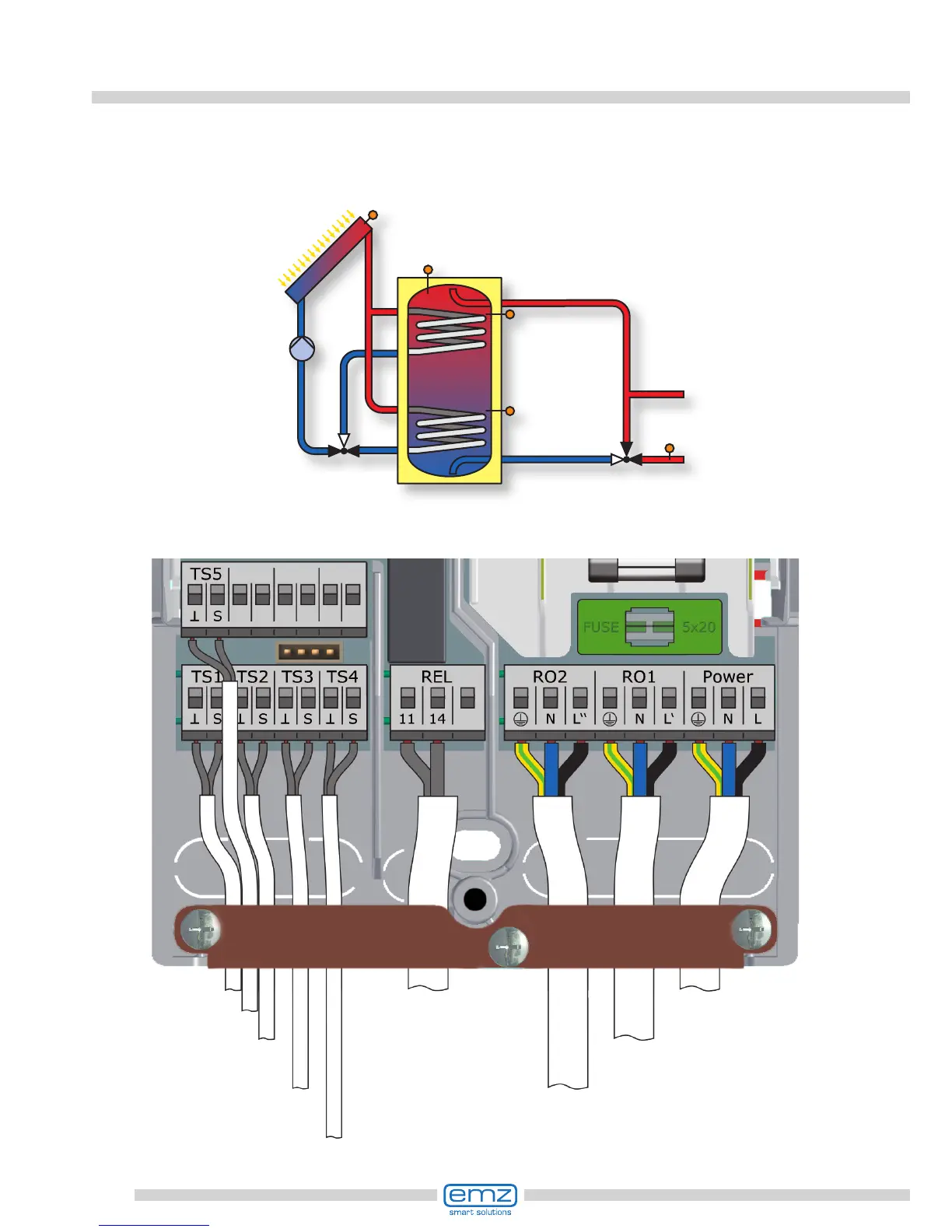

Hydraulic system 24
Tank sensor 1, top
Connection to
power supply
Collector sensor 1
Solar circuit pump 1
Tank sensor 1, bottom
Return line sensor
Charging area valve
Tank sensor return line
Three-way valve,
return temperature
increase. Connection
according to page 16
TS3
TS1
RO1
Tank 1
T1
Collector sensor 1
Solar
circuit
pump 1
Tank sensor 1,
top
TS2
Tank sensor 1,
bottom
Return
line sensor
Three-way valve, return
temperature increase
RO3
RO2
Charging area valve
TS5
Tank sensor
return line
TS4
