5 - INSTALLATION - CONNECTION - SETTINGS
TROUBLESHOOTING
5.1 INSTALLATION

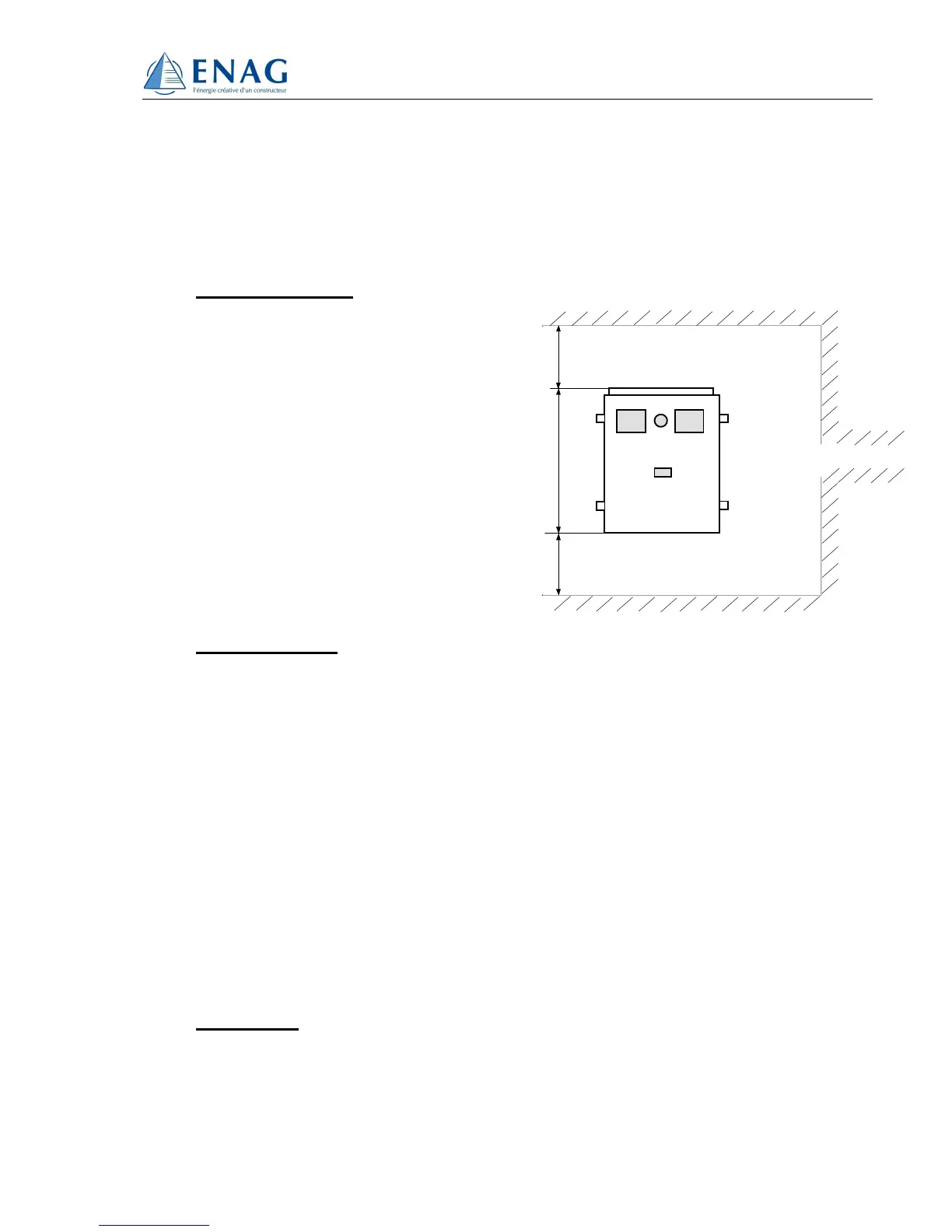

As
the appliance is cooled by natural
convection, a minimum allowance
must be left for installation as shown.
Mounting centre distance and space
requirement: see enclosed drawing.
The situation of the charger must be
adapted to its protection rating.
5.2 CONNECTION
The cable fixation is done on the connecting bar.
A shielded cable connection attenuates electromagnetic disturbance and reduces
the susceptibility of the appliance. This type of cable is recommended in all
installations.
The ground terminal or lug of the appliance must be connected by a short, wide
strap to the installation ground. See cables fixation plan.
The ground strap of the shielded cables must be linked to the appliance ground
inside the case.
Separate the supply, load and control cables.
5.3 SETTINGS
See enclosed drawing.
