Fastlane
®
Swim Unit Installation

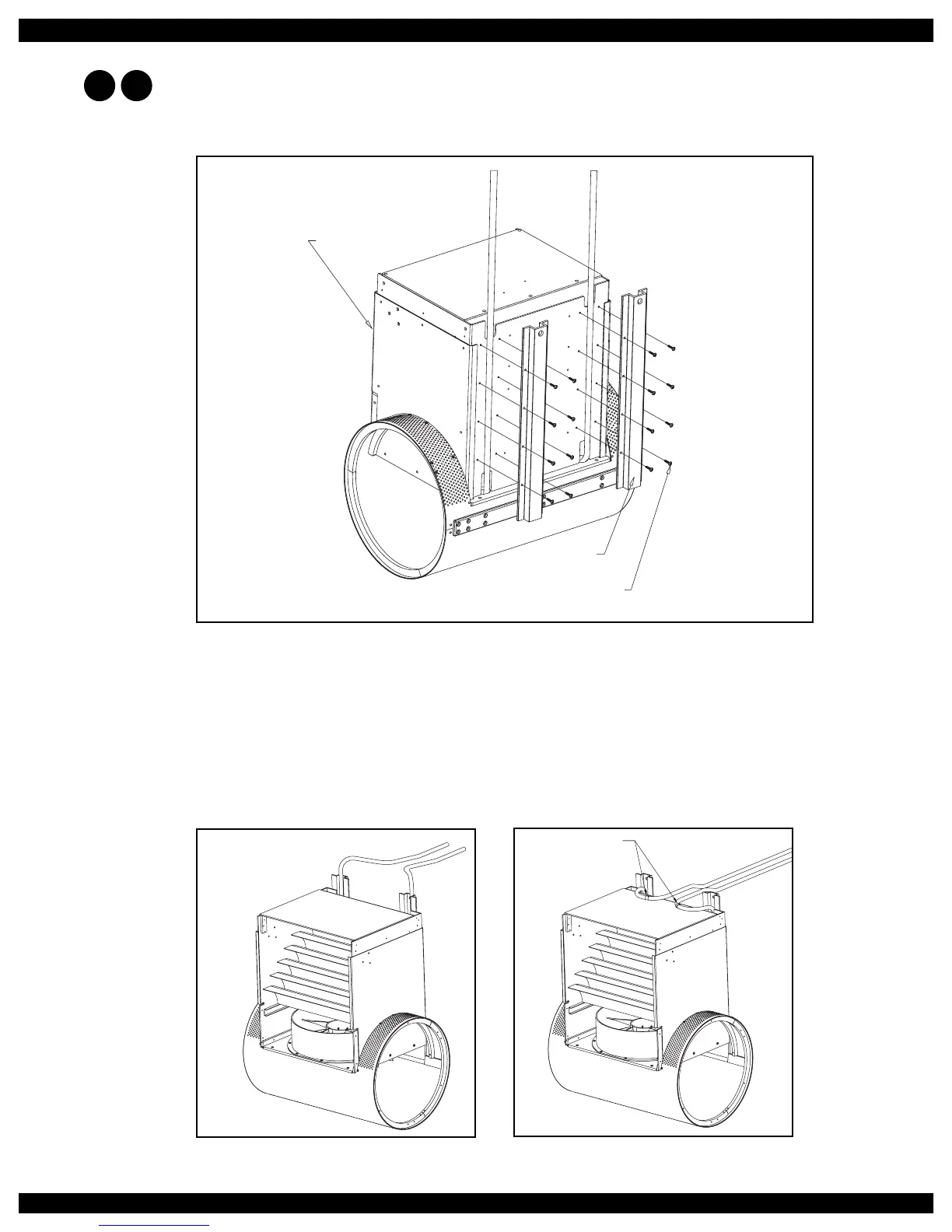

6.7 Carefully lay the Fastlane onto its face. Position the hydraulic hoses up the back of the upper housing.
The two hat sections will be placed over the hydraulic hoses. Make sure that the mounting hole in the
end of the hat section is facing up. Use the provided 1" (25mm) stainless steel screws to attach the hat
sections to the back of the upper housing. There will be 8 screws per hat section (Fig 6.5).
Front Face of Fastlane
Hat Section
1” (25mm) Stainless Steel Screw
Fig. 6.5
6.8 Pull any excess hose out of the hat channel.
6.8a) If the hydraulic hoses are to be run up and over the pool deck, then proceed to step 6.9 (Fig 6.6A).
6.8b) If the hydraulic hoses are to go through the pool wall, attach the two hoses to the top of the upper
housing. There are 2 green hose clamps attached to the top of the housing. The screws that are
securing the clamps to the housing will have to be removed in order to secure the hoses to the
clamps (Fig 6.6B).
