Parts List
1
White Fire Glass
GLS-BRZ
2
Table Insert
58-2*-***
3
Bowl Assembly*
58-24-047
4
Igniter Cover*
58-23-896
5
Burner*
58-23-251
6
Control Knob*
58-23-139
7
Battery Cap*
58-23-897
8
Regulator/Hose
Assembly*
58-24-052
9
Mantel
58-24-130
10
Side Panel (3)
58-2*-***
11
Leg A (2)
58-24-132
12
Magnet(2)*
58-24-056
13
Leg B
58-24-057
14
Leg C
58-24-058
15
Door Knob*
58-24-059
16
Base*
58-24-060
17
Foot (4)*
58-23-061
18
Door
58-24-135
19
LP Gas Tank Retainer
Bolt*
58-24-062
20
Cover
58-24-136
20
Lava Rock (not required
and sold separately)**
55-05-833
* Pre-assembled
W **CAUTION: Use only
Mr. Bar-B-Q Products LLC
factory-authorized fire glass/lava
rock. The use of any fire glass/
lava rock that is not factory-
authorized can be dangerous and
will void your warranty.
21
Hardware
A
Screw
M5x12 Black Nickel Plated Truss Head
16 pcs
B
Screw
M6X12 Black Nickel Plated Truss Head
4 pcs
C
Screw
M6X12 Black Nickel Plated Step Head
1 pc
D
AA Battery 1 pc
Tools Required for Assembly (Not Included)
#2 Phillips Head Screwdriver 1 pc
Sold Separately
2
1
5
4
3
7 8
9
10
10
10
11
11
12
13
14
15
16
17
17
17
17
18
20
21
19
6

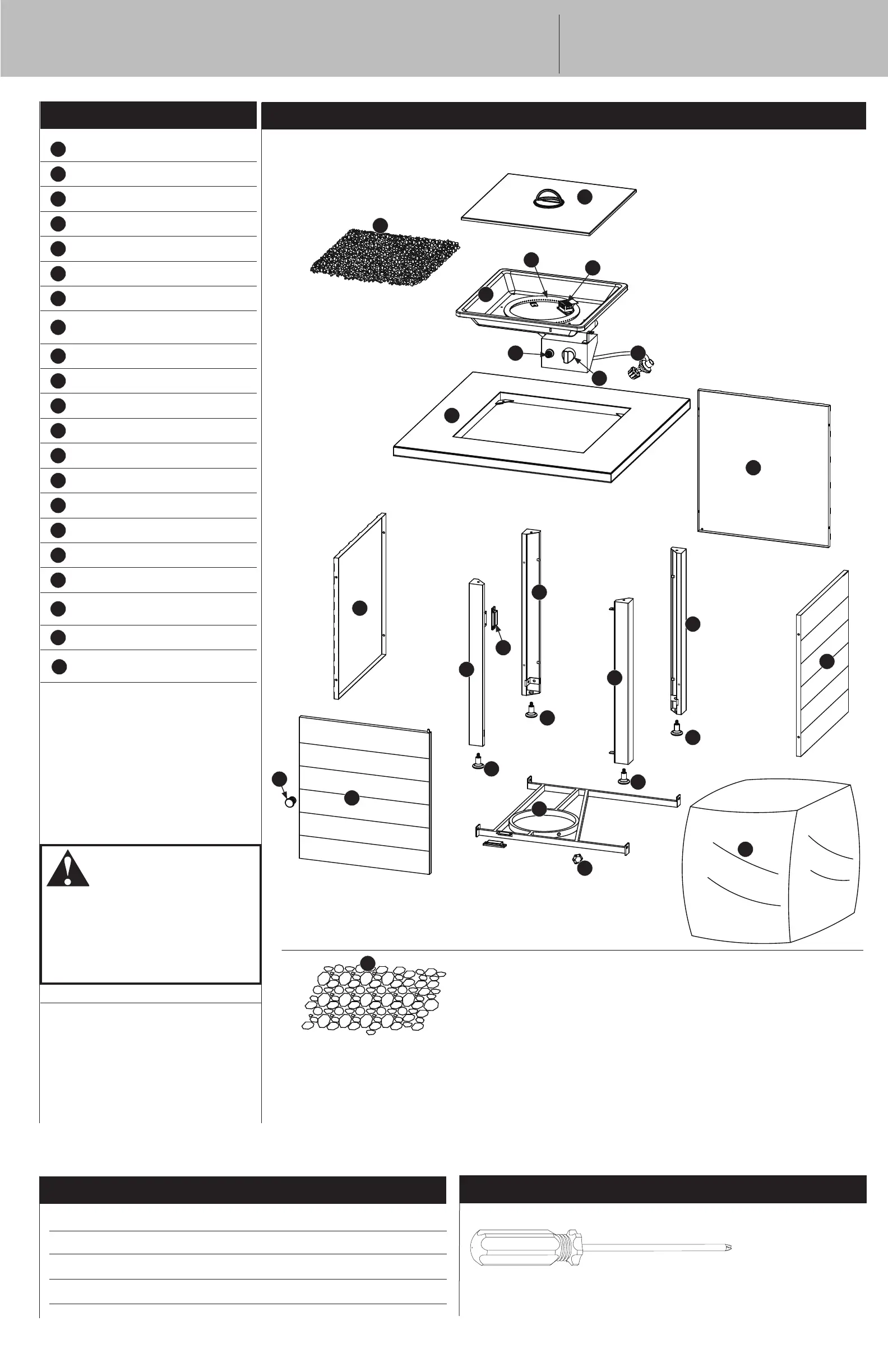

Expanded View
WARNING
When heated, lava rocks may react by
breaking and throwing fragments of
rock. Be sure to season the lava rocks
at a high temperature before use
in order to avoid potential personal
injury or damage.
IMPORTANT BEFORE USE
- HOW TO SEASON LAVA ROCK ON
PAGE 10.
