Energetics CT 210 - Assembly Guide

7

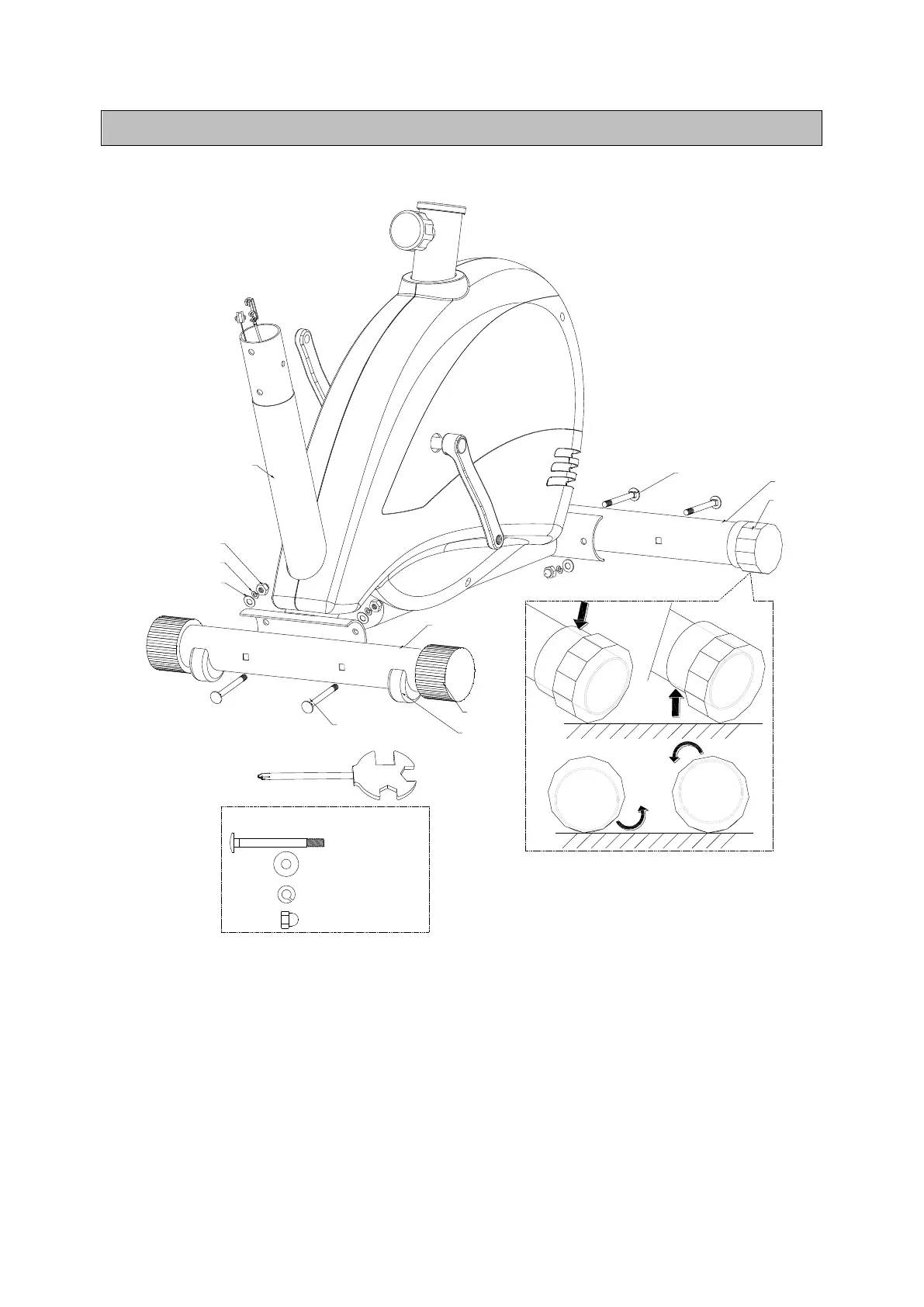

Assembly instruction
Step 1
Assemble the front stabilizer (2) and rear stabilizer (3) to the main frame (1) by using the carriage
bolt (10), the curved washer (22), the spring washer (21) and domed nut (11).
Please note: You can adjust the height of the rear foot cap (7) if needed.
10
11
21
22
7
3
10
2
1
(x4)
A
M8*1.25*75L
D22*D8.5*1.5T
D15.4*D8.2*2T
M8*1.25*15L
DOWN
UP
DOWN
UP
