Energetics CT 210 - Page 8

8

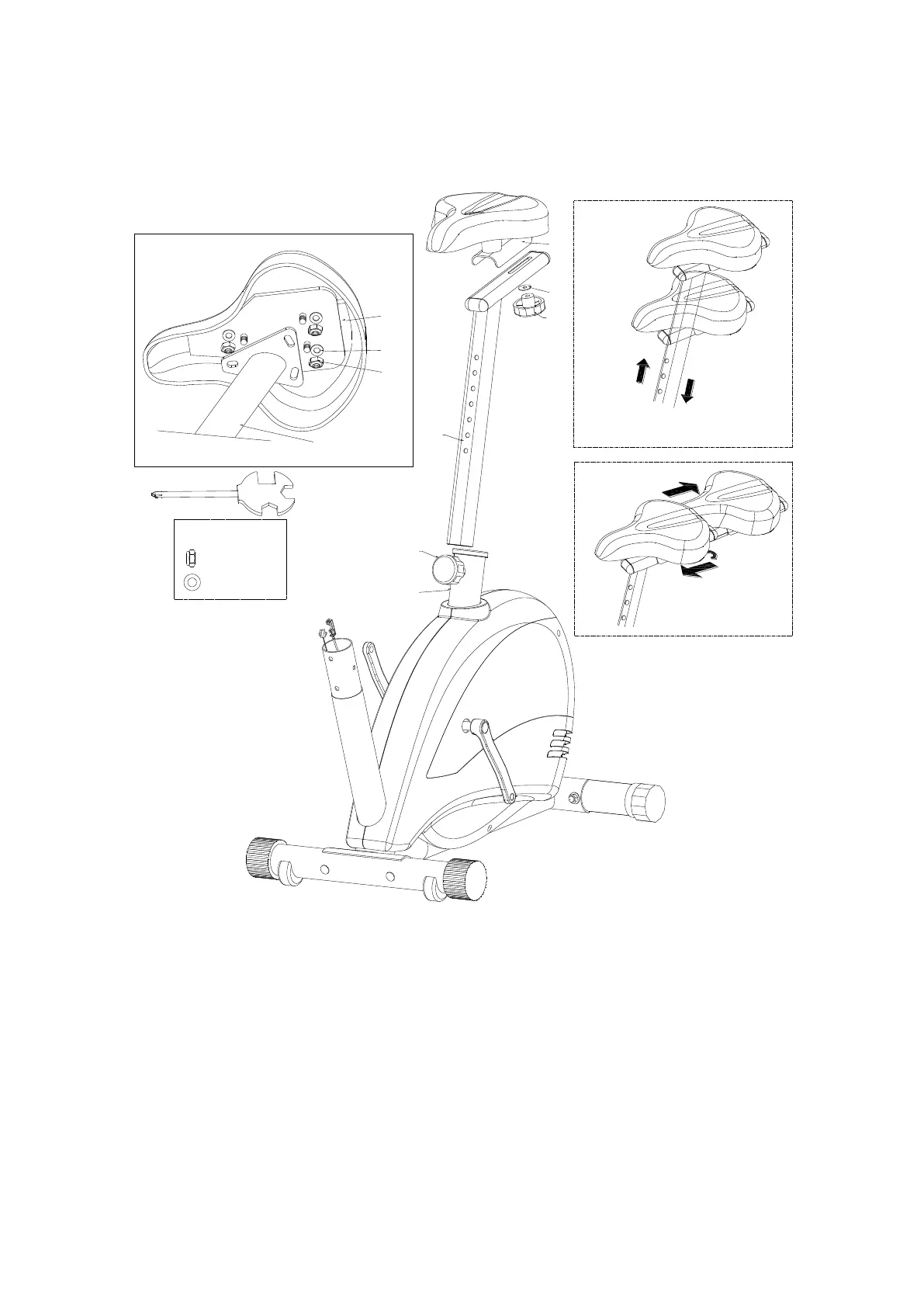

Step 2
1. Loose the three nylon nuts (14) and the three flat washers (13) under the seat (12). Fix the
seat (12) to the seat adjustable tube (67).
2. Assemble the adjustable tube onto the seat support (4) by Flat washer(19) and Club knob(51)
3. Loose the Adjustable knob (15) on the main frame and Slide the seat support (4) onto the
rear stem of the main frame and secure with the knob (15) in a proper height.
13
14
12
67
1
15
(x3)
B
M8*1.25*8T
D16*D8.5*1.2T
C
BACKWARD
FRONTWARD
A
B
UP
DOWN
4
51
19
67
