Energetics CT 210 - Page 9

9

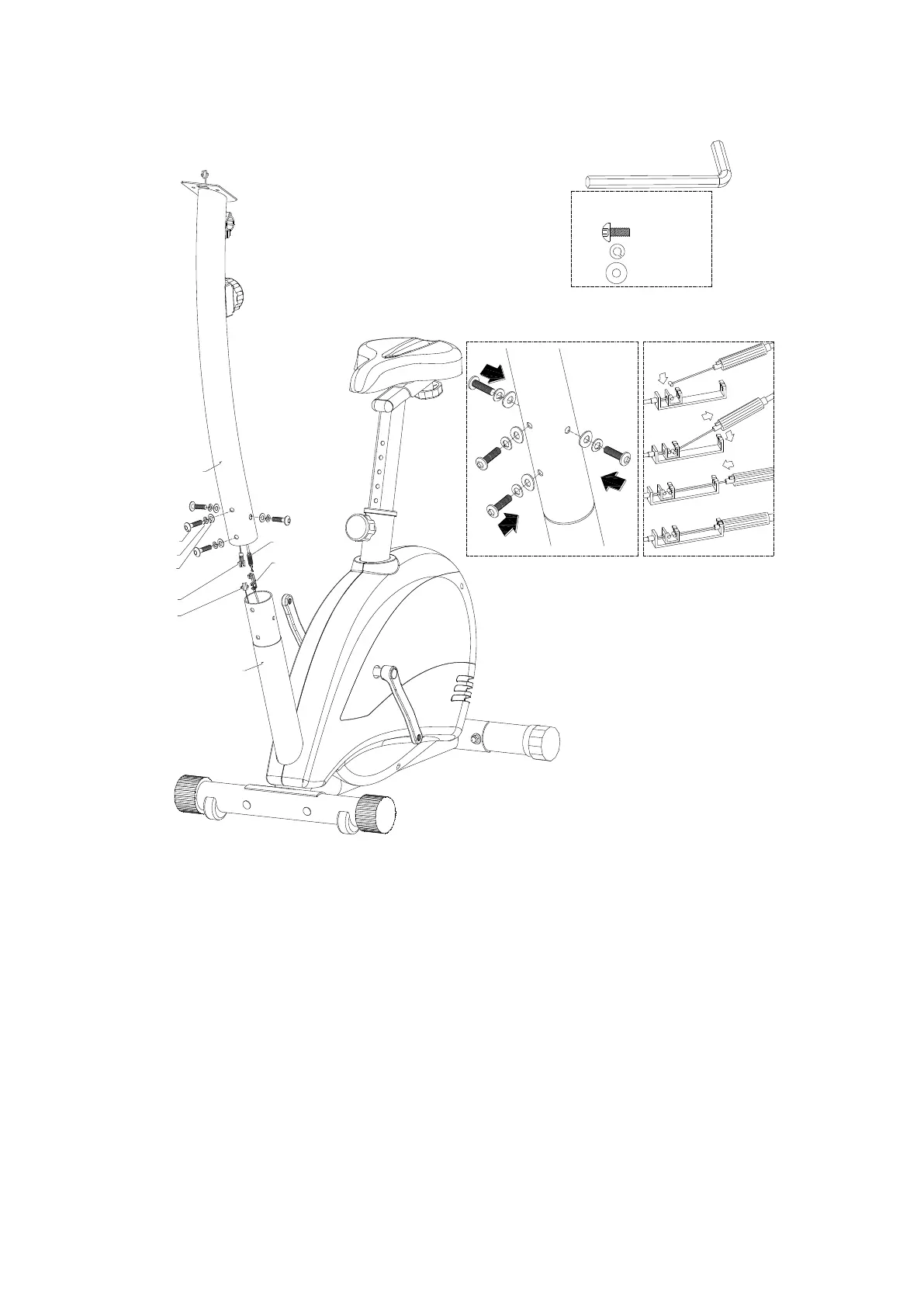

Step 3
1. Connect the computer cable (24&25) and tension cable (34 & 26).
2. Assemble the handlebar post (5) to the main frame (1) by using the bolt (20), the spring
washer (21) and curved washer (22).
1
C
(x4)
D15.4*D8.2*2T
D22*D8.5*1.5T
M8*1.25*20L
34
26
5
25
24
21
20
22
(A)(B)
A-1
A-2
A-3
A-4
