3.0 DESCRIPTION
3.1 Models P-141, 1001; P-142, 1002;
P-202; P-391, 1004; P-392, 1005; P-802;
P-842

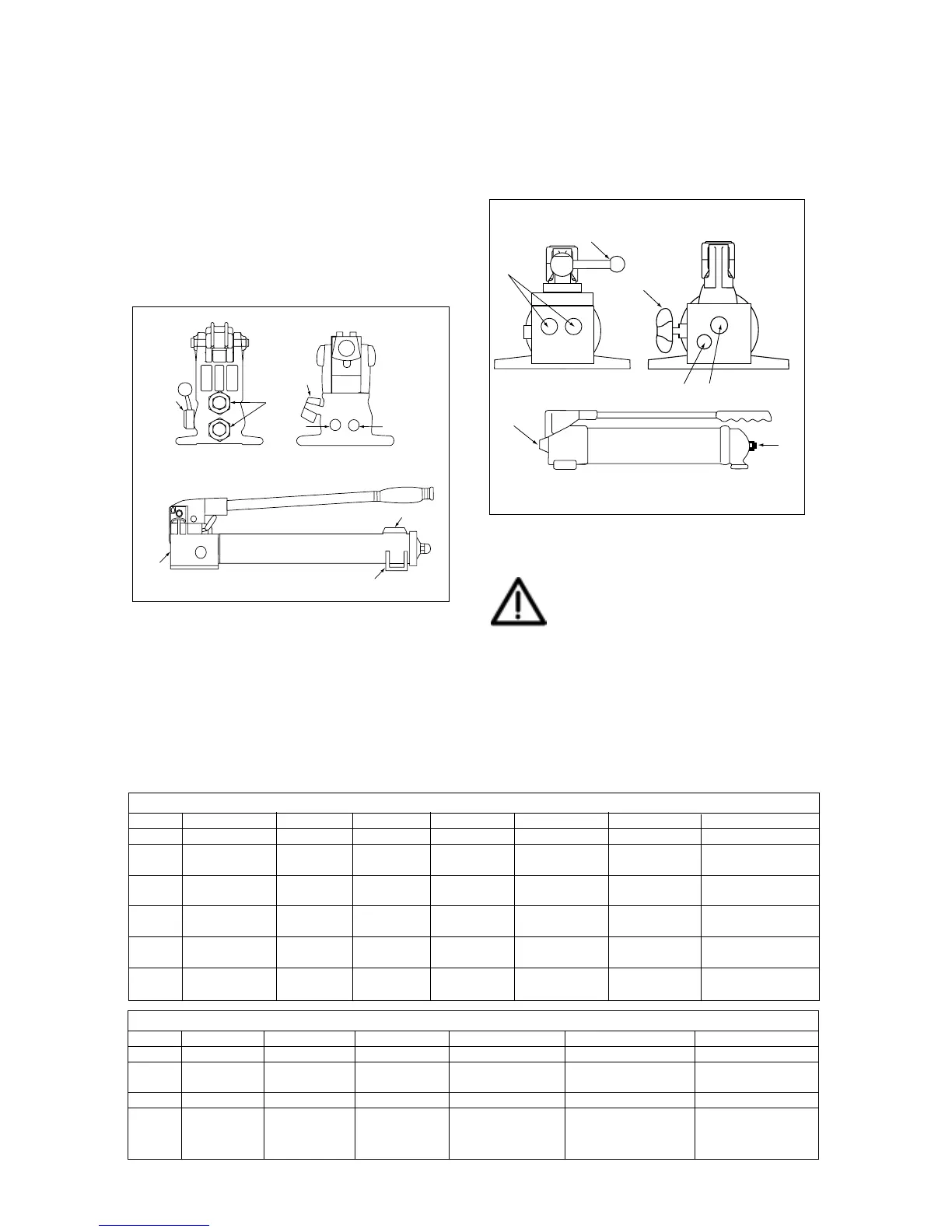

Figure 1 and the corresponding table show the main
components of hand pump models P-141, P-142, P-
202, P-391, P-392, P-802, and P-842. The dual-
purpose vent/fill cap acts as a pressure relief valve in
case of accidental reservoir pressurization. To
provide an access port at the rear of the reservoir for
remote valves, use a return-to-tank kit. See the Table
1 for kit model numbers.
Figure 1
3.2 Models P-18/P-39, 1003/P-80, 1006/
P-84/P-801, P-77
Figure 2 and the corresponding table below show the
main components of these hand pump models.
Model P-84 is equipped with a 4-way, 3-position
valve for use with double-acting cylinders. To convert
models P-18 or P-39 to foot operation, order Kit PC-10.
Figure 2
WARNING: These pumps are operated
with a non-vented reservoir. If the
reservoir is subjected to high pressure,
the casing may rupture, causing
personal injury and/or equipment damage.
NEVER attempt to return more oil to the reservoir
than it is capable of holding.
B
A
A
DB
C
B
P842
D
C
B
B
A
A
BE
3
Table 1
Fig. 1 P-141, 1001 P-142, 1002 P-202 P-391, 1004 P-392, 1005 P-802 P-842
A Release Valve Release Valve Release Valve Release Valve Release Valve Release Valve 4-Way Valve
B 1 /4 NPTF 1 /4 NPTF 1 /4 NPTF 3/8 NPTF 3/8 NPTF 3/8 NPTF 3/8 NPTF
Outlet Port Outlet Port Outlet Port Outlet Port Outlet Port Outlet Port Outlet Port
C Vent/Fill Vent/Fill Vent/Fill Vent/Fill Vent/Fill Vent/Fill Vent/Fill
Cap Cap Cap Cap Cap Cap Cap
D Mounting Mounting — — — Mounting Mounting
Slots Slots Slots
E — — — — — Return-to-Tank —
Port
Return-to PC-20 PC-20 PC-25 PC-25 PC-25 — —
-Tank Kit
Table 2
Fig. 2 P-18 P-39, 1003 P-77 P-80, 1006 P-84 P-801
A Release Valve Release Valve Release Valve Release Valve Release Valve Release Valve
B 3/8 NPTF 3/8 NPTF 3/8 NPTF 3/8 NPTF 3/8 NPTF 3/8 NPTF
Outlet Port Outlet Port Outlet Port Outlet Port Outlet Port Outlet Port
C Fill Plug Fill Plug Fill Plug Fill Plug Fill Plug Fill Plug
D — — — 1/4 NPTF
—
1/4 NPTF
Return-to-Tank Port Return-to-Tank Port
