Enerpac RSL2 - Page 13

13
RSL Torque Wrench

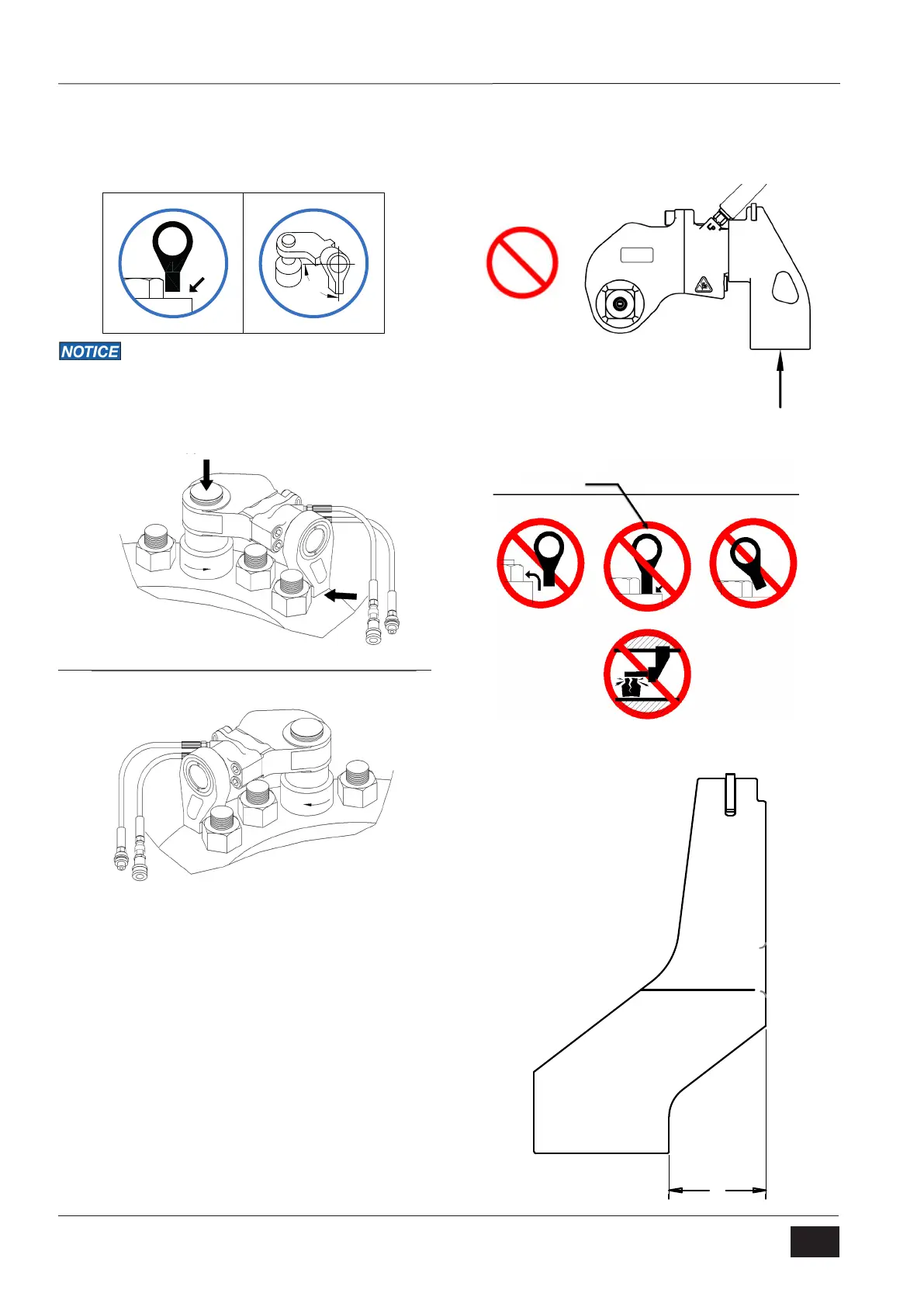

Fig 4.5-3 Incorrect Sq. Dr. Torque Wrench Set
Reaction
Do Not React Sq. Dr. Tool With Arm In Direction
Shown - Socket May Fracture
Fig 4.5-4 Extended Reaction Arm (ERA-Series)
4.5 Square Drive Tool Reaction
[continued]
Fig 4.5-1 Correct Sq. Dr. Torque Wrench Set
Reaction
Arrow points to required gap.
Fig 4.5-2 Correct Reaction
(RH Threads - Sq. Dr. Tool)
90°
Requires a Gap
PUSH HERE
LOOSENING
TIGHTENING
X
X = Reaction Arm Footprint
