Enerpac RSL2 - Tool Operation and Hose Assembly

14
RSL Torque Wrench
4.6 Tool Operation Instructions
4.6.1 Select proper tool and accessories (See
Section 3):
a. Torque rating
b. RSQxxxxxST - Square drive cassette
and torque wrench drive
i. Reaction arm, or other
ii. Square drive AF
iii. Hex bits (for socket head cap screws)
iv. Socket (for hex head cap screws and
nuts):
1. Fastener AF
2. Short or long
c. RLPxxxxx – Hexagon cassette and
torque wrench drive
i. Reaction arm, tube, sleeve, or other
ii. Proper hex insert
4.6.2 Change hexagon cassette insert to proper
AF and cutout shape (hex, double hex,
double square, etc.), etc
4.6.3 Change sq. dr. cassette to proper AF, hex
bit, tightening, or loosen. Change sq. dr.
insert:
a. Remove sq. dr. retainer.
i. Pull on end of retainer to release ball
detents.
ii. Remove sq. dr. retainer assembly.
b. Remove and reposition and/or replace
sq. dr.
c. Assemble drive retainer.
i. Pull on end of retainer to release ball
detents.
ii. Insert sq. dr. retainer assembly into
sq. dr.
iii. Push on end of retainer to engage ball
detents.
4.6.4 Assemble torque wrench drive and wrench
cassette.
a. Assemble hexagon or sq. dr. cassette
per Fig. 4.6-1.
b. To assemble:
i. Must move pawl driver to retract
position shown.
ii. Couple wrench cassette to torque
wrench drive by hooking retractor pin
into pawl driver groove.
iii. Position wrench cassette on torque
wrench drive.
iv. Verify pin still engages pawl driver
groove.
v. Secure wrench cassette to torque
wrench drive. Torque long and short
bolts according to Table 4.6-1.
4.6.5 (As needed – sq. dr.) Assemble socket to
sq. dr. and secure socket to square drive
with o-ring and pin.
A socket may become a falling
object hazard. Secure socket to sq. dr. and keep
area below tool clear.

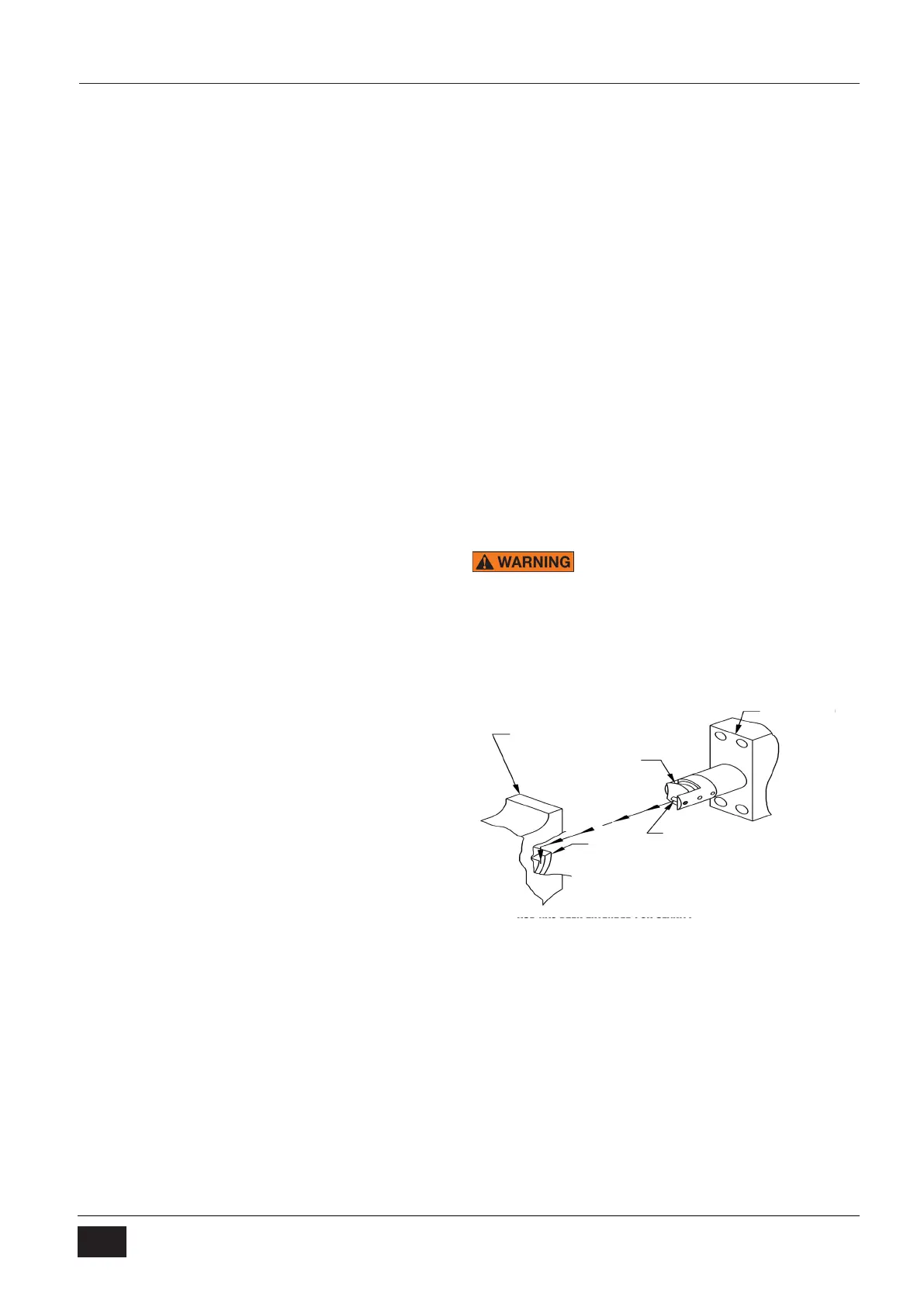

Fig 4.6-1 Wrench Cassette and Torque Wrench
Drive Assembly
CASSETTE
HOUSING
TORQUE WRENCH
DRIVE
PIN
PAWL DRIVER
ROD HAS BEEN EXTENDED
FOR CLARITY
PUSH
BLOCK
