22
W2000X W4000X W8000X W15000X
Hexagon size range of
available cassettes
inch 1
1
/16 - 2
3
/8 1
5
/16 - 3
3
/8 1
7
/8 - 4
1
/8 2
7
/16 - 4
5
/8
mm 30 - 60 36 - 85 50 - 105 65 - 115
Maximum operating
pressure
psi 10,000 10,000 10,000 10,000
bar 690 690 690 690
Nominal at 10,000 psi
torque
at 690 bar
Ft.lbs 2,040 4,175 8,470 15,330
Nm 2,766 5,661 11,484 20,785
Min. torque Ft.lbs 204 418 847 1,533
Nm 277 566 1,148 2,079
Weight, Drive Unit lbs 2.9 4.2 6.8 11.0
kg 1.3 1.9 3.1 5.0
Weight, Cassette (See Sections 6.2.1 through 6.2.6)
Dimensions A inch [mm] 4.29 [109.0] 5.35 [136.0] 6.77 [172.0] 8.15 [207.0]
B inch [mm] 5.55 [141.0] 6.57 [167.0] 8.07 [205.0] 9.45 [240.0]
C inch [mm] 5.83 [148.0] 7.01 [178.0] 8.19 [208.0] 9.96 [253.0]
D inch [mm] 1.26 [32.0] 1.61 [41.0] 2.07 [52.5] 2.48 [63.0]
E inch [mm] 0.94 [24.0] 1.29 [32.8] 1.65 [41.9] 1.97 [50.0]
F inch [mm] 0.79 [20.0] 0.79 [20.0] 0.98 [25.0] 0.79 [20.0]
G, H, S (See Sections 6.2.1 through 6.2.6)
I, J1, J2 (See Sections 6.1.3 and 6.1.4)

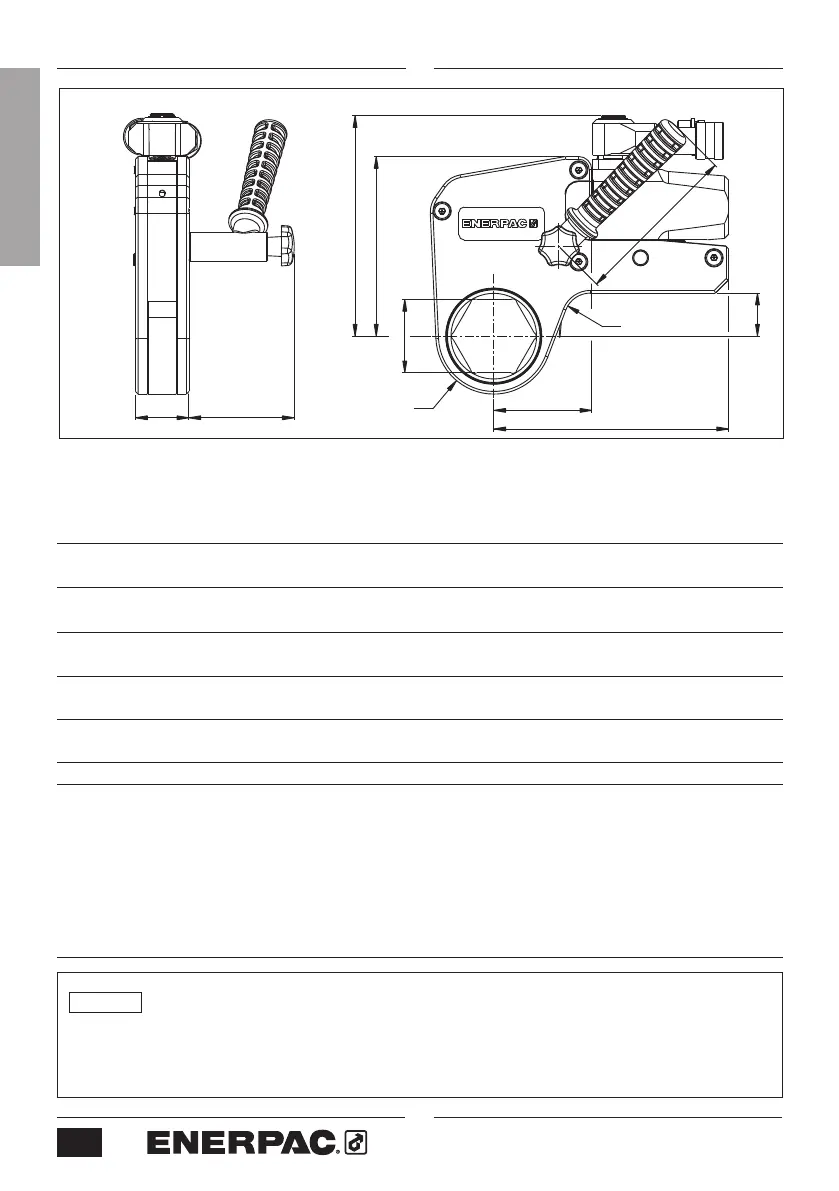

E
C
G
F
H
S
B
A
DI
J1, J2
Fig. 20
NOTICE
If wall thickness of hexagon reducer
insert is less than shown in the table at right, the
insert's usable life may be significantly reduced.
6 Technical specifications
6.1 Capacities, Dimensions and Additional Product Data (Fig. 20)
Minimum Wall Thickness - Hexagon Reducer Insert
W2000X Series . . . . . . . . . . . . .0.14 inch [3.50 mm]
W4000X Series . . . . . . . . . . . . 0.18 inch [4.69 mm]
W8000X Series . . . . . . . . . . . . . 0.24 inch [6.0 mm]
W15000X Series . . . . . . . . . . . 0.26 inch [6.69 mm]
