Enerpac W2000X - Page 23

23
A1
B1
C1
WTE

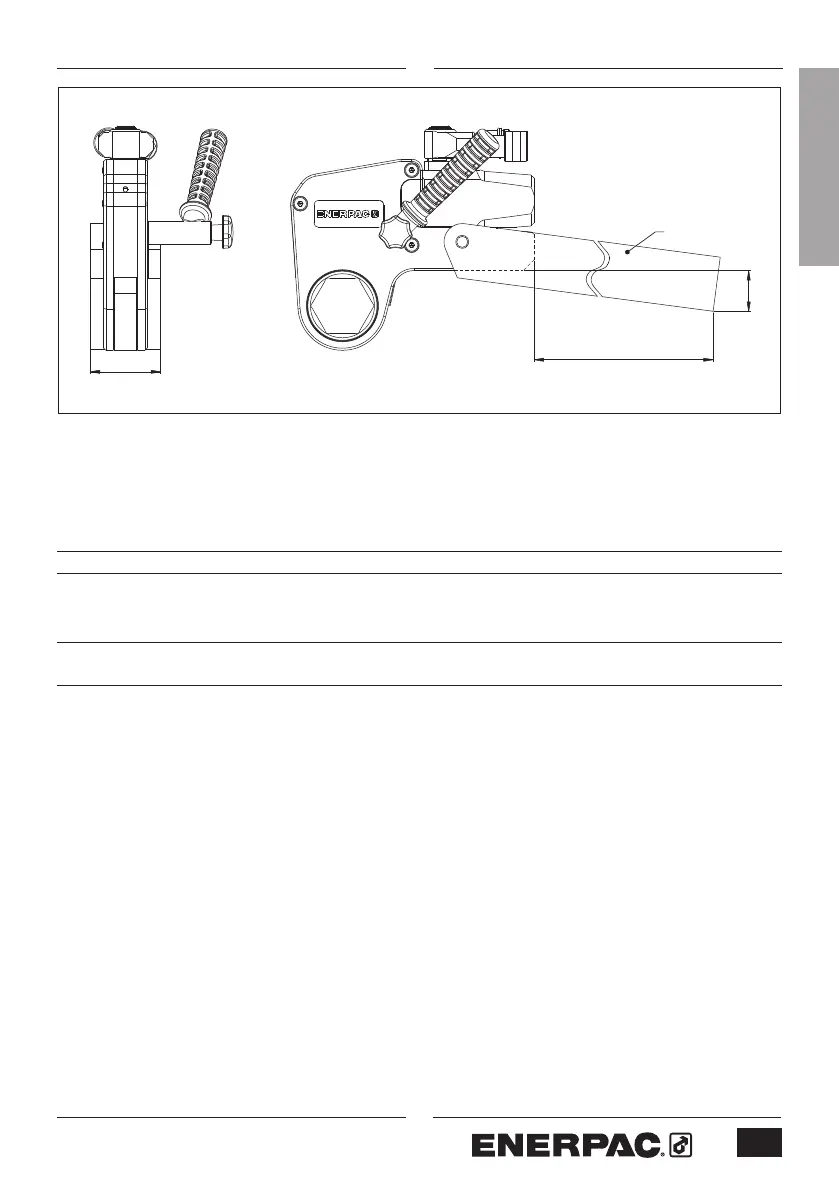

Fig. 21
6.1.1 Dimensions, WTE Series Extended Reaction Arm (Fig. 21)
Wrench Series W2000X W4000X W8000X W15000X
Reaction Arm Model WTE20 WTE40 WTE80 WTE150
Dimensions A1 inch [mm] 2.20 [56] 2.59 [66] 3.35 [85] 4.05 [102]
B1 inch [mm] 15.67 [398] 17.17 [436] 17.68 [449] 19.60 [498]
C1 inch [mm] 2.66 [67.5] 2.90 [74] 2.15 [54.5] 2.80 [72]
Weight lbs [kg] 5.73 [2.6] 10.14 [4.6] 16.75 [7.6] 26.46 [12.0]
(Reaction arm only)
ENGLISH
