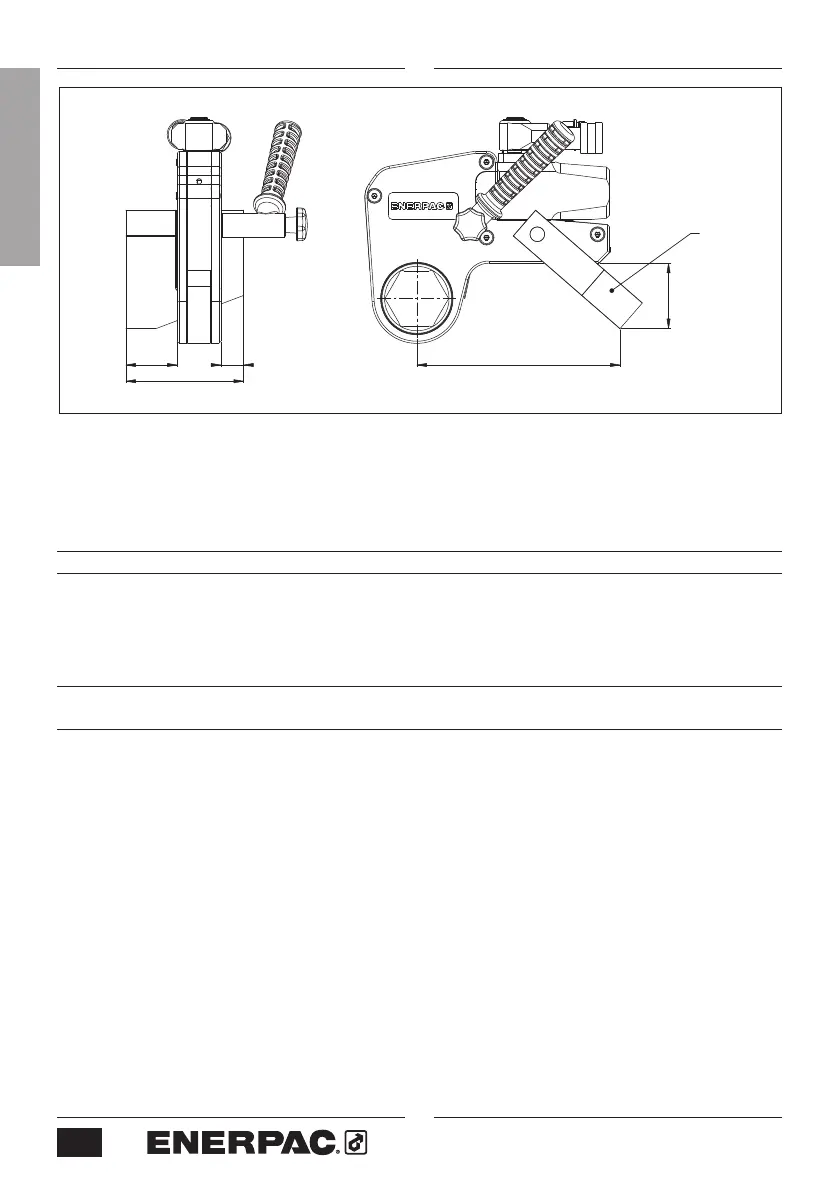

6.1.2 Dimensions, WRP Series Reaction Paddle (Fig. 22)
Wrench Series W2000X W4000X W8000X W15000X
Reaction Paddle Model WRP20 WRP40 WRP80 WRP150
Dimensions A2 inch [mm] 3.31 [84] 4.29 [109] 5.37 [136.5] 6.50 [165]
B2 inch [mm] 5.83 [148] 7.48 [190] 8.78 [223] 10.12 [257]
C2 inch [mm] 1.77 [45] 2.32 [59] 2.72 [69] 3.43 [87]
K inch [mm]
1.40 [35.5] 1.87 [47.5] 2.25 [57] 2.74 [69.7]
L inch [mm] 0.63 [16] 0.83 [21] 1.02 [26] 1.26 [32]
Weight lbs [kg] 0.88 [0.4] 1.76 [0.8] 4.41 [2.0] 8.60 [3.9]
(Reaction paddle only)
