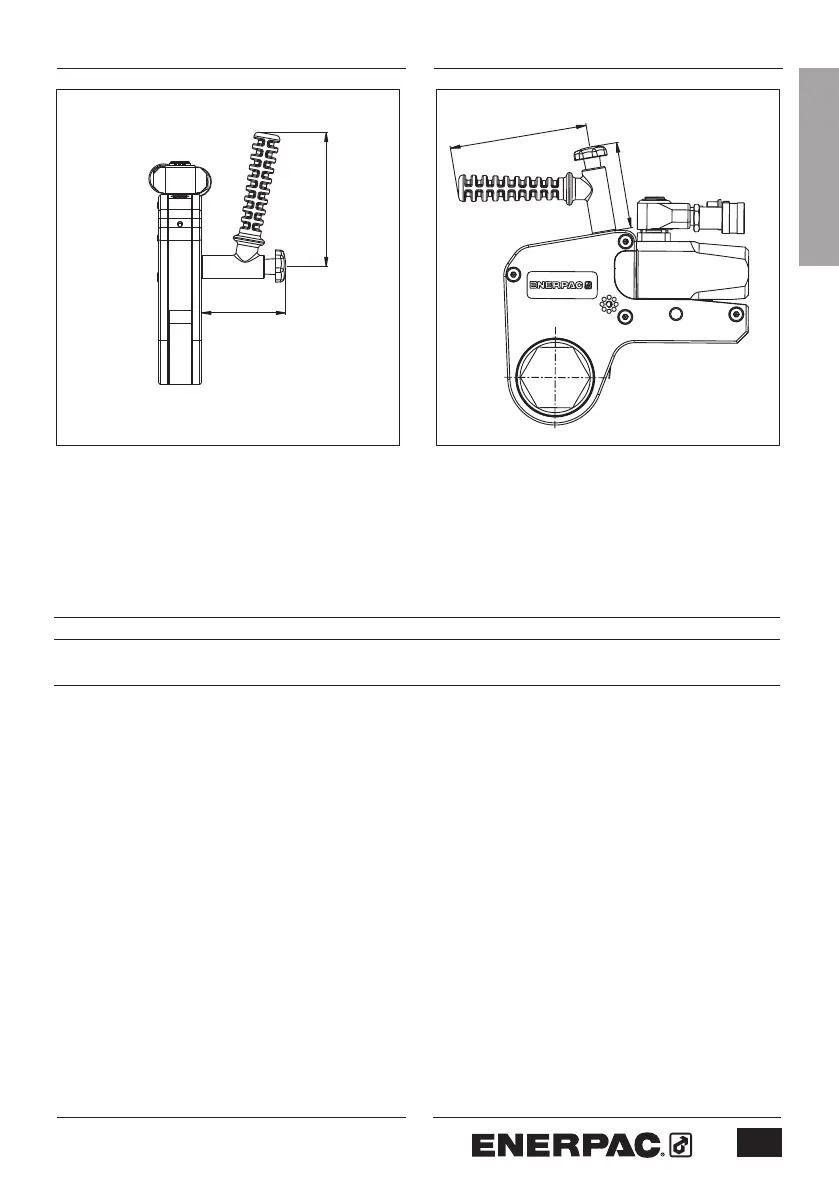

6.1.3 Dimensions, SWH Series Angled Positioning Handle (Fig. 23 and 24)
Wrench Series W2000X W4000X W8000X W15000X
Handle Model SWH6A SWH6A SWH10A SWH10A
Dimensions I inch [mm] 3.15 [80] 3.15 [80] 3.62 [92] 3.62 [92]
J1 inch [mm] 5.04 [128] 5.04 [128] 5.04 [128] 5.04 [128]
I
J1
Fig. 23
J1
I
Fig. 24
Side Mounted Top Mounted
