ELECTRICAL SCHEMATICS
Figure 1

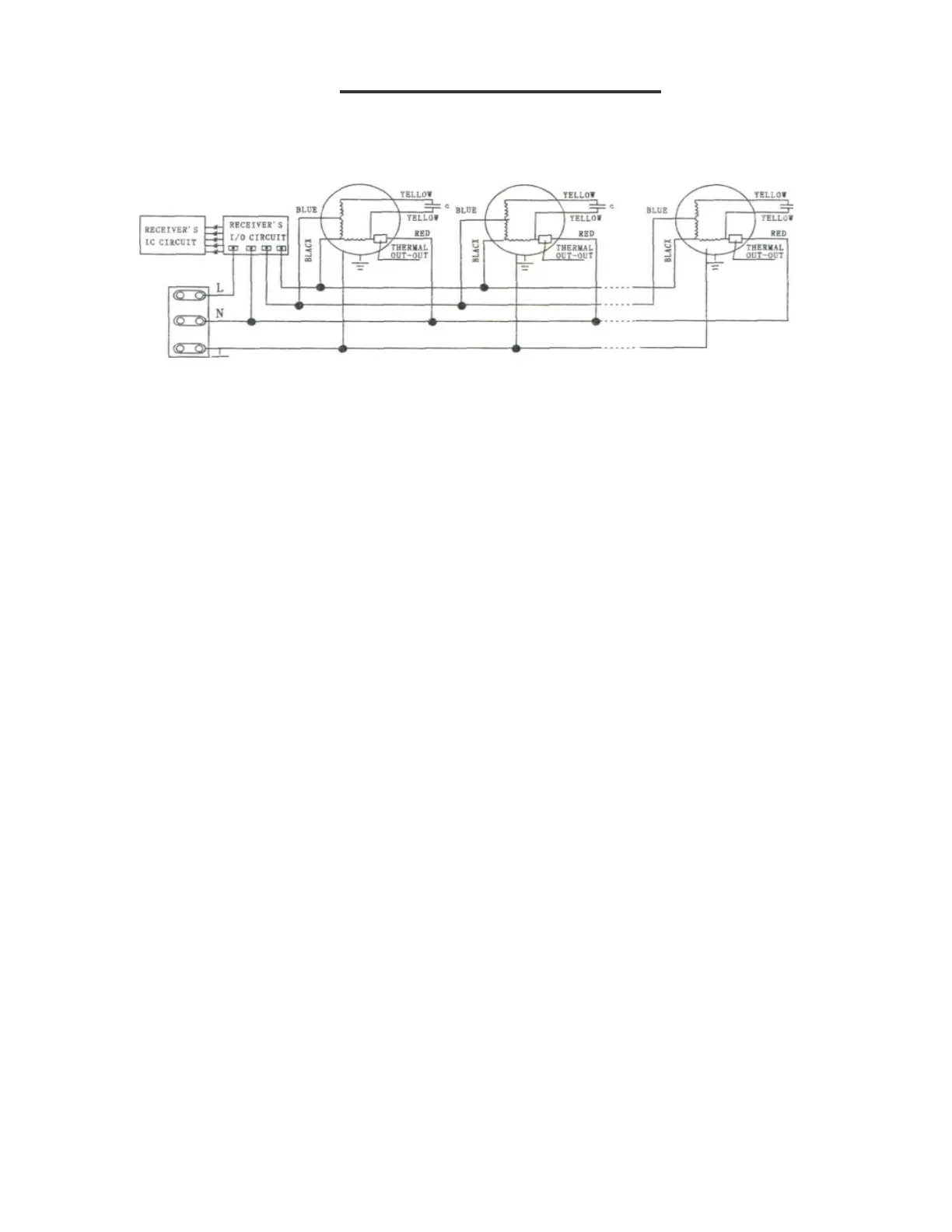

Two Speed Infrared Controlled Wiring Diagram
OPERATION
1) Plug in Air Barrier
2) Turn on Air Barrier
3) Select the desired speed
4) Adjust diffuser (page 9)
MAINTENANCE
1) Unplug the unit before performing any maintenance.
2) Clean the Air Barrier regularly. Use a damp cloth to wipe the exterior surfaces.
DO NOT USE SOLVENTS OR OTHER HARSH CHEMICAL CLEANERS!!!
3) Blow or vacuum out the interior as required. It is important that the blower wheels
remain free of dust build up to prevent them from becoming unbalanced which
will lead to premature failure. Failure to clean the units’ interior will void
warranty!
4) Check diffuser setting periodically. Adjust as required. See page 9.
5) Check that magnetic switch and actuator are secure and working.
