A XES SC MANUAL
IOM-58 16 of 30 June 14 R5
Side Wall Vent – Approved By Others
Where the Engineered Air supplied concentric flue termination cannot be used, separate approved wall

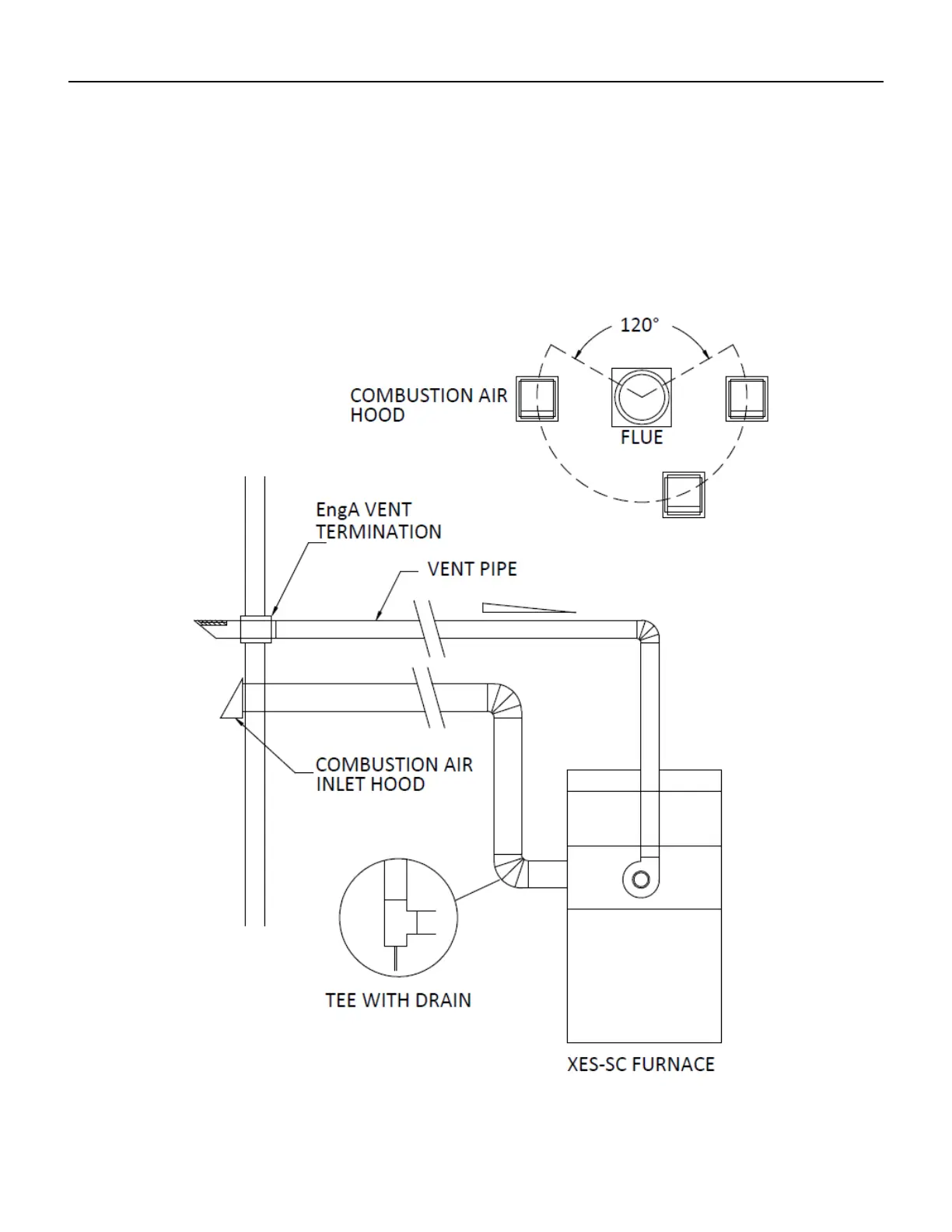

terminations may be supplied and used by the installing customer. Installation of the fresh air intake
relative to the combustion outlet must conform to the diagram shown below:
