④ WIRE GAUGE IS IMPORTANT TO AVOID "VOLTAGE DROP"
Connect your fridge to battery by use of the following wire:
⑤ INSTALL A FUSE IN WIRING CIRCUIT
To avoid burn out of wiring from battery to the fridge in the event of a short circuit,
install 15A fuse in the wiring circuit, near by the battery.
⑥ Never use an engine generator for ENGEL
Because the inverter of ENGEL refrigerator is destroyed by high voltage and high pulse
of DC power source.
If you want to use such equipment, you are advised to
contact your ENGEL dealer.
Distance Between
Refrigerator And Battery
Less than 6m
From 6m to 10m
More than 10m
Wire Gauge
DC 12 VOLT SERIES
SWG#16(AWG#14)
SWG#14(AWG#12)
Please contact your Engel
Your ENGEL can be used both as refrigerator and freezer.
Set the cabinet inside air temperature range by means of the Temperature controller.
Set the Temperature controller to
OFF.
Insert the square moulded plug into
the "POWER DC 12V ONLY" on the
refrigerator.
The other end of the DC cable has
an adapter for automobile cigarette
lighter socket.
Then, light up the power lamp.
To stop the refrigerator, pull out the
lighter DC plug.
3 Temperature setting

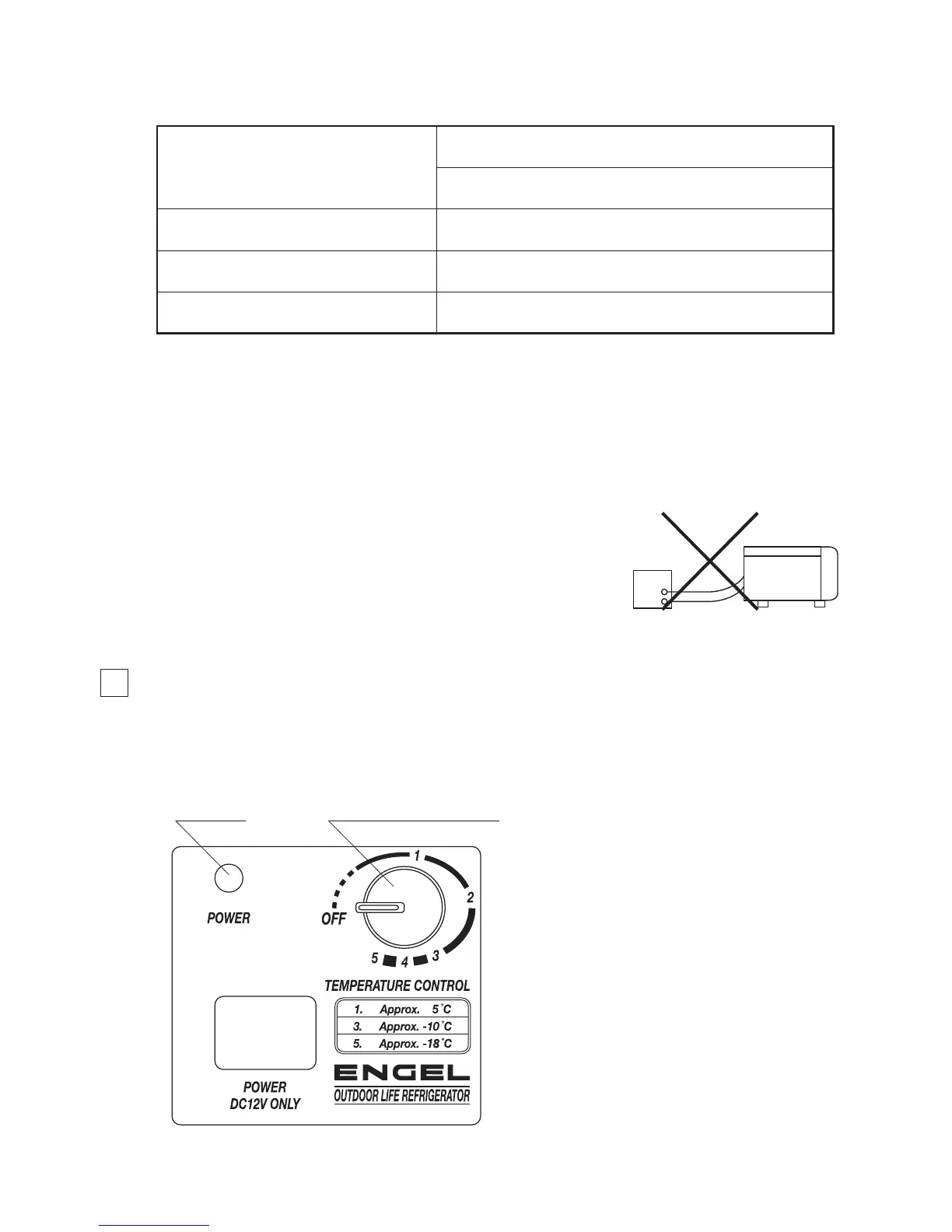

Temperature controllerPower lamp
B A T T
REF
Capacitor
(
Condenser
)
(
Fig 5
)
(
Fig 8
)
(
Fig 8
)
Holder B
Holder A
SHOULDER STRAP
Seam Should
be upper side
①
②
To Next Page
