Extra Blower fan
Horizontal installation

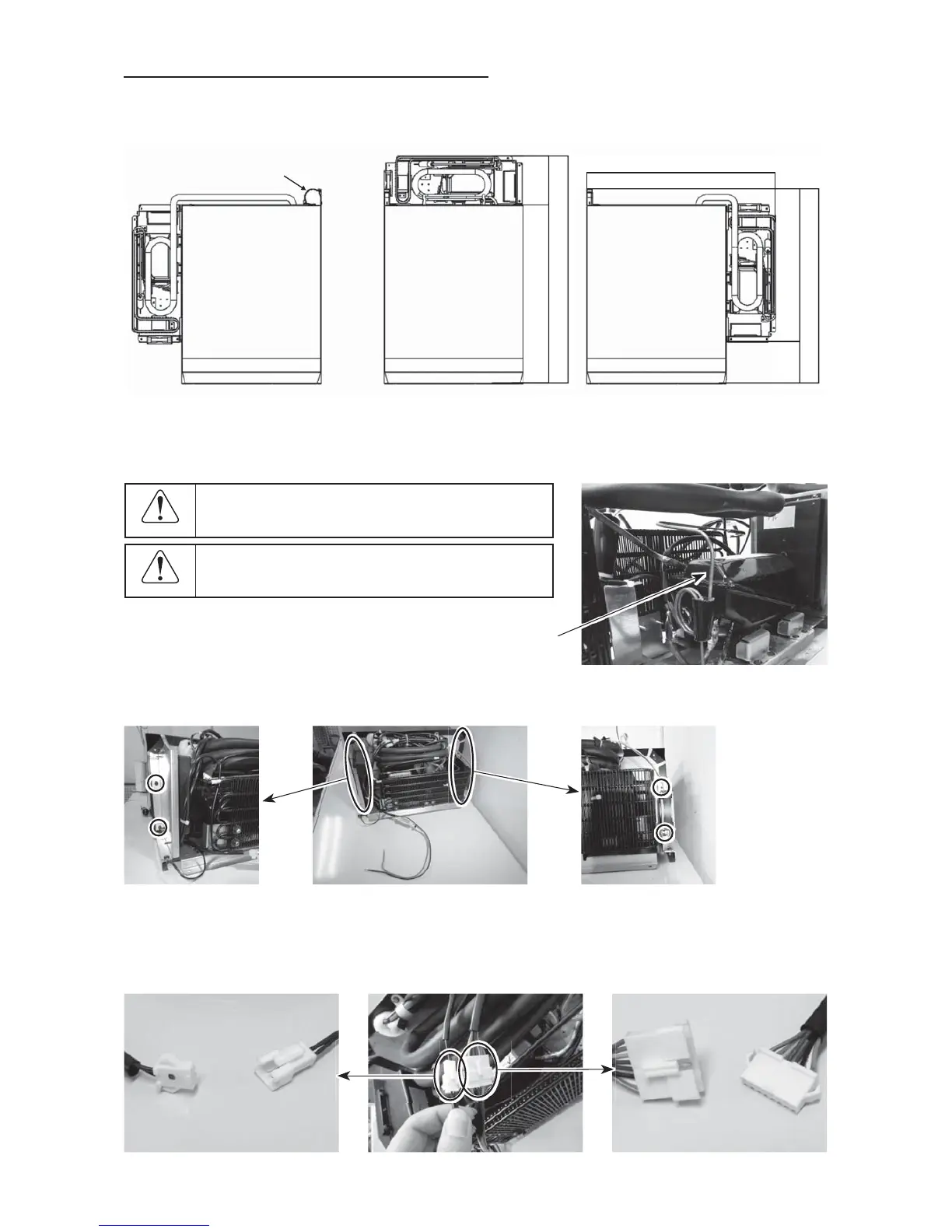

RELOCATING THE COMPRESSOR UNIT
This refrigerator’s compressor unit can be located, to 3 different locations.
a. Compressor unit located on the
Left side.
b. Compressor unit located
on the end.
c. Compressor unit located on the
right side.
Preparation:
2. Cut fasteners.
CAUTION
At this time, Use the hand gloves to avoid injury.
CAUTION
Do not move the DAMPER PIPE.
1. Remove 4 screws with a screwdriver.
3. Remove 2 couplers. Press the stopper of the coupler to release.
DAMPER PIPE
THERMISTOR THERMO CONTROLLER
To Next Page
