Assembling
G - Wheels
Parts not shown:
1 - Manual
2 - Nozzle Cleaner
3 - Spark Plug Wrench
4 - O-Ring Set
(2 for pressure hose, 1 for spray gun)
►
►
6
H – Flat Gasket
I – Elastic Gasket
J – Screw
K – Screw Driver
5 - Funnel For Adding Engine Oil

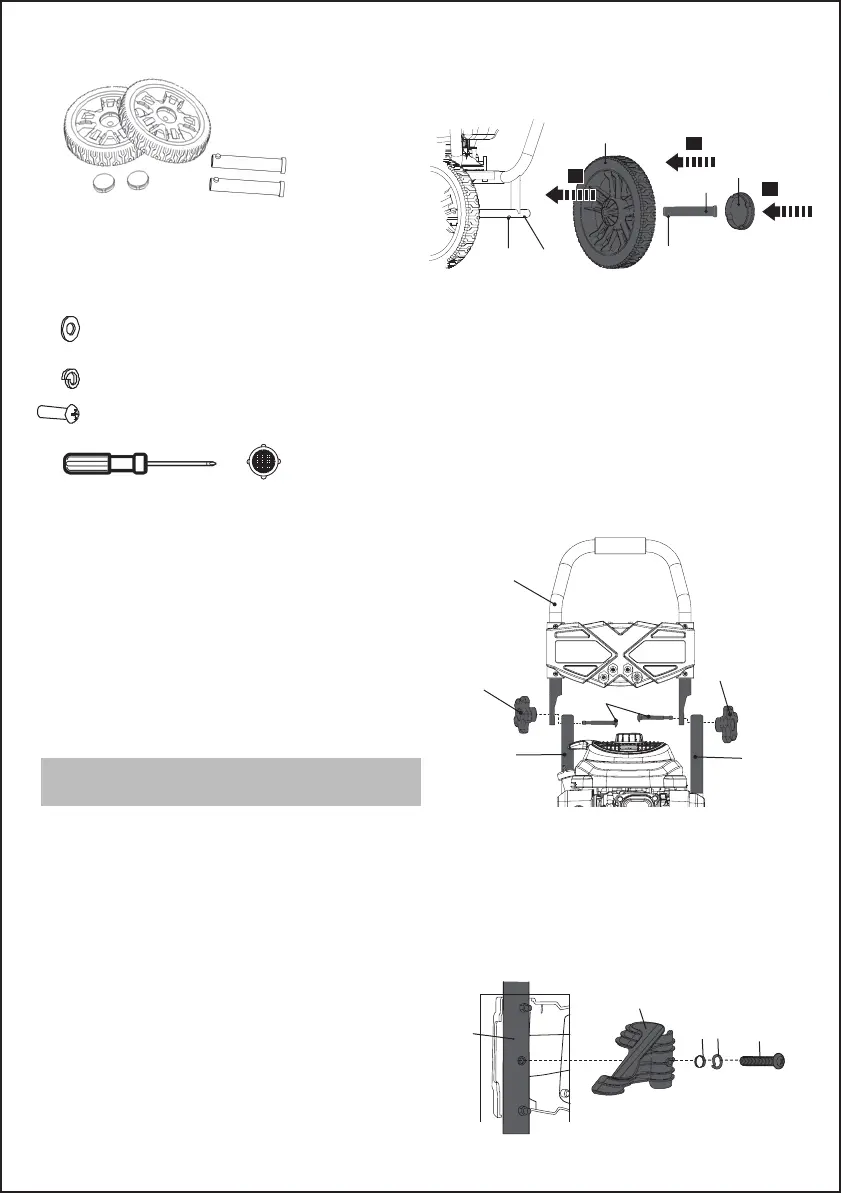

Wheel
> Squeeze the locking pin (G2) and
insert the wheel axle (G1) into the hole
of the wheel (step 1).
> Squeeze the locking pin and insert the wheel
axle into the wheel support (G5)(step 2).
Ensure the locking pin snaps in the locking
hole (G3) properly.
> Put the wheel hubcap (G4) onto the wheel.
(step 3). Ensure it snaps
in place properly.
> Repeat with the other wheel.
►
1.
2.
3.
G4
G1
G5G3
G2
G
Handle
> Align the holes and attach the upper
handle bar (B) onto the lower handle
bar (A).
> Secure the connection with bolts (D2)
and knobs (D1). Ensure the
bolts (D2) are engaged into the
square hole properly.
B
D1
D1
D2
A
A
> Secure the spray gun holder (C)
onto the upper hand bar (B) with
flat gasket (H), elastic gasket (I)
and screw (J) using the provided
screwdriver (K).
Gun Holder
B
C
H I
J
L-Water Inlet Filter
