that the declared vibration total value has been measured in accordance with a standard test method and
may be used for comparing one tool with another;
that the declared vibration total value may also be used in a preliminary assessment of exposure.
warning: the vibration emission during actual use of the power tool can differ form the declared total value
depending on the ways in which the tool is used”.
warning: avoid vibration risk.
suggestion: 1. wear glove during operation;
2. limit operating time and shorten trigger time.

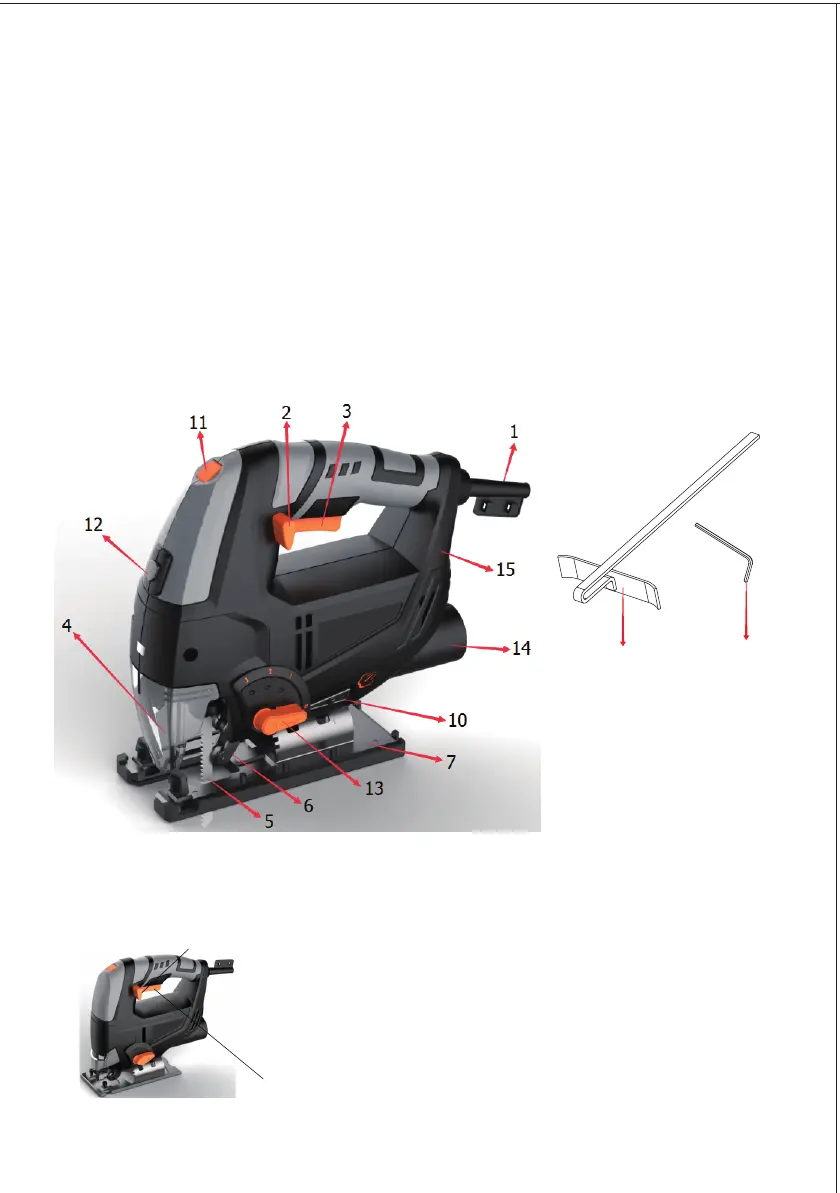

Parts Identification
1 Power cable sleeve
2 Locking button
3 On / Off switch
4 Inspection guard
5 Saw blade
6 Guide roller
7 Adjustable base
8 Hexagon-socket spanner
Operating instructions / Drawings
Power-on indicator
Connect the plug with power, then the power-on indicator will be light. To show the machine is power on.
Starting up (Fig.1)
Instant response operation
Switching on: Press the On/Off switch
Switching off: Release the On / Off switch
Continuous operation
Switching on: Press the On / Off switch and depress the locking button.
Switching off: Press the On / Off switch and release
On/Off switch
Locking button
9 Parallel guide
10 Blow button
11 Speed adjusting knob
12 On/off trigger for LED light
13 Pendulum adjustment button
14 Dust extractor socket
15 Housing
Fig.1
03
9 8
