. Installation
Die Installationsarbeiten müssen von qualifiziertem
Personal durchgeführt werden, das den Standort auswählt
und prüft, ob die Rohre (Lufteinlass und -auslass) und das
elektrische System geeignet sind.
.Montage
Überprüfen Sie bei der Wandbefestigung, ob die
Klemme durch geeignete Stecker fest sitzt.
Berücksichtigen Sie bei der Installation sowohl das
Gewicht als auch das Staubgewicht.
Lassen Sie außerdem etwas Platz, um den
Staubbehälter leicht auszuhaken und die Filterpatrone
zu reinigen.
Verwenden Sie geeignete Manschetten, um die Rohre
anzuschließen, um Effizienzverluste in der
Saugvorrichtung zu vermeiden.

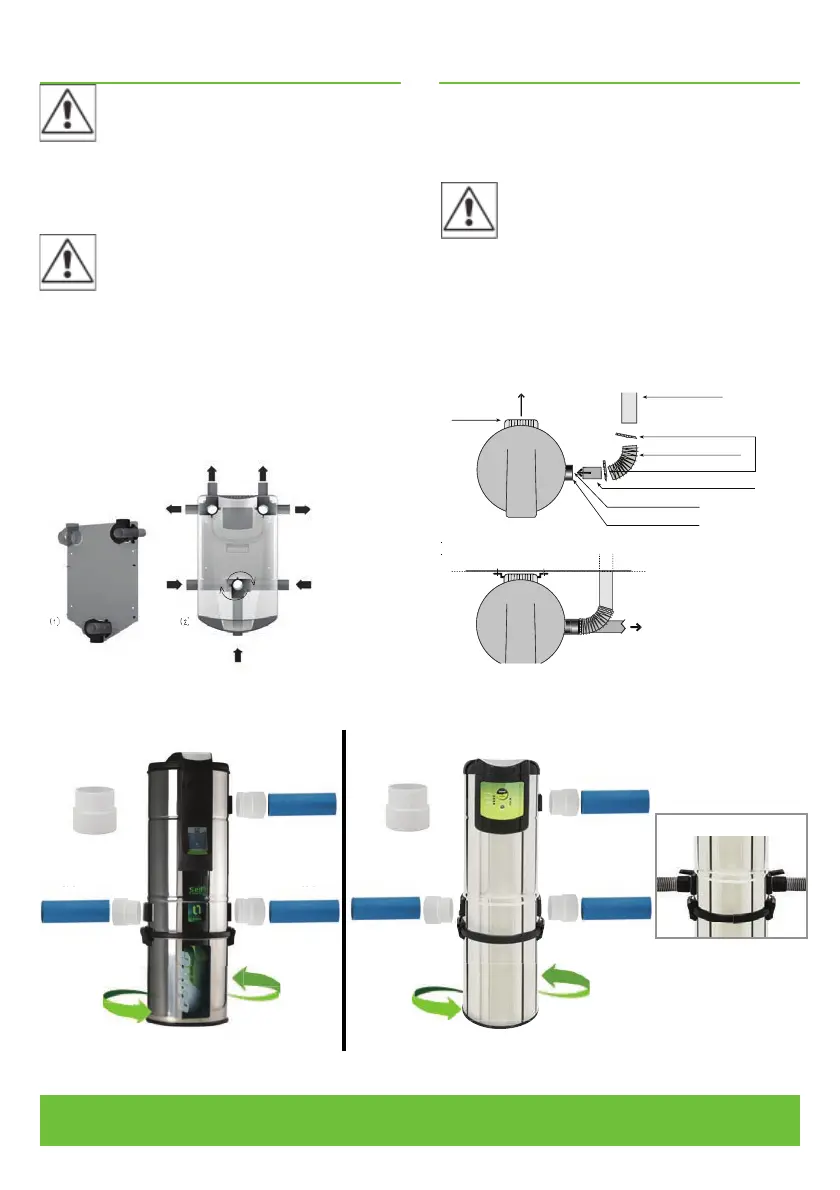

. installing
Installing operations must be carried out by qualified
personnel, that will choose the location and check
whether the pipes (air intake and exhaust) and the electric
system are suitable.
.fixing
For wall fixing, check that the clamp is steadily attached
through suitable plugs. When installing, please consider
both the CSD weight and the dust weight.
Also, allow some space in order to easily unhook the dust
tank and clean the filtering cartridge.
Use suitable cuffs to connect to the pipes in order to avoid
loss of efficiency in the suction device.
8
ROHRSYSTEM
FLEXSCHLAUCH
(FALLS ERFORDERLICH)
SCHELLE
(FALLS ERFORDERLICH)
VACUUMROHR Ø 50-50,2 mm
(schneiden Sie 8/10 cm Vacuumrohr)
SAUGLEITUNG (UNTEN)
ABLUFTLEITUNG
WAND-
HALTERUNG
ABLUFTLEITUNG (OBEN)
(
1
)
(
2
)
(1) OUT
45
RACCORDERIA E TUBAZIONI / PIPINGS AND FITTINGS RB073 Curva 90° lunga F/F Sweep long elbow 90° F/F
RB078 Derivazione a Y 90° 90° sweep tee
RB070 Curva 45° M/F Elbow 45° M/F
RB074 Curva 90° corta Short elbow 90° F/F
RB075 Manicotto M/M Spigot coupling
RB086 Adattatore 2” - 50 mm. Pipe adapter 2” - 50 mm. RB079 Derivazione a Y 3 vie 45° double way
RB071 Curva 45° F/F Elbow 45° M/F
RB081 Tappo di chiusura Pipe cap
RB072 Curva 90° lunga M/F Sweep long elbow 90° M/F
RB077 Derivazione Y 45° 45° single way shunt
RB076 Manicotto F/F Stop coupling
TB050-2 Tubo bianco 2’’ SP. MM 1,4 BARRE 115cm Pipe (1,15 m.)
45
RACCORDERIA E TUBAZIONI / PIPINGS AND FITTINGS RB073 Curva 90° lunga F/F Sweep long elbow 90° F/F
RB078 Derivazione a Y 90° 90° sweep tee
RB070 Curva 45° M/F Elbow 45° M/F
RB074 Curva 90° corta Short elbow 90° F/F
RB075 Manicotto M/M Spigot coupling
RB086 Adattatore 2” - 50 mm. Pipe adapter 2” - 50 mm. RB079 Derivazione a Y 3 vie 45° double way
RB071 Curva 45° F/F Elbow 45° M/F
RB081 Tappo di chiusura Pipe cap
RB072 Curva 90° lunga M/F Sweep long elbow 90° M/F
RB077 Derivazione Y 45° 45° single way shunt
RB076 Manicotto F/F Stop coupling
TB050-2 Tubo bianco 2’’ SP. MM 1,4 BARRE 115cm Pipe (1,15 m.)
CLOSE
45
RACCORDERIA E TUBAZIONI / PIPINGS AND FITTINGS
RB073
Curva 90° lunga F/F
Sweep long elbow 90° F/F
RB078
Derivazione a Y 90°
90° sweep tee
RB070
Curva 45° M/F
Elbow 45° M/F
RB074
Curva 90° corta
Short elbow 90° F/F
RB075
Manicotto M/M
Spigot coupling
RB086
Adattatore 2” - 50 mm.
Pipe adapter 2” - 50 mm.
RB079
Derivazione a Y 3 vie
45° double way
RB071
Curva 45° F/F
Elbow 45° M/F
RB081
Tappo di chiusura
Pipe cap
RB072
Curva 90° lunga M/F
Sweep long elbow 90° M/F
RB077
Derivazione Y 45°
45° single way shunt
RB076
Manicotto F/F
Stop coupling
TB050-2
Tubo bianco 2’’ SP. MM 1,4 BARRE 115cm
Pipe (1,15 m.)
45
RACCORDERIA E TUBAZIONI / PIPINGS AND FITTINGS RB073 Curva 90° lunga F/F Sweep long elbow 90° F/F
RB078 Derivazione a Y 90° 90° sweep tee
RB070 Curva 45° M/F Elbow 45° M/F
RB074 Curva 90° corta Short elbow 90° F/F
RB075 Manicotto M/M Spigot coupling
RB086 Adattatore 2” - 50 mm. Pipe adapter 2” - 50 mm. RB079 Derivazione a Y 3 vie 45° double way
RB071 Curva 45° F/F Elbow 45° M/F
RB081 Tappo di chiusura Pipe cap
RB072 Curva 90° lunga M/F Sweep long elbow 90° M/F
RB077 Derivazione Y 45° 45° single way shunt
RB076 Manicotto F/F Stop coupling
TB050-2 Tubo bianco 2’’ SP. MM 1,4 BARRE 115cm Pipe (1,15 m.)
(1) IN
IN (1)
(1)
OPEN
(1) OUT
45
RACCORDERIA E TUBAZIONI / PIPINGS AND FITTINGS RB073 Curva 90° lunga F/F Sweep long elbow 90° F/F
RB078 Derivazione a Y 90° 90° sweep tee
RB070 Curva 45° M/F Elbow 45° M/F
RB074 Curva 90° corta Short elbow 90° F/F
RB075 Manicotto M/M Spigot coupling
RB086 Adattatore 2” - 50 mm. Pipe adapter 2” - 50 mm. RB079 Derivazione a Y 3 vie 45° double way
RB071 Curva 45° F/F Elbow 45° M/F
RB081 Tappo di chiusura Pipe cap
RB072 Curva 90° lunga M/F Sweep long elbow 90° M/F
RB077 Derivazione Y 45° 45° single way shunt
RB076 Manicotto F/F Stop coupling
TB050-2 Tubo bianco 2’’ SP. MM 1,4 BARRE 115cm Pipe (1,15 m.)
45
RACCORDERIA E TUBAZIONI / PIPINGS AND FITTINGS RB073 Curva 90° lunga F/F Sweep long elbow 90° F/F
RB078 Derivazione a Y 90° 90° sweep tee
RB070 Curva 45° M/F Elbow 45° M/F
RB074 Curva 90° corta Short elbow 90° F/F
RB075 Manicotto M/M Spigot coupling
RB086 Adattatore 2” - 50 mm. Pipe adapter 2” - 50 mm. RB079 Derivazione a Y 3 vie 45° double way
RB071 Curva 45° F/F Elbow 45° M/F
RB081 Tappo di chiusura Pipe cap
RB072 Curva 90° lunga M/F Sweep long elbow 90° M/F
RB077 Derivazione Y 45° 45° single way shunt
RB076 Manicotto F/F Stop coupling
TB050-2 Tubo bianco 2’’ SP. MM 1,4 BARRE 115cm Pipe (1,15 m.)
CLOSE
45
RACCORDERIA E TUBAZIONI / PIPINGS AND FITTINGS
RB073
Curva 90° lunga F/F
Sweep long elbow 90° F/F
RB078
Derivazione a Y 90°
90° sweep tee
RB070
Curva 45° M/F
Elbow 45° M/F
RB074
Curva 90° corta
Short elbow 90° F/F
RB075
Manicotto M/M
Spigot coupling
RB086
Adattatore 2” - 50 mm.
Pipe adapter 2” - 50 mm.
RB079
Derivazione a Y 3 vie
45° double way
RB071
Curva 45° F/F
Elbow 45° M/F
RB081
Tappo di chiusura
Pipe cap
RB072
Curva 90° lunga M/F
Sweep long elbow 90° M/F
RB077
Derivazione Y 45°
45° single way shunt
RB076
Manicotto F/F
Stop coupling
TB050-2
Tubo bianco 2’’ SP. MM 1,4 BARRE 115cm
Pipe (1,15 m.)
45
RACCORDERIA E TUBAZIONI / PIPINGS AND FITTINGS RB073 Curva 90° lunga F/F Sweep long elbow 90° F/F
RB078 Derivazione a Y 90° 90° sweep tee
RB070 Curva 45° M/F Elbow 45° M/F
RB074 Curva 90° corta Short elbow 90° F/F
RB075 Manicotto M/M Spigot coupling
RB086 Adattatore 2” - 50 mm. Pipe adapter 2” - 50 mm. RB079 Derivazione a Y 3 vie 45° double way
RB071 Curva 45° F/F Elbow 45° M/F
RB081 Tappo di chiusura Pipe cap
RB072 Curva 90° lunga M/F Sweep long elbow 90° M/F
RB077 Derivazione Y 45° 45° single way shunt
RB076 Manicotto F/F Stop coupling
TB050-2 Tubo bianco 2’’ SP. MM 1,4 BARRE 115cm Pipe (1,15 m.)
(1) IN
IN (1)
(1)
(1) IN
IN (1)
OPEN
12
CE07
CONFIGURAZIONE CENTRALE / CONFIGURATION OF THE UNIT
CENTRAL VACUUM CLEANERS - HOME
REVERSIBILE
REVERSIBLE
PRESA A BORDO
INLET ON BOARD
DUAL CYCLONE
DUAL CYCLONE
ORDINARE / ORDER: CF021 + CY001 STANDARD CF021
SELF CLEANING E SACCO FINLTRANTE*
SELF CLEANING AND FILTER BAG
CARTUCCIA E SACCO FILTRANTE
CARTRIDGE FILTER AND FILTER BAG
SISTEMI DI FILTRAZIONE ALTERNATIVO / ALTERNATIVE FILTRATION SYSTEM
12
CE07
CONFIGURAZIONE CENTRALE / CONFIGURATION OF THE UNIT
CENTRAL VACUUM CLEANERS - HOME
REVERSIBILE
REVERSIBLE
PRESA A BORDO
INLET ON BOARD
DUAL CYCLONE
DUAL CYCLONE
ORDINARE / ORDER: CF021 + CY001 STANDARD CF021
SELF CLEANING E SACCO FINLTRANTE*
SELF CLEANING AND FILTER BAG
CARTUCCIA E SACCO FILTRANTE
CARTRIDGE FILTER AND FILTER BAG
SISTEMI DI FILTRAZIONE ALTERNATIVO / ALTERNATIVE FILTRATION SYSTEM
SAUGDOSE ON
BOARD
INLET ON BOARD
