Section 15 00-02-0831

2013-03-21 - 5 -

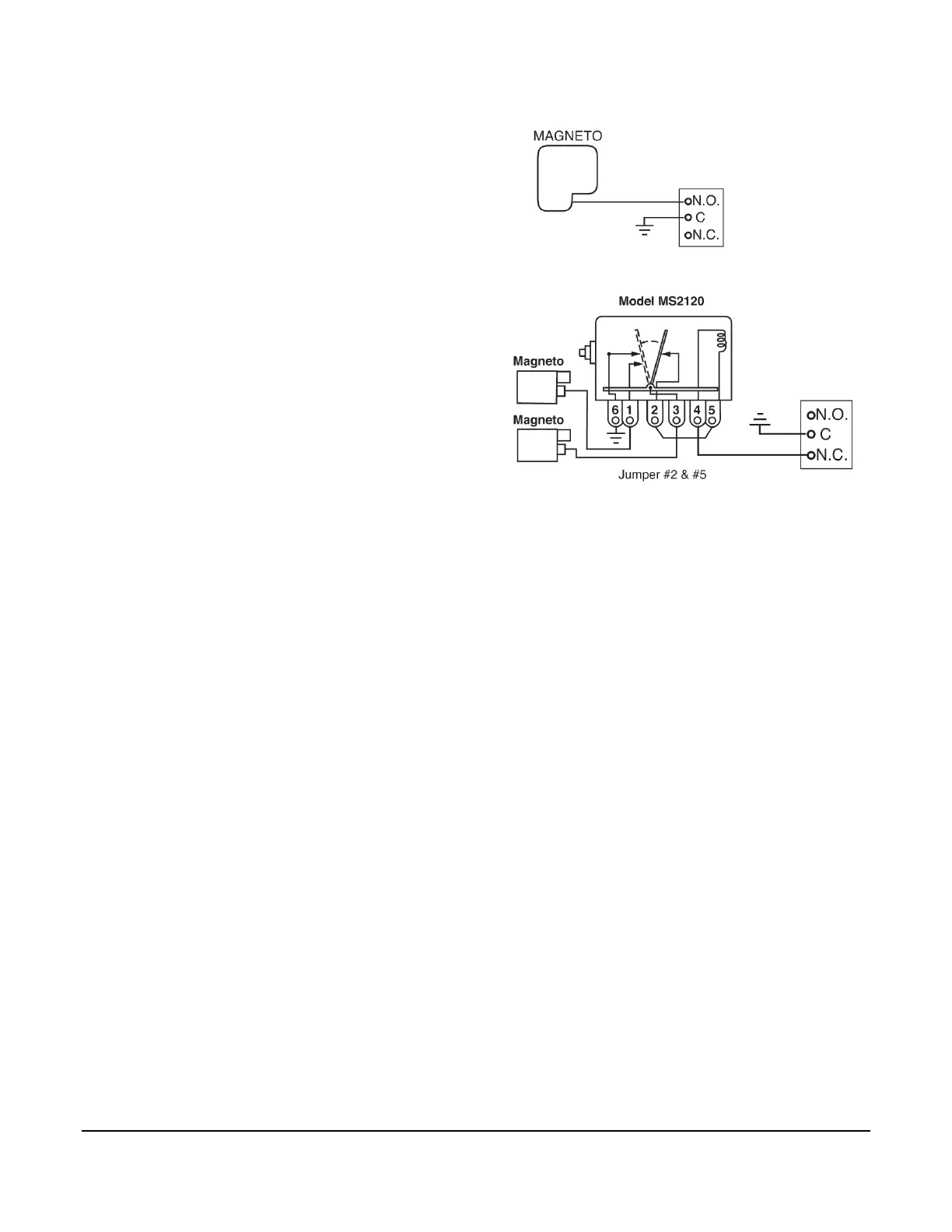

Single Magneto Shutdown –

Wiring of magneto to Normally

Open (NO) switch terminal shuts

engine down at a pre-determined

high level (Shown at right). Wire

to Normally Closed (NC) terminal

to shutdown on low level.

Dual Magneto Shutdown –

Shutdown dual magneto engines

using a Murphy MS2120

Magnetic Switch. Diagram at

right shows hookup for low-level

shutdown. Wiring changes and

mounting locations are

necessary for high-level

shutdowns.
