Section 15 00-02-0831
2013-03-21 - 4 -

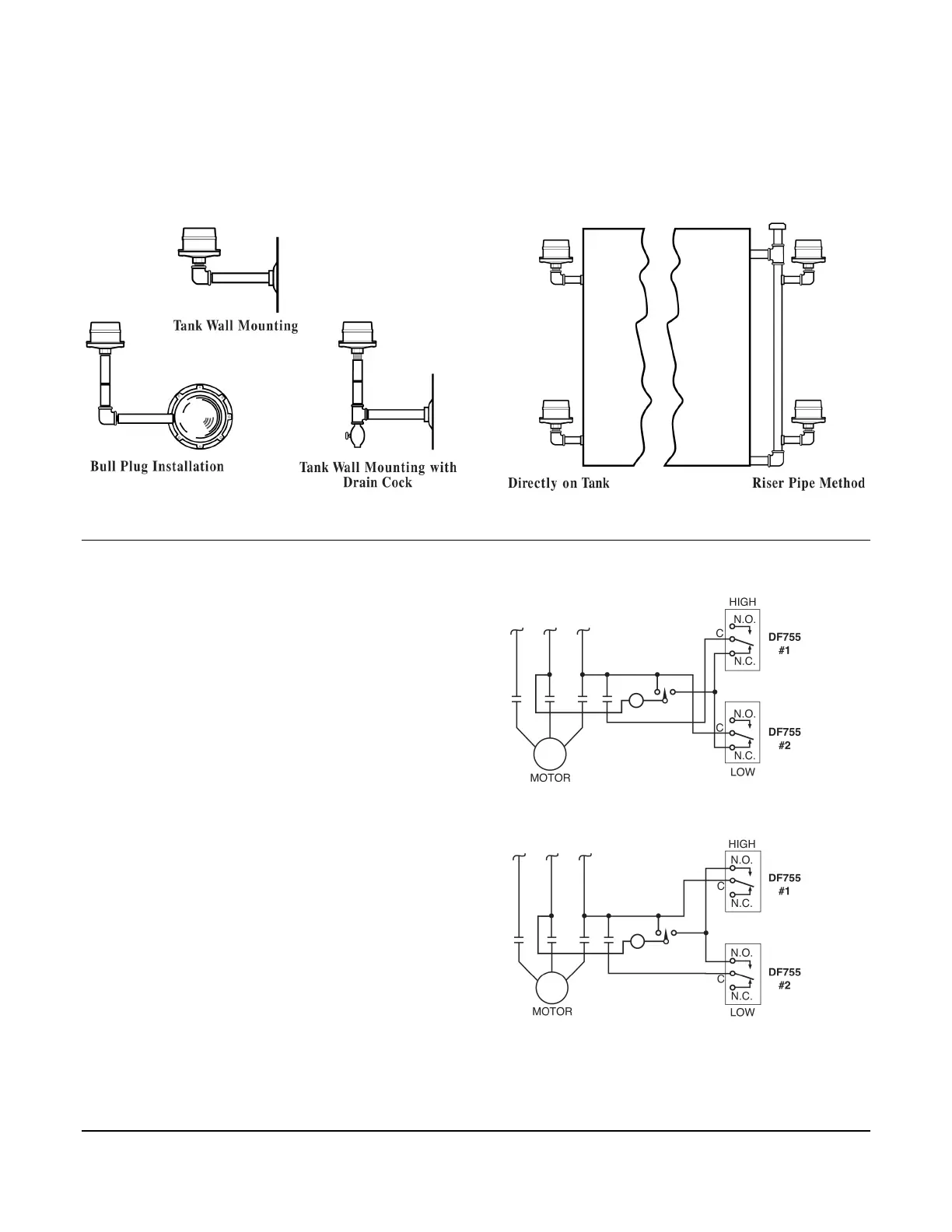

Typical Tank Mounting
The following graphics show different methods of mounting DF755 switches in tank
applications.
Typical Wiring Diagrams
Presented as an assist to wiring typical DF Series level switches.
Starts at Low Level, Stops at
High – Start motor when pre-
determined low level is reached
and stop when high level is
reached. Keeps tank level within
selected limits. Motor starter is
equipped with Hands Off Auto
(HOA).
Starts at High Level, Stops at
Low – Start motor when pre-
determined high level is
reached, and stop when low
level is reached. Motor starter
equipped with HOA.
