VII Input and output interface

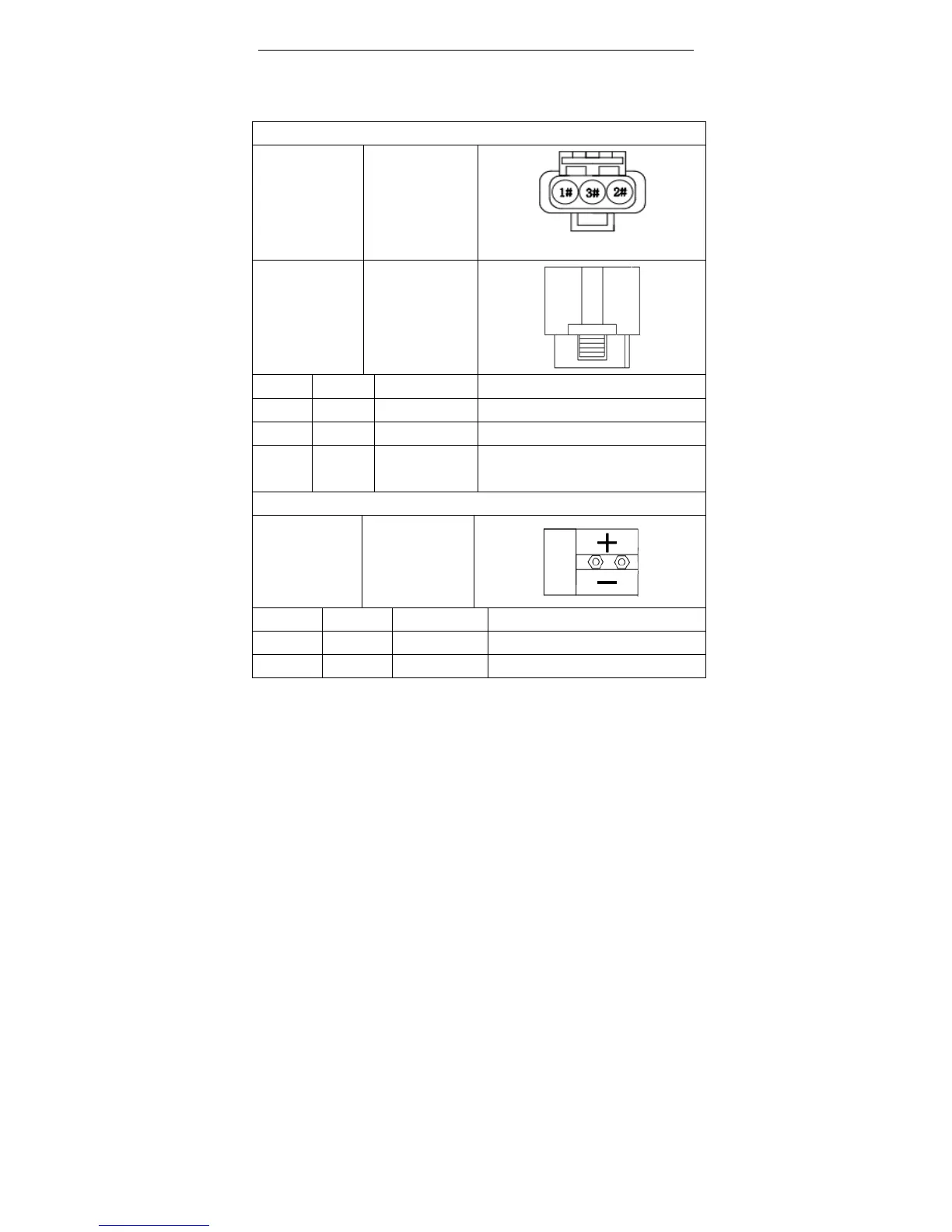

Input Cables
Terminal Model
DJ7031-4.8-11
Direction of view: form the cables to terminal.
Terminal Model for
matching
DJ7031-4.8-21
Needle No. Wire Color Wire core diameter Description
1# brown 2.5 mm
2
L——Live wire
2# blue 2.5 mm
2
N——Neutral wire
3#
Yellow
and green
2.5 mm
2
PE——Protective grounding wire
Output Cables
Terminal Model
SB50
Needle No. Wire Color Wire core diameter Description
+ red 6 mm
2
Output positive pole
- black 6 mm
2
Output negative pole
