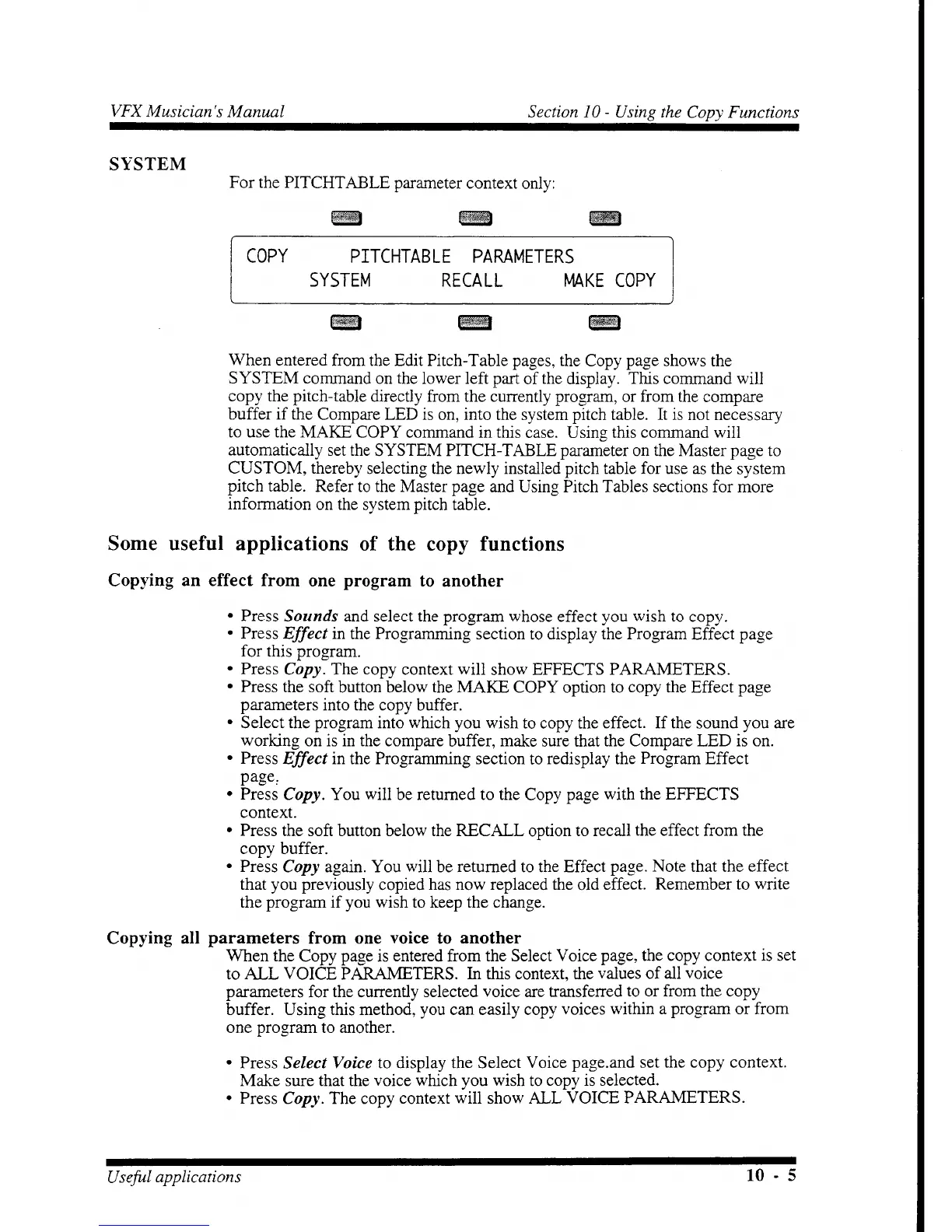

ENSONIQ VFX - Copying an Effect from One Program to Another; Copying All Parameters from One Voice to Another
