05
CAUTION: To select the correct screws (M-A or M-C)
for your monitor, you can try to screw it on your
monitor by hand. The one can screw inside is the
correct screw for your monitor.

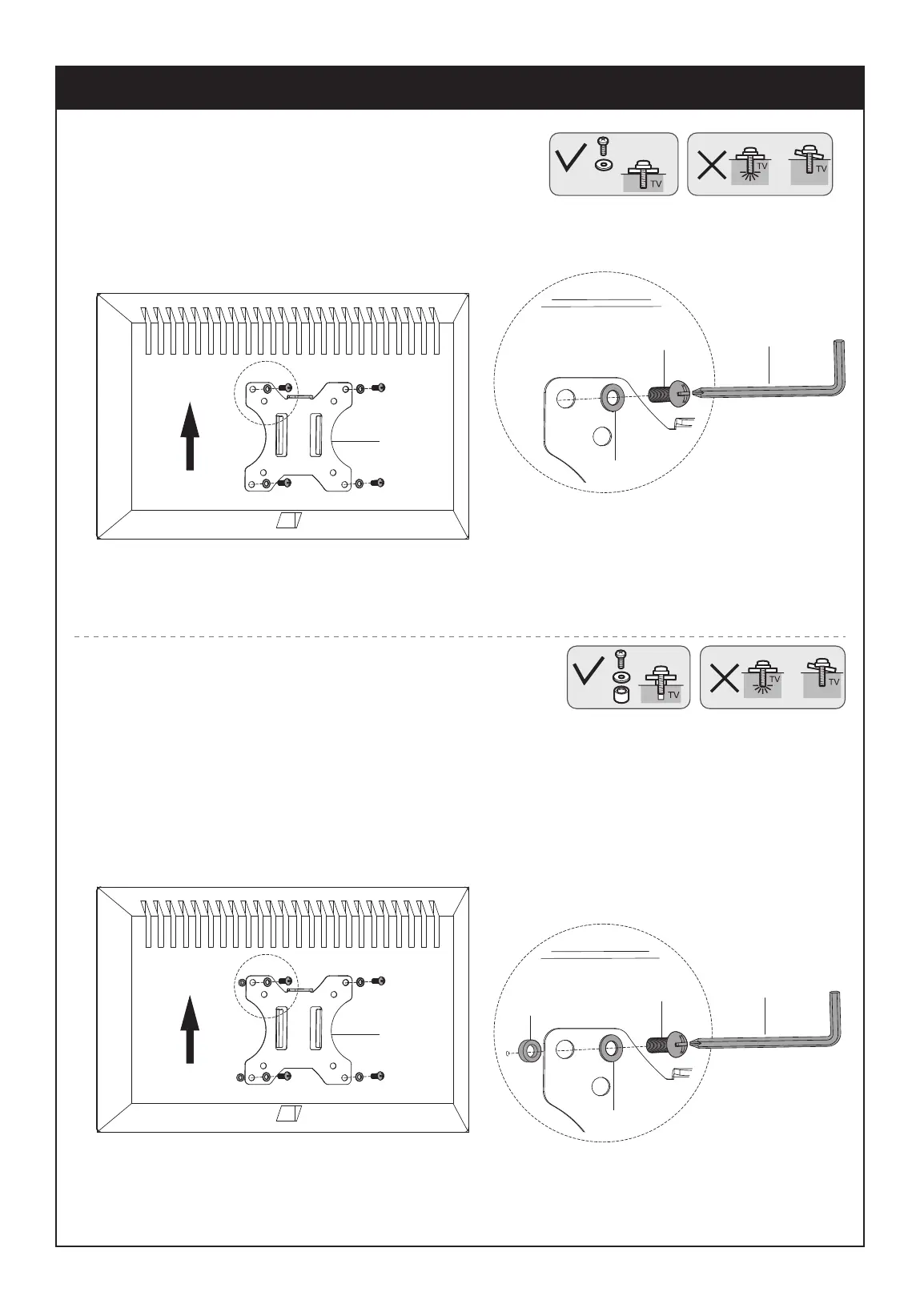

STEP 3 : Attached Monitor
A
A
M-A
M-C
M-E
M
M-B
M-D
M-E
M-F
M
OPTION A: Flat Back Monitor
For flat back monitor, secure VESA plate (A) to monitor
using screws (M-A or M-C) and washers (M-E). Tighten
the screws using 6mm Allen key (M).
OPTION B: Curved Back Monitor
For monitor with curved or recessed back, align spacers (M-F)
with mounting holes in monitor, and secure VESA plate (A) to
monitor using screws (M-B or M-D) and washers (M-E). Tighten
the screws using 6mm Allen key (M).
To Next Page
