10

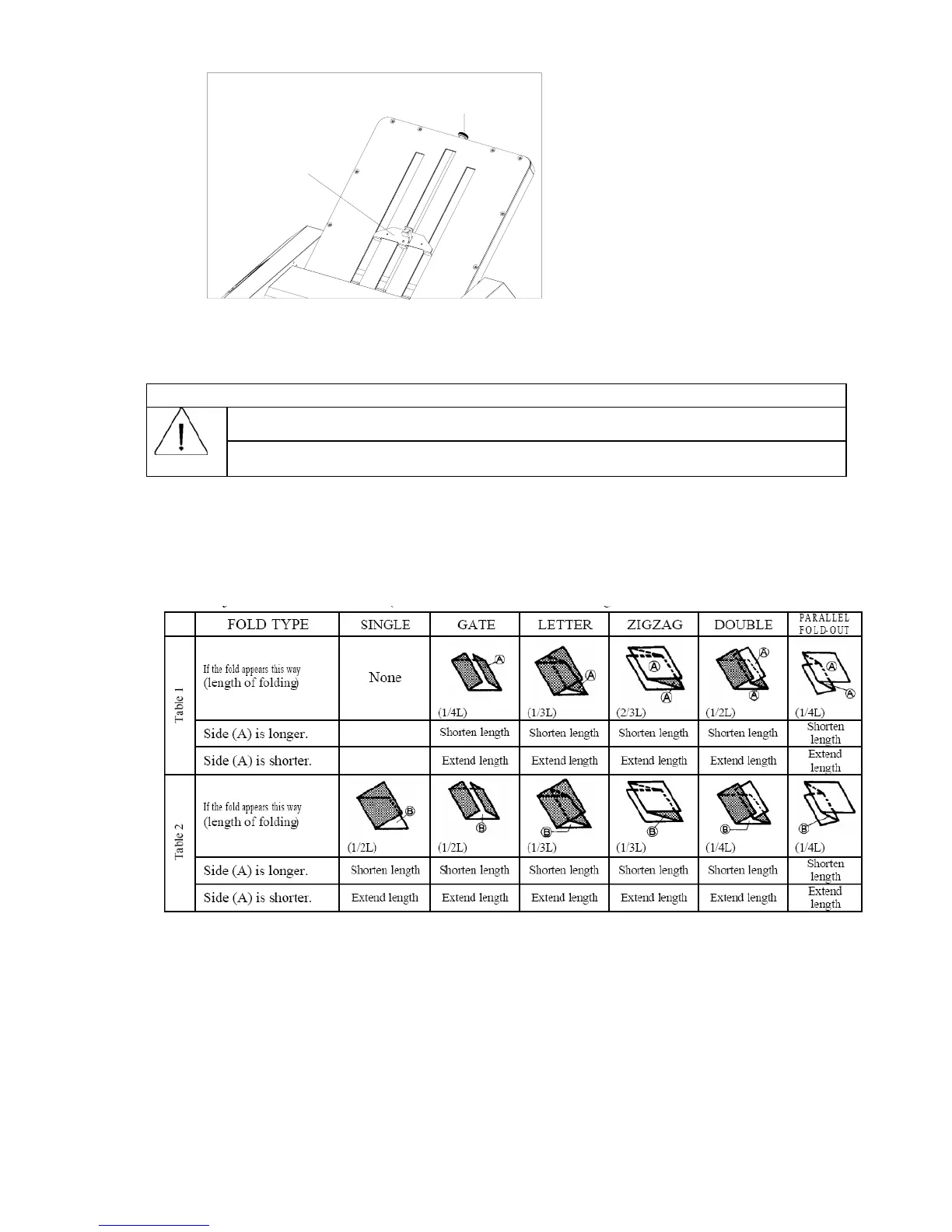

(3) Test Folding
Fold position adjustment knob
Stopper plate
Press the Test key to feed two sheets of paper. Check if the paper has been folded correctly by
examining the second one of the two folded sheets.
* When the fold position is not correct, refer to “Adjustment Paper Fold Position”.
Caution
Never put your hand in any of driving part such as a roller.
It may cause an injury.
Do not bring hair, a tie, or a necklace and so on near any of driving part such as a roller.
It may cause an injury.
(4) Adjusting Paper Fold Position
When the fold position is incorrect, refer to the following chart.
Adjustment Knob Set Chart (to indicate the direction of turning the knob
* The illustration represents the folded paper seen from the operator.
*( ) shows length of folding and L stands for paper length.
(5) Slant Ejection Adjustment
To Next Page
