5
2. Assembly Instructions
1.Unpack all items carefully and check everything that has been included. Some extras may be in small
packages so do not throw anything away until all has been checked.
2. Place the frame structure (one piece) on soft and clean floor and ensure that you do not scratch the
frame on a hard surface.

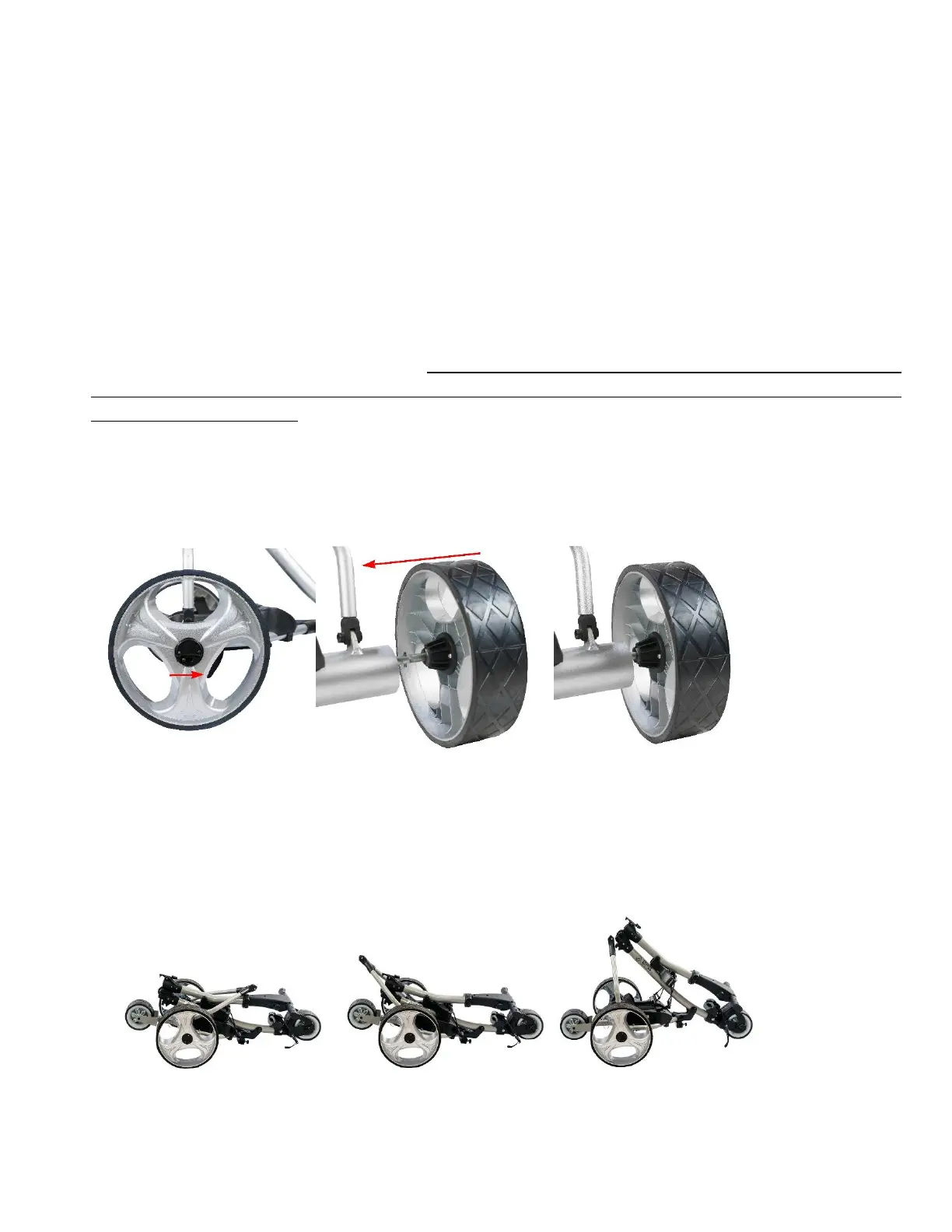

3. Attach the wheels to the axles by pushing the wheel locking button on the outside of the wheel and
inserting the axle extension into the wheel. Make sure to keep the locking button on the outside of the
wheel pushed in during this process, to enable the axle extensions, including the two pins, to be inserted
all the way into the wheel. If not locked in, the wheel will not be connected to the clutch and will not be
propelled!!! Test the lock by trying to pull the wheel out. To disassemble the wheels, proceed in reverse
order. If you feel the wheels are not working, then take them off – switch the power on and if the axle
rotates you will know you have not pushed the wheels all the way in.
4. Erect the frame by unfolding and connecting the main frame tube together at the joint and locking the Y-
shape lower support structure to the main frame with the frame lock mechanism. Proceed in reverse for
folding the caddy.
