Epic CTS - Cable Diagram

9

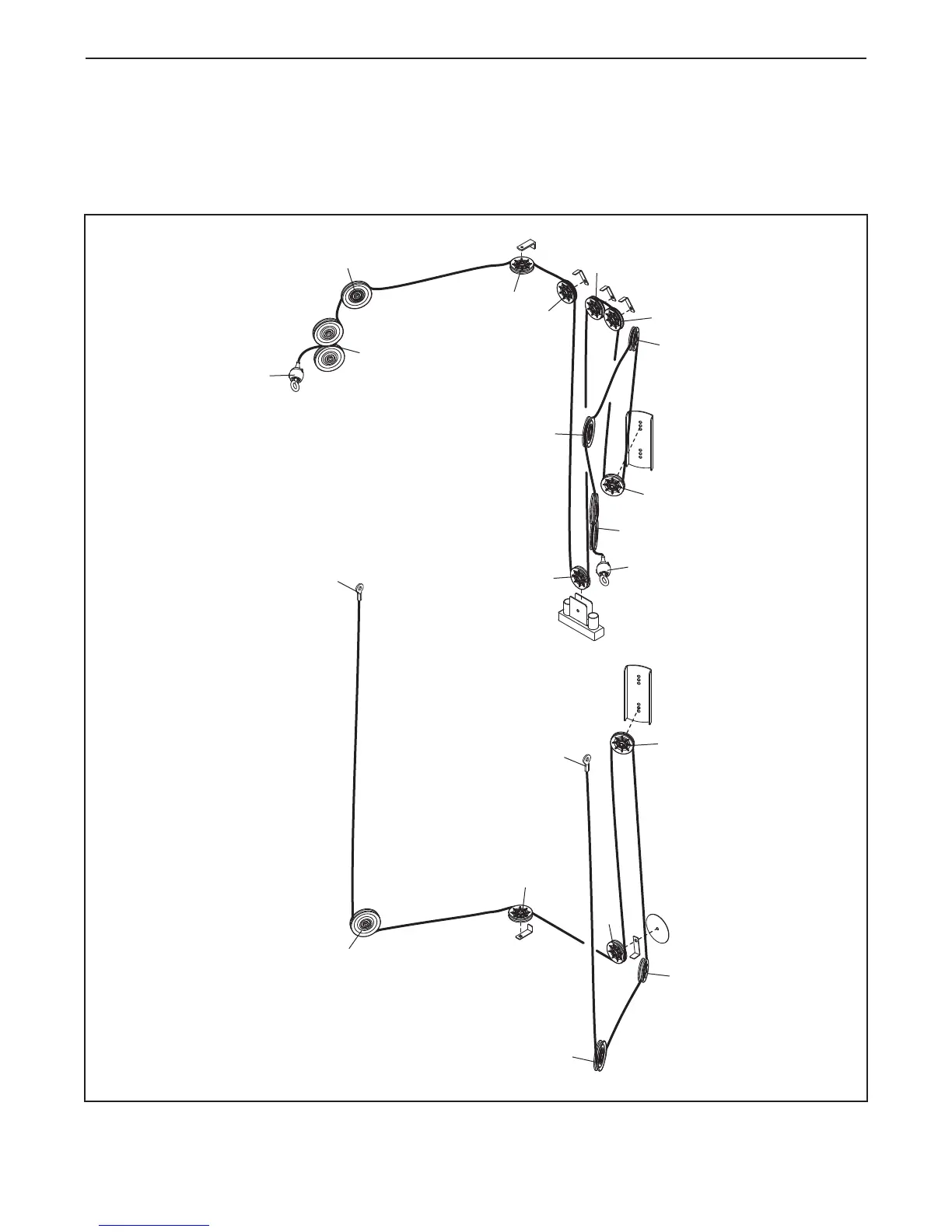

The diagram below shows the proper routing of the cables. The numbers in each drawing show the proper route
of that cable. Use the diagram to make sure that the cables, cable traps, pulleys, and guards are assembled
c
orrectly. If the cables are not assembled correctly, the weight system will not function properly and damage may
occur. Make sure that the cable traps do not touch or bind the cables.
1
2
8
7
3
4
5
High Cable (38)
Length: 27 ft. 11 in. (9 m)
Low Cable (74)
Length: 17 ft. 7 in. (5 m)
8
1
6
7
2
3
4
5
10
11
9
6
13
12
CABLE DIAGRAM
