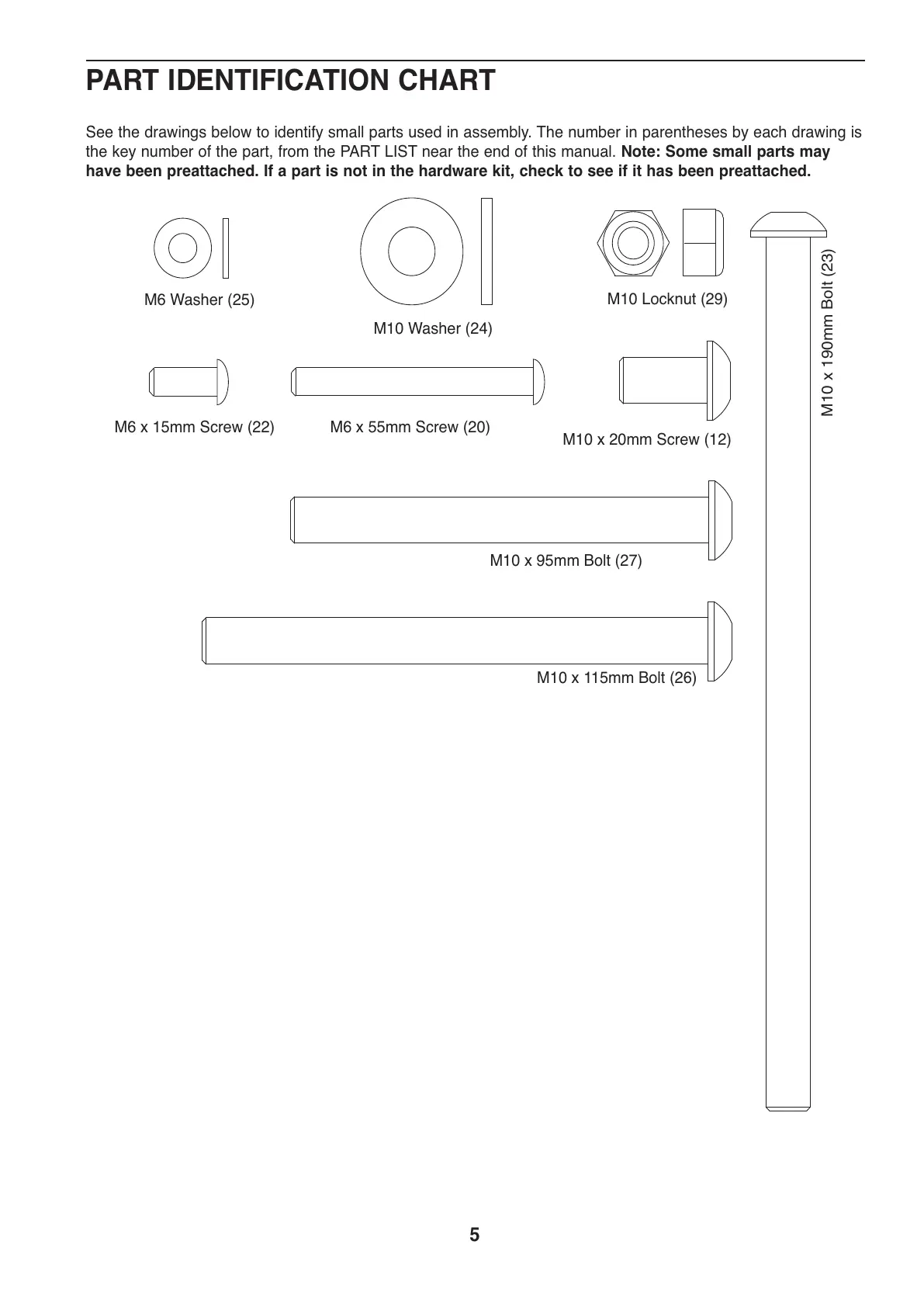

PART IDENTIFICATION CHART
S
ee the drawings below to identify small parts used in assembly. The number in parentheses by each drawing is
the key number of the part, from the PART LIST near the end of this manual. Note: Some small parts may
have been preattached. If a part is not in the hardware kit, check to see if it has been preattached.
M10 Locknut (29)
M10 Washer (24)
M10 x 95mm Bolt (27)
M6 Washer (25)
M10 x 20mm Screw (12)
M6 x 15mm Screw (22)
M10 x 115mm Bolt (26)
M10 x 190mm Bolt (23)
M6 x 55mm Screw (20)
