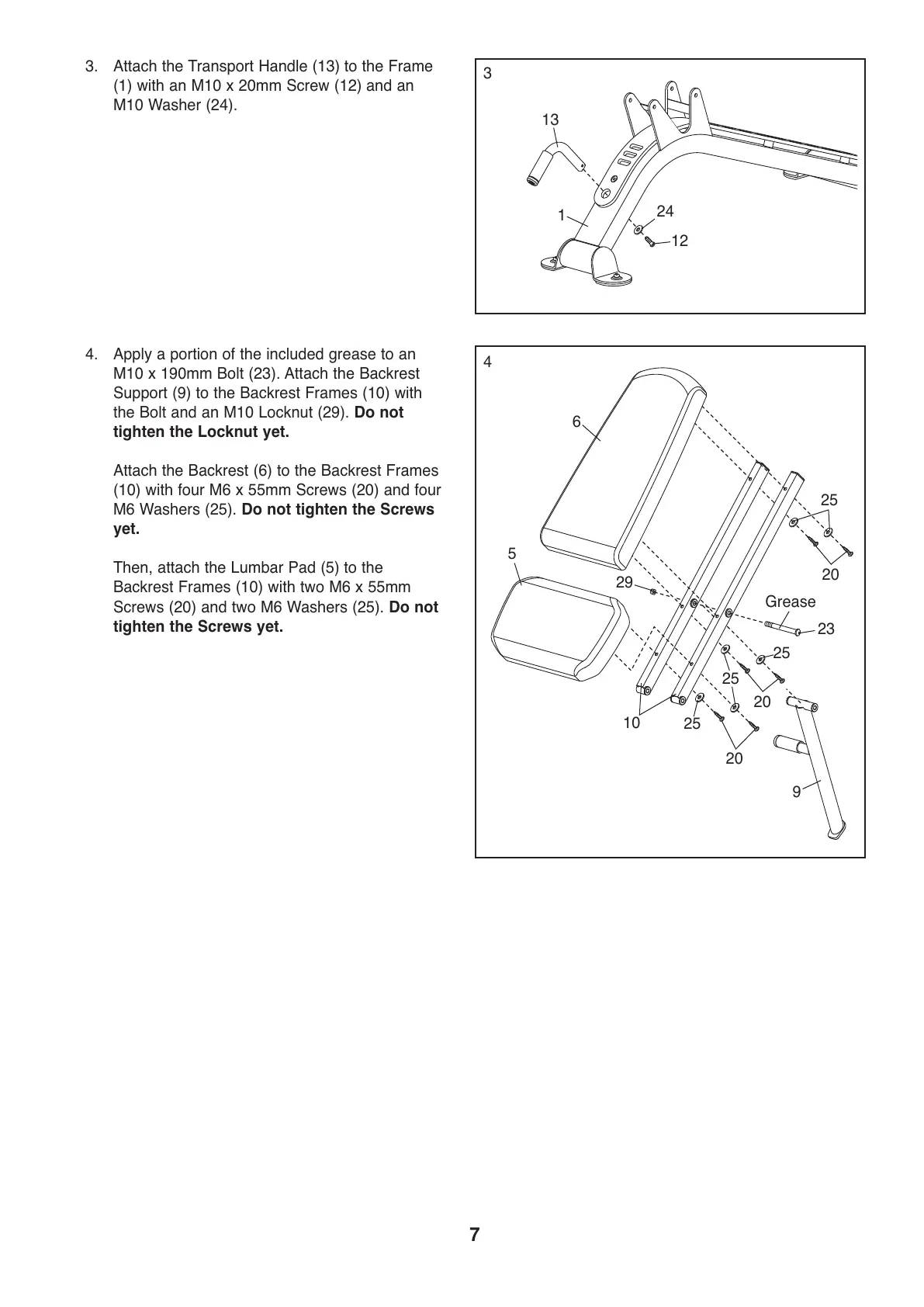

3. Attach the Transport Handle (13) to the Frame
(1) with an M10 x 20mm Screw (12) and an
M10 Washer (24).
3
1
12
24
1
3
4. Apply a portion of the included grease to an
M10 x 190mm Bolt (23). Attach the Backrest
Support (9) to the Backrest Frames (10) with
the Bolt and an M10 Locknut (29). Do not
tighten the Locknut yet.
Attach the Backrest (6) to the Backrest Frames
(10) with four M6 x 55mm Screws (20) and four
M6 Washers (25). Do not tighten the Screws
yet.
Then, attach the Lumbar Pad (5) to the
Backrest Frames (10) with two M6 x 55mm
Screws (20) and two M6 Washers (25). Do not
tighten the Screws yet.
4
6
5
25
25
25
9
29
20
23
10
20
20
25
Grease
