Leveling the Fusion Pro 48 Table
8

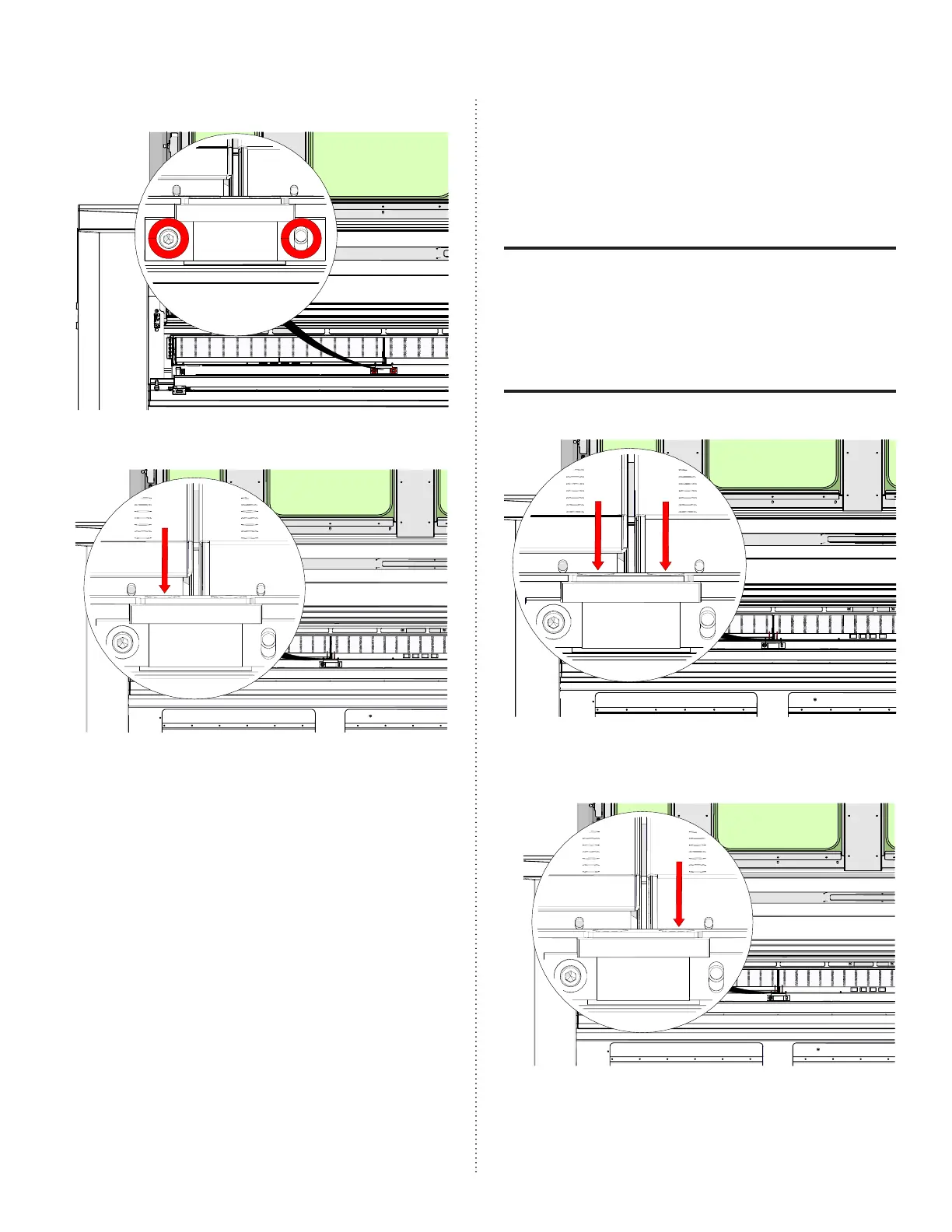

Table Clamp Locking Screws Position 6
Table Level Adjustment Screw Position 6
18. Once the appropriate adjustments
have been made, tighten the table
clamp locking screws.
19. Move the lens carriage between
positions 7 and 8. Observe the focus
gauge to confirm that it remains in
contact with the engraving table.
20. If adjustments are needed to this area
of the table, repeat the table height
adjustment process outlined above to
level positions 5 and 6 using the table
clamp and leveling screws shown
below:
The table adjustment screws in the front
of the engraver work the opposite of the
table adjustment screws in the rear of
the engraver. Tightening the screws will
raise the table and loosening the screws
will lower the table.
Table Clamp Locking Screws Position 7
Table Level Adjustment Screw Position 7
